Tigo TS4 UHD-Core - TAP Placement - Legacy (Pre-Mesh)

TAP PLACEMENT - LEGACY
(
PRE-MESH
)
41

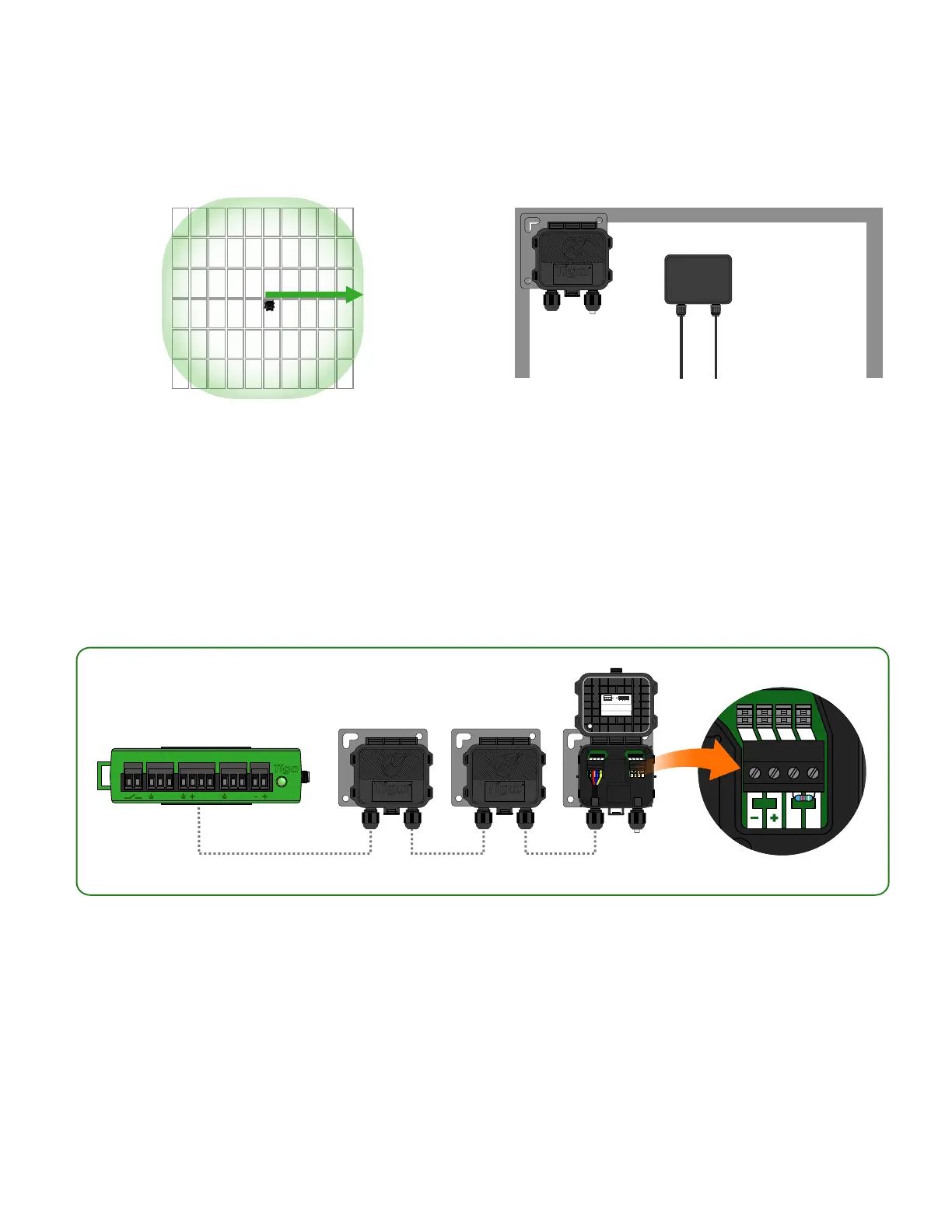

TAP attaches to module frame using
built-in bracket. Mounting holes are also
available in case of frameless modules.
Place TAP near center of array or each
sub-array.
Connect multiple TAP units in series and leave terminating resistor in final TAP only.
Use 4-conductor RS485 (18-22 AWG) cable between TAP and CCA.
access point
access point access point
PWR PWRDATA DATA
Quick connectors:
press wire into terminal
OR
Connector blocks:
use screw terminals
Remove resistor to connect
another Access Point in series.
-
+
B
A
IN OUT
B BA A
PWR DATA
B A
B A B A B A
AUX RS485-1 RS485-2GATEWAY POWER
accesspoint
50ft (15m)
Legacy conguration (same as Gateway):
• 120 TS4 units per TAP
• 360 TS4 units per CCA
• 7 TAPs per CCA
• 50ft (15m) radius with line of sight between TAP & all TS4 units
