Tigo TS4 UHD-Core - TS4-R Installation

TS4-R INSTALLATION

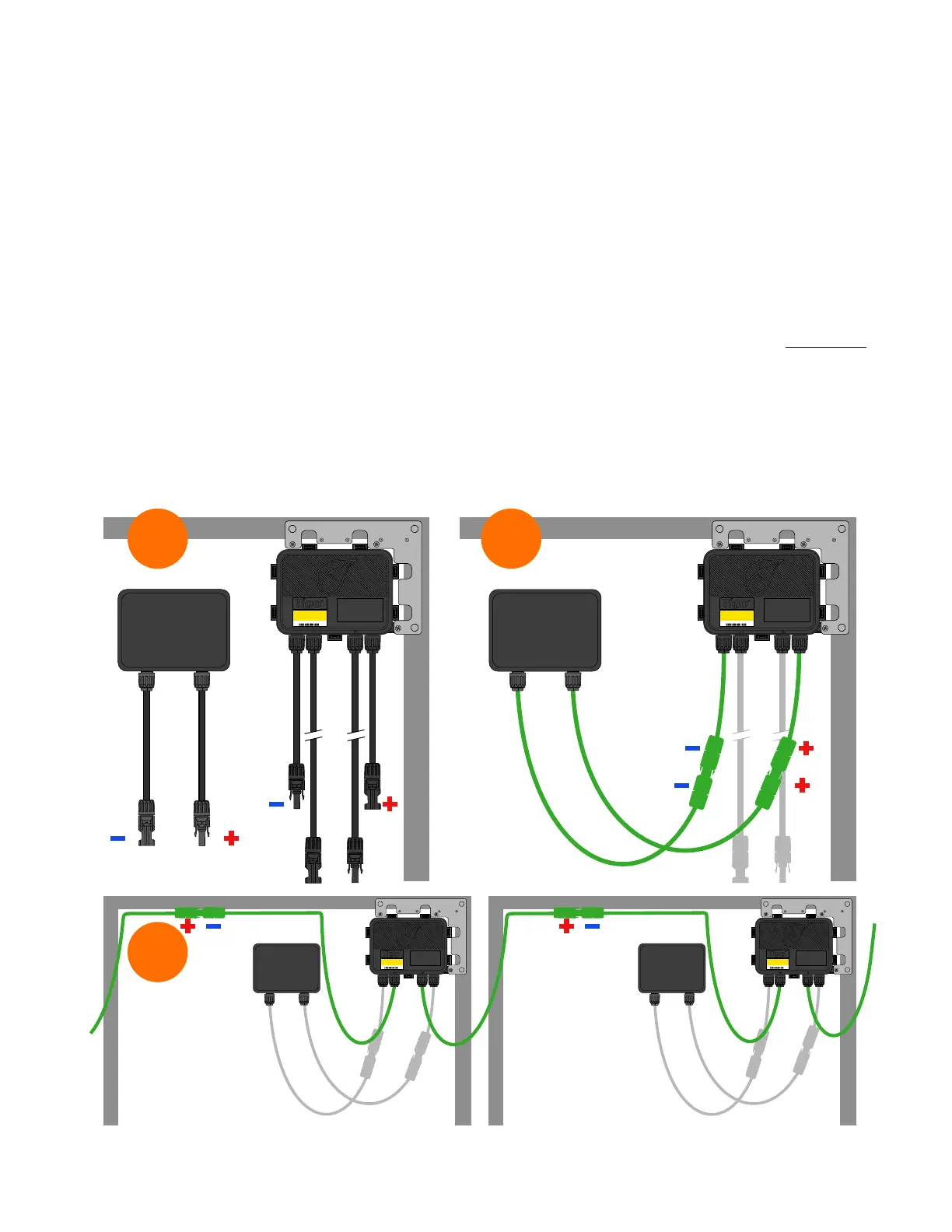

Standard modules can be equipped with TS4-R add-on units as
shown below.
Always connect modules to TS4-R inputs before connecting outputs.
Each TS4-R must have a PV module connected to its inputs before
connecting the outputs of TS4-R units in series.
To disconnect TS4-R from a module, disconnect the TS4-R outputs
from the string before disconnecting the TS4-R inputs from the
module junction box.
14
1
3
2
4 - 123A
TS4-R-O
4 - 123A
TS4-R-O
4 - 123A
TS4-R-O
4 - 123A
TS4-R-O
