34
Date of Origin – 02/24/11
Updated – 02/03/20

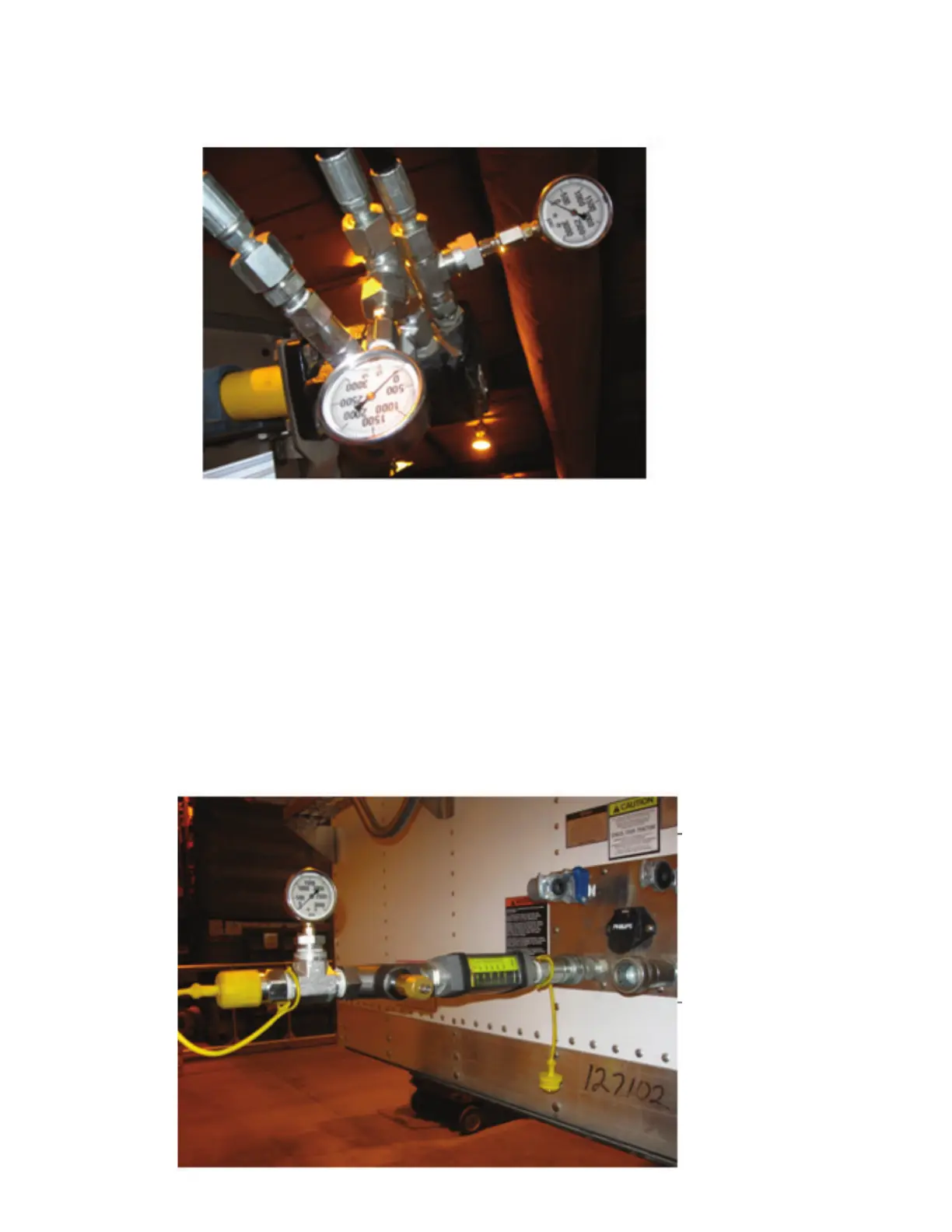

2. Repeat procedure for horizontal conveyor pressure line. Pressure hose is connected to
the bottom port of the hydraulic motor to the lower stainless steel tubing on the horizontal
conveyor. See Photo below for gauge position.
Test Gauges – Incline/Upper Conveyor
1. Disconnect incline conveyor pressure hose from the hydraulic motor using a 1-1/4-inch open
end wrench. Pressure hose is connected to the top port of the hydraulic motor to upper
stainless steel tube on the incline conveyor. Connect the female end of the ¾ -inch JIC test tee
with gauge at the tting on the hydraulic motor. Connect pressure hose end to the male side of
the test tee. Tighten tee tting with a 1-inch open end wrench and hose end with a 1-1/4-inch
open end wrench. Position gauge to be visible and tighten gauge tting with a 9/16-inch open
end wrench.
2. Repeat procedure for incline conveyor return line. Return hose is connected to the bottom port
of the hydraulic motor to the lower stainless steel tubing on the incline conveyor. See Photo
below for gauge position.
