Reassembly /
Maintenance
Start
You will need:
• Scrap piece of wood or cardboard
• Household oil
IMPORTANT: Make sure the battery
pack is removed from the spray gun.

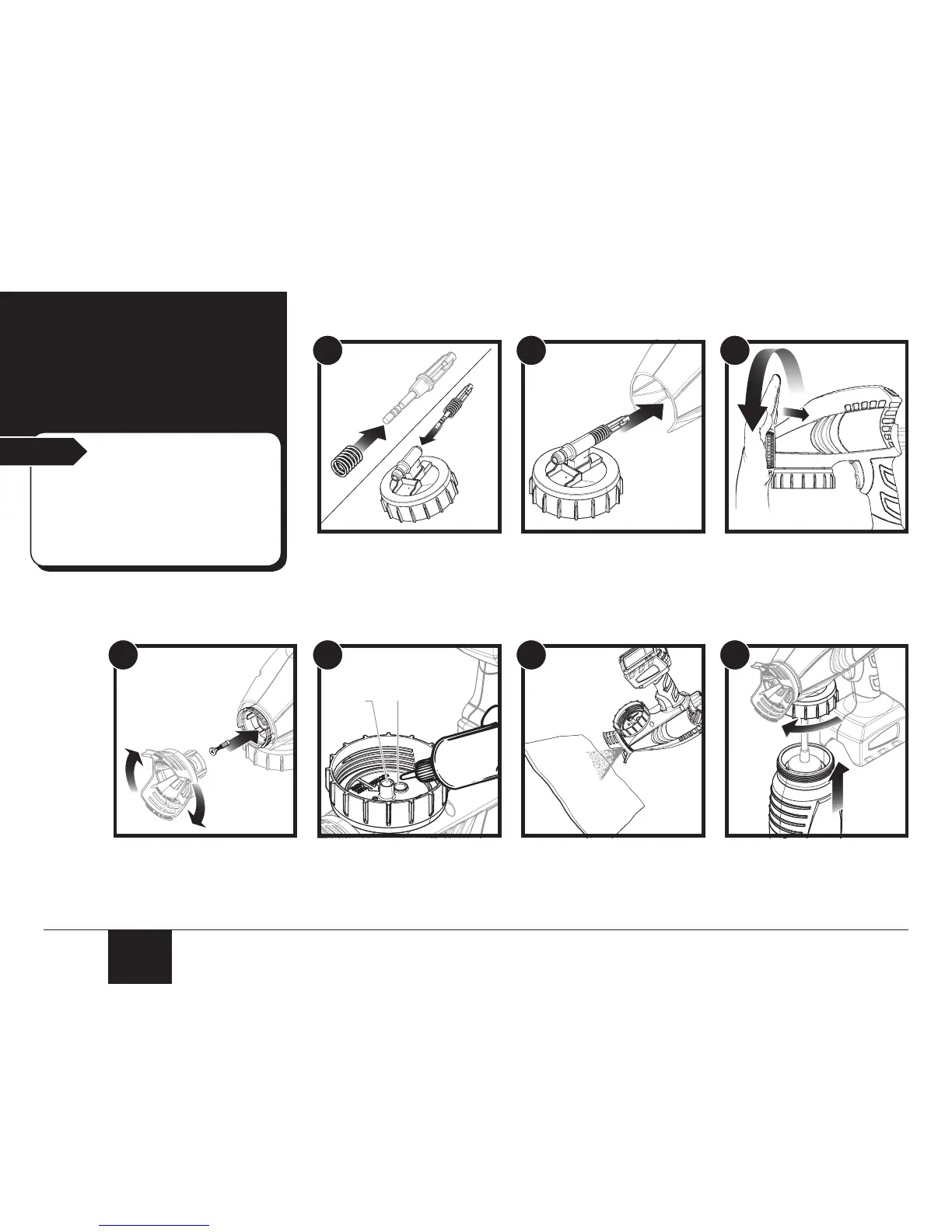

1. Slide the spring onto the front
end of the piston.
Insert the piston into the back
of the pump housing.
5. Turn the sprayer upside-down
while the material container
is removed. Squeeze a small
amount of standard household
oil into both the intake (a) and
return (b) openings on the
pump housing.
4. Insert the atomizer valve into the
front end of the pump housing.
Place the spray tip onto the pump
housing and turn it clockwise until
it is tightened securely.
2. Insert the pump housing
assembly into the front of the
sprayer.
6. Replace the battery pack.
Aim at piece of scrap wood or
cardboard and squeeze the
trigger of the sprayer for 2 to
3 seconds while sprayer is still
inverted.
7. Replace the suction tube.
Replace the material container.
3. Place the locking nut onto the
motor housing. Press in while
turning the locking nut clockwise.
Tighten rmly with the spray tip.
Do not cross-thread the
locking nut. Make certain it
is threaded correctly before
tightening.
1
(a)
(b)
54
2
6
3
7
