Titan RX-Pro - Parts List

8 RX-Pro
GB
Parts list
1
2
3
4
5
6
7
8
9
10
11
12
13
17
18
19
20
21
22
23
28
24
25
27
26
14
15
16
29

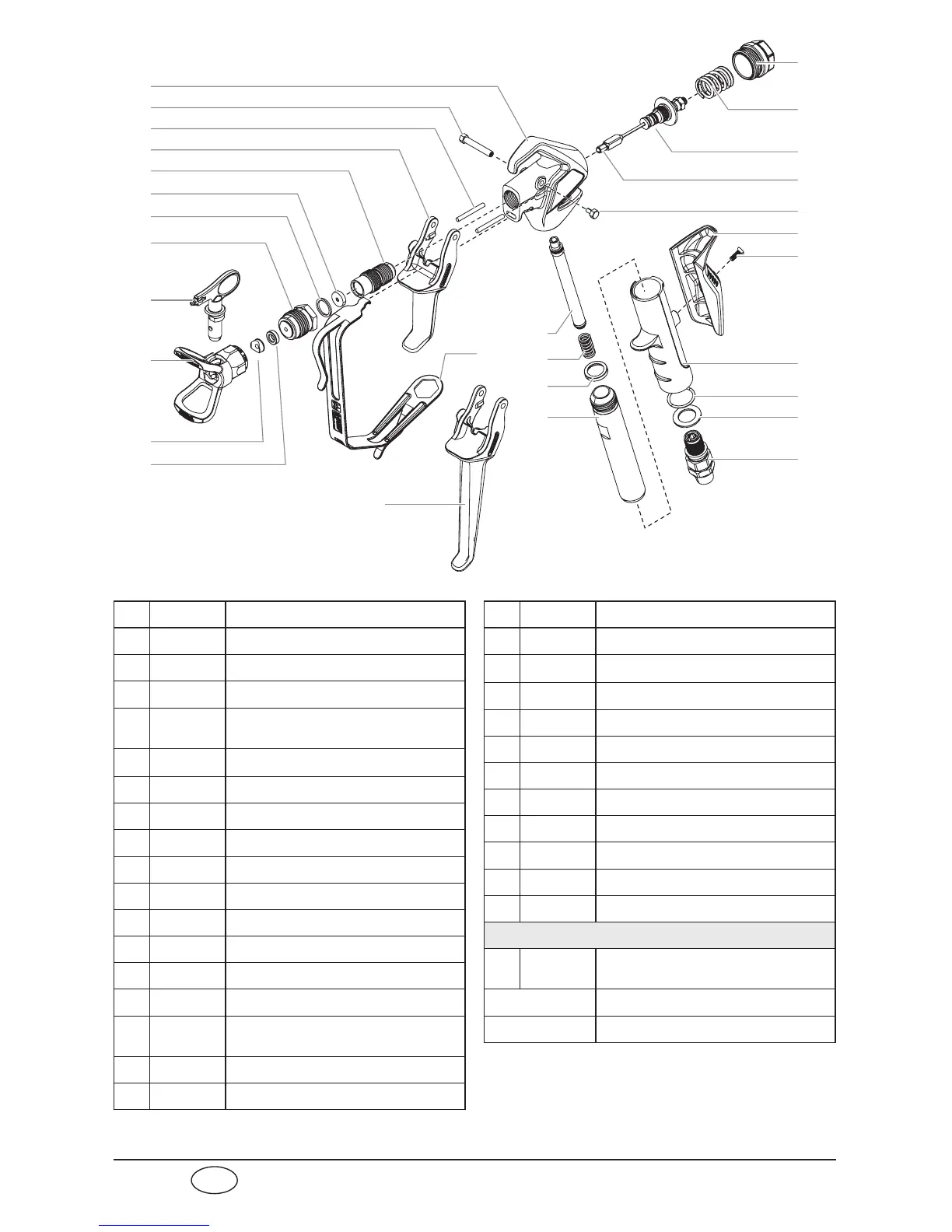

# Part # Description
1 ------ Gun head
2 0538306 Trigger screw, long
3 0538305 Retractor pin (2)
4 0538224 Trigger and lock assembly, 2-nger gun
(includes item 2 and 17)
5 ------ Upper housing
6 594-033 Seat
7 594-006 Diuser o-ring
8 0538322 Diuser, 7/8”
9 662-xxx Tip assembly* (includes items 11-12)
10 0289228 Tip guard, 7/8”
11 0297007 Tip seal
12 651-020 Seal
13 0538323 End cap
14 0538324 Packing spring
15 0538204 Packing seal assembly (includes item
16)
16 0538221 Ball valve (installation tools included)
17 580-513 Trigger screw, short
# Part # Description
18 0538218 Handle grip, medium (includes item 19)
19 9805470 Screw
20 0538315 Handle
21 0538342 O-ring
22 0538337 Washer
23 0538205 Swivel (includes item 21-22)
24 0089958 Filter, medium (2 pack)
25 0296343 Spring
26 560-038 Handle seal
27 0296344 Tube
28 0538307 Trigger guard
29 0538222 Trigger and lock assembly, 4-nger
gun (includes item 2 and 17)
0538217 Small grip kit (includes item 19)
0538219 Large grip kit (includes item 19)
