Back panel buttons/connections

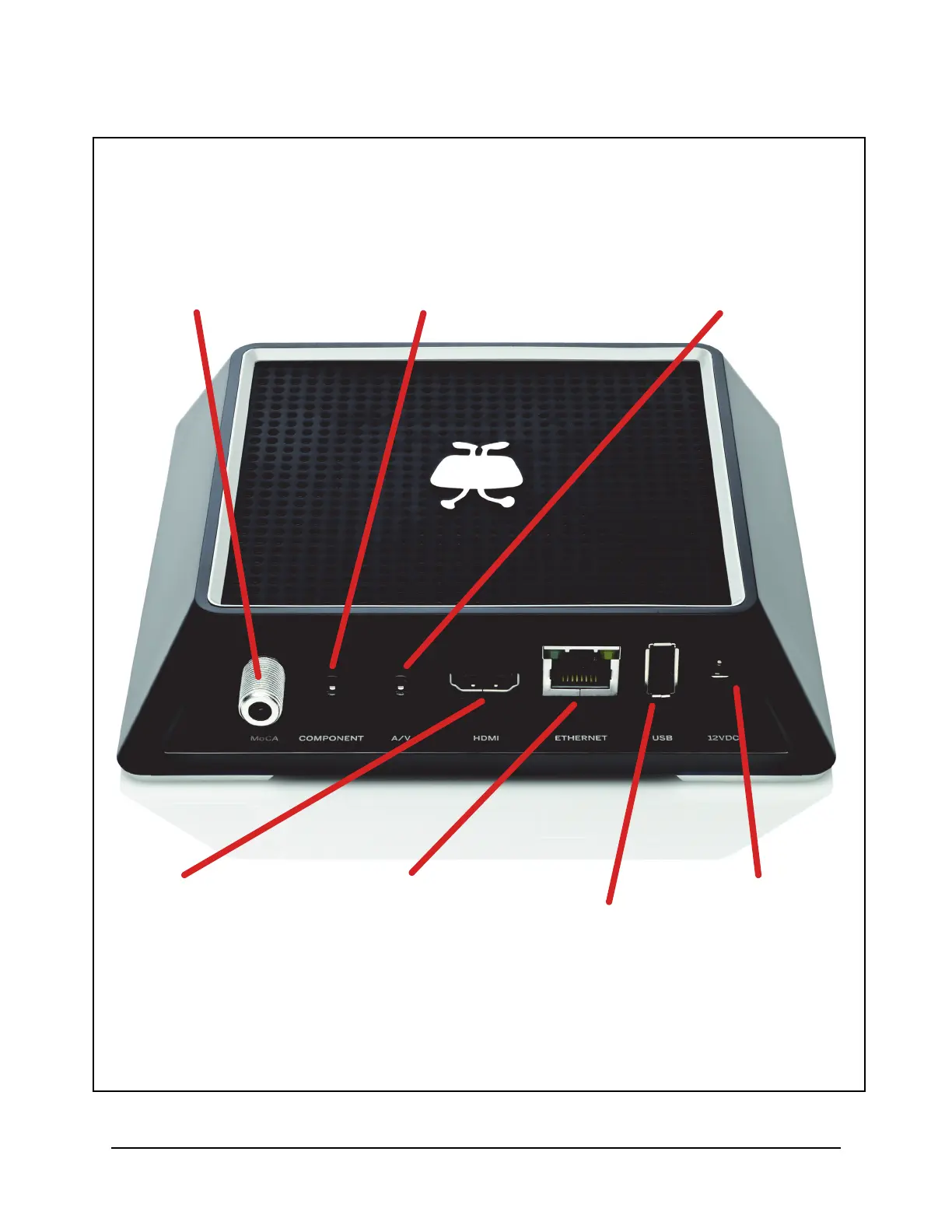

Figure 2–2: TiVo Mini Back Panel
MoCA: Connects TiVo
Mini to your home
MoCA network, if you
are using one.
Connect the coaxial
RF cable coming
from the wall to this
MoCA jack.
A/V (yellow): Connects TiVo Mini to a TV
or A/V system using a
Composite Video
Output b
reakout cable. Composite
Video Output
provides standard
definition picture quality. It does not
provide high definition video. This cable
is required for audio when using
Component cable.
Component (green):
Connects TiVo Mini to a TV or
A/V system using a
Component Video Output
breakout cable. Component
Video Output provides a high
definition picture. Connect a
separate cable for audio.
Ethernet: Connects TiVo Mini to your
home network using Ethernet cable.
Left LED is Link Activity:
Blinking Green = Packet RX/TX
[off otherwise]
Right LED is Link Status:
Green = 10 Mbit full duplex or
100 Mbit half/full
Yellow = Gbit half/full
[off = no link or 10 Mbit half duplex]
HDMI: Connects TiVo
Mini to a TV, A/V
receiver, or home
theater system.
The HDMI port
provides a pure
digital connection for
high definition video
and digital audio all
in one cable.
USB: Can
be used
with the IR
adapter
(see IR
Adapter on
page 22
).
12VDC:
Connects TiVo
Mini to A/C
power.
Important: Use
ONLY TiVo-
supplied power
adapters (see
page 15).

TiVo Mini Specifications

General

Video Output	HDMI
Resolution	Up to 1080p
Remote Control	TiVo Remote
Networking	Ethernet
Compatibility	TiVo DVR
Weight	0.6 lbs
