TiVo Mini Product Specifications
16 TiVo Mini Operator’s Guide v1.0 • TiVo
®
Proprietary and Confidential
Power Adapter SPWR-00023-000 (12W)
Power Adapter SPWR-00023-000 has the following specifications. The label for this
adapter is shown in Figure 2–5.
 Input: 100-120 VAC, 50/60 Hz, 0.4A max inrush,
maximum continuous input power, 18W
 Output: 12V, 1A (12W) max

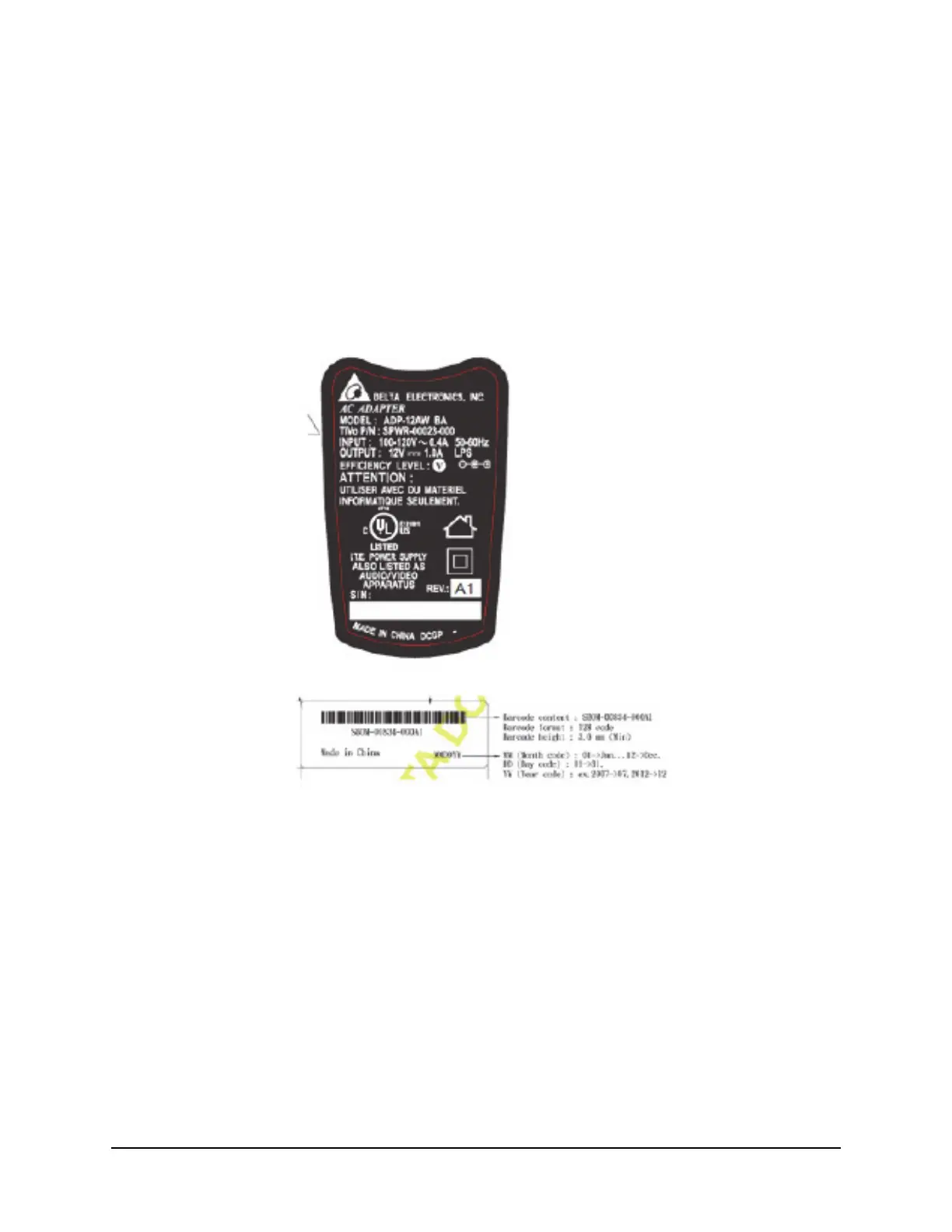

Figure 2–5: Label for Power Adapter SPWR-00023-000 (12W)
