6.4 Connections
The connection ports on the Orion are described in this section. Options depend on the
application and the method of connection.
Port
Description
A
PRT1
B
Reader 1
C
IO 1
D
Power input
E
Status LED
F
MicroSD slot
G
End of line jumper
H
Stacking connector
I
RS485 and kpSensor bus
J
Reader 2
K
IO 2
L
PRT2
H
E
B
C
A
D
H
F
G
PRT1
E
G
F
H
L
K
J
I
H
PRT2

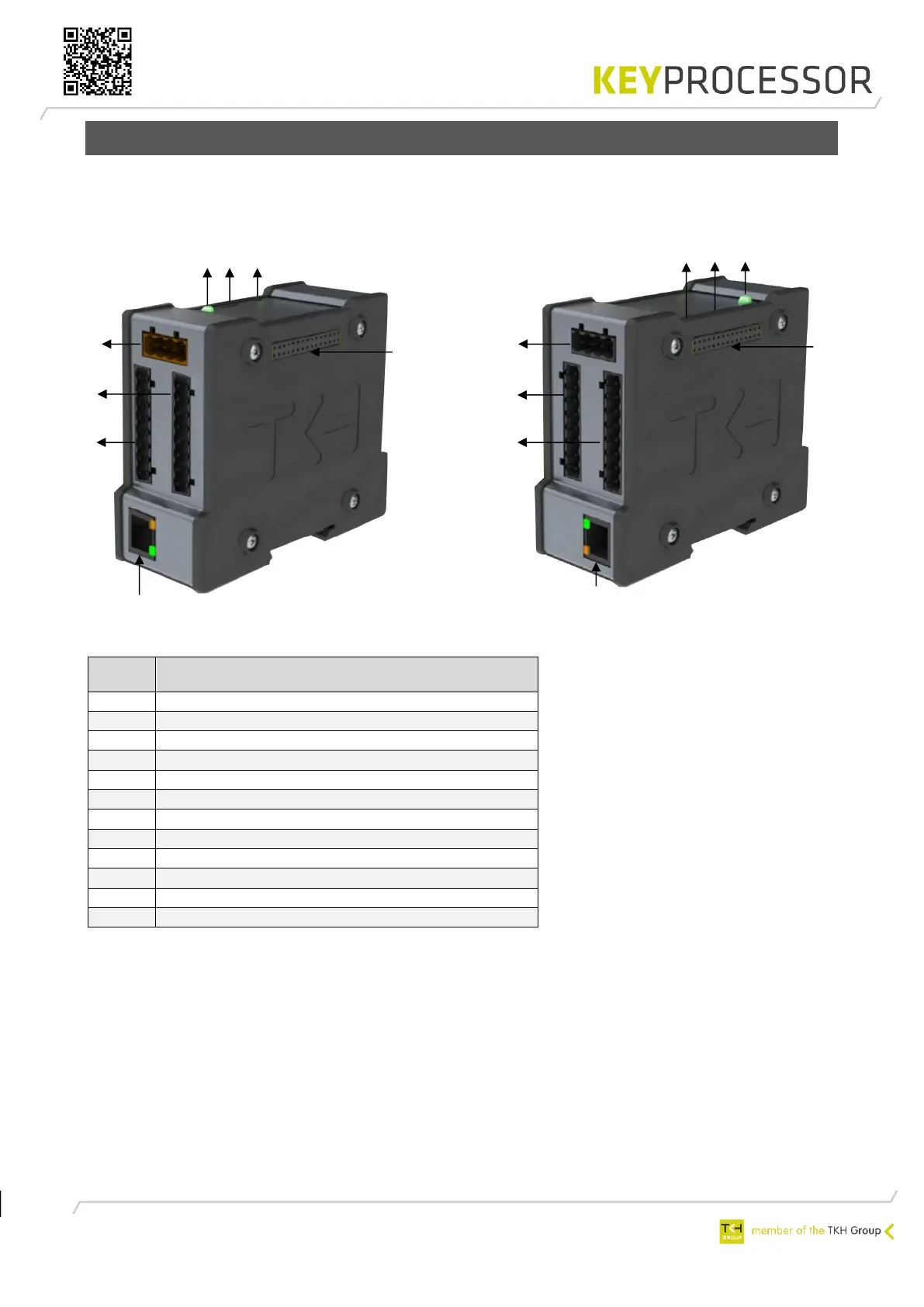

Figure 9: Orion
connections rear
Figure 8: Orion
connections front
