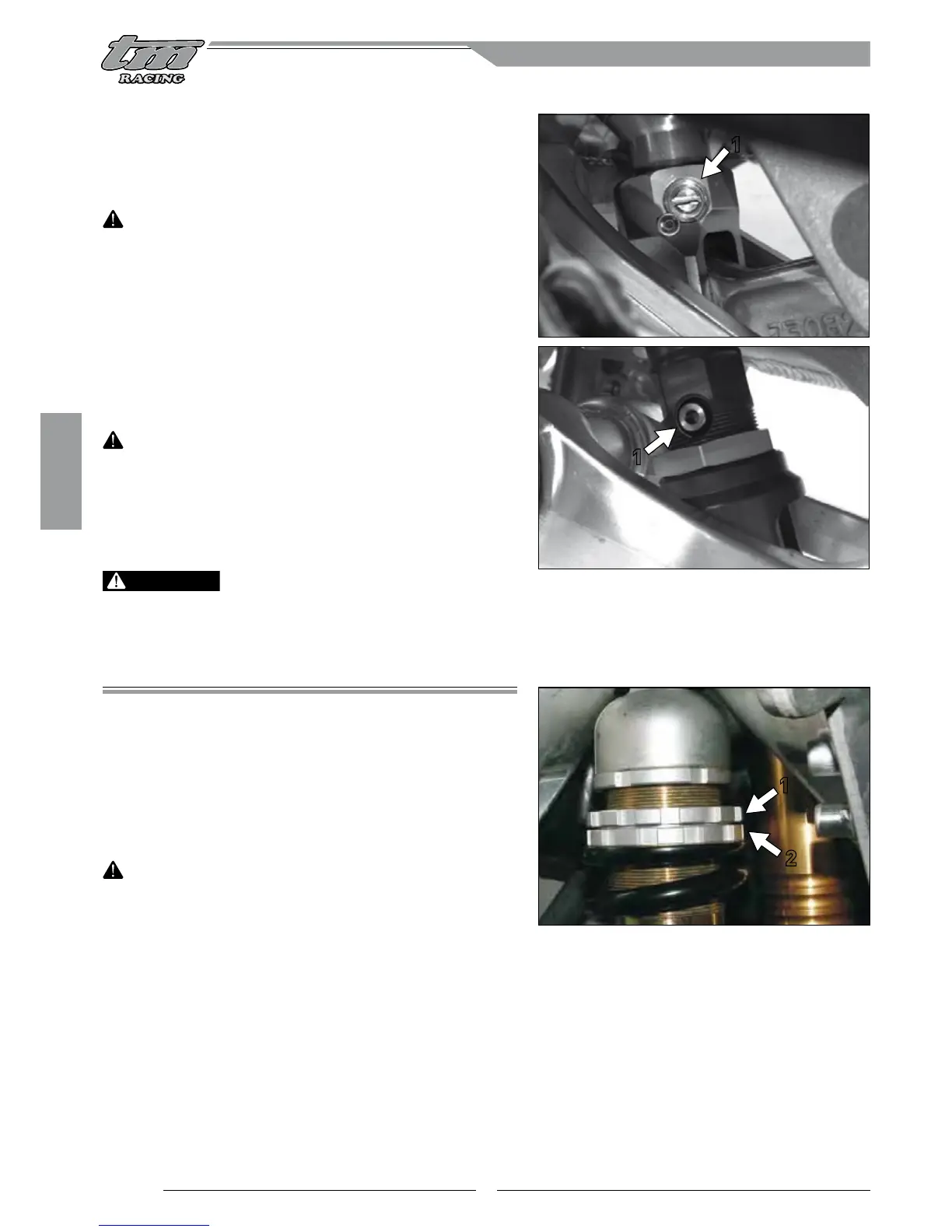

TM SHOCK ABSORBER
The adjustment screw (1) is located on the fork coupling connecting the
shock absorber to the linkage. Use a screwdriver. Rotate clockwise to
increase braking or anticlockwise to decrease it. A total number of 27
clicks is available.
WARNING
BEFORE STARTING, WE RECOMMEND TIGHTENING THE ADJUSTER FROM THE
STANDARD POSITION TO THE ‘’ALL CLOSED’’ POSITION AND COUNTING THE
CLICKS. WRITE DOWN THE NUMBER OF CLICKS IN ORDER TO BE ABLE TO RE-
STORE STANDARD ADJUSTMENT.
THE NORM IS TO COUNT THE CLICKS STARTING FROM THE ‘’ALL CLOSED’’
POSITION.
OHLINS TTX SHOCK ABSORBER (OPT. SMX ONLY)
The adjustment screw (1) is located on the fork coupling connecting the
shock absorber to the linkage. Use a 3 mm Allen key.
Rotate clockwise to increase braking or anticlockwise to decrease it.
WARNING
BEFORE STARTING, WE RECOMMEND TIGHTENING THE ADJUSTER FROM THE
STANDARD POSITION TO THE ‘’ALL CLOSED’’ POSITION AND COUNTING THE
CLICKS. WRITE DOWN THE NUMBER OF CLICKS IN ORDER TO BE ABLE TO RE-
STORE STANDARD ADJUSTMENT.
THE NORM IS TO COUNT THE CLICKS STARTING FROM THE ‘’ALL CLOSED’’
POSITION.
THE GAS TANK OF THE SHOCK ABSORBER IS FILLED WITH HIGH PRESSURE
NITROGEN. NEVER TRY TO DISASSEMBLE THE SHOCK ABSORBER OR PERFORM
MAINTENANCE WITHOUT THE HELP OF TECHNICIANS IN ORDER TO PREVENT
DAMAGE TO PERSONS OR OBJECTS.
VARYING PRE-LOAD AND REPLACING
SHOCK ABSORBER SPRING
The spring pre-load can be varied by rotating the adjustment ring nut.
The pre-load varies by 1.5 mm at every turn of the regulation ring nut.
To facilitate the operation, we recommend disassembling and carefully
cleaning the shock absorber.
In the event the pre-load variation is not sufficient, replace the spring
with another one with a different spring rate.
WARNING
BEFORE STARTING THE OPERATION, WE RECOMMEND WRITING DOWN
THE BASIC ADJUSTMENT, E.G. HOW MANY THREADED TURNS ARE VIS-
IBLE ABOVE THE ADJUSTMENT RING.
SACHS SHOCK ABSORBERS
Loosen the locking ring nut (1) and rotate the adjustment ring nut (2). Rotate it
anticlockwise (seen from above) to decrease the pre-load or clockwise (seen from
above) to increase it. After adjusting, tighten the locking ring nut (1).
DANGER
1
2
3.2 ADJUSTING SUSPENSIONS
1
1
