In order to allow authorised workshops and the most demanding users
to intervene directly on the EFI system of models 250Fi (ALL) and 450Fi
(ALL), in collaboration with Microtec S.r.l., TM Racing has created and
developed a PDA specific for TM Racing motorcycles equipped with fuel
injection system.

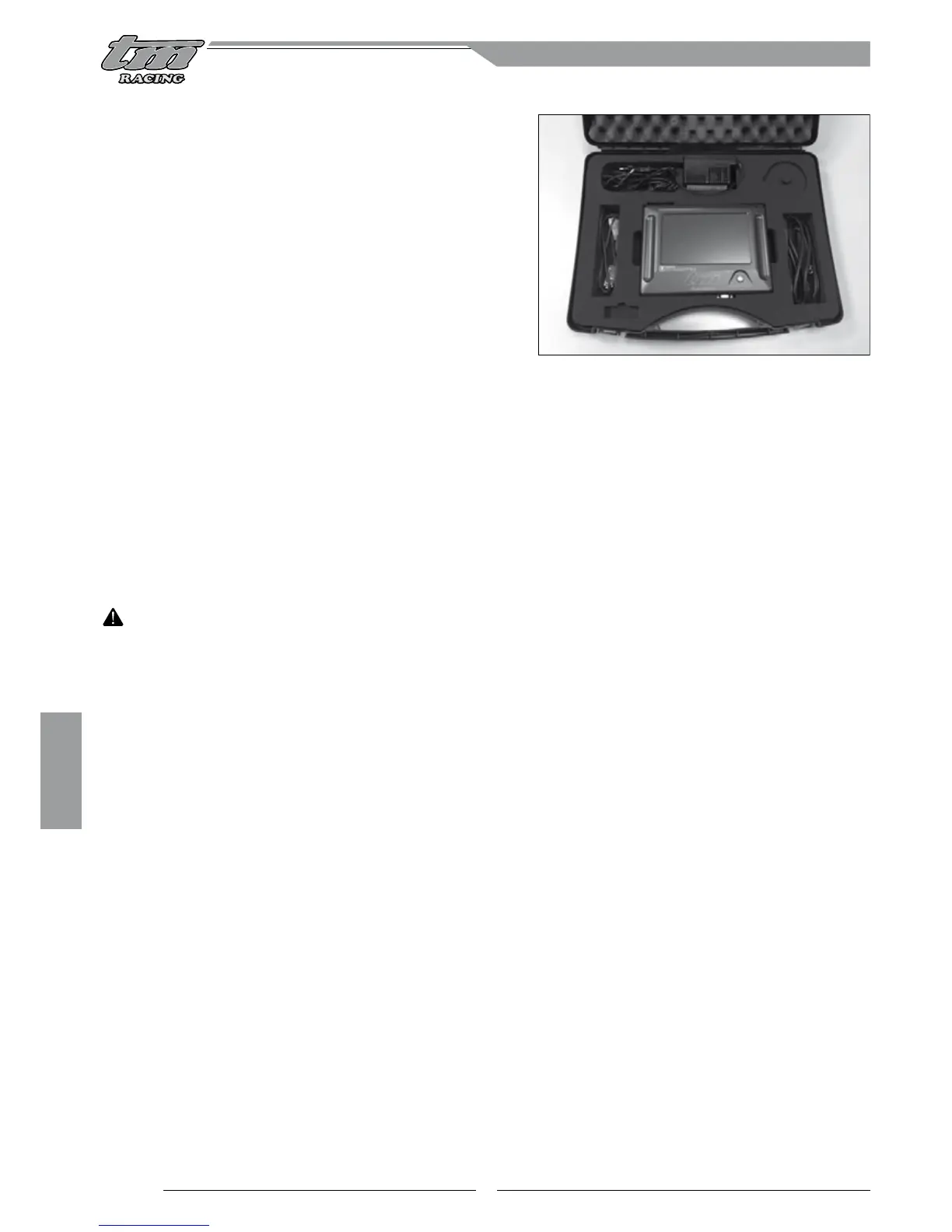

This device (dimensions 228 x 168 x 45) can be adapted to any operating
conditions, in the workshop, on the track and on the testing bench. It
is equipped with an internal rechargeable battery which can power the
control unit and is able to communicate even when the engine is off.
Alternatively, you can connect the device to a 12 V external battery and
communicate with the control unit using the same procedures.
The 7’’ colour display is touch screen that can also interact with a pen,
track ball or mouse connected via the device’s USB port, which can also
be used for USB flash drives.
The device is also equipped for Ethernet, has COM ports, mini usb inlet
and power supply connections.
The device, connected via CAN to the control unit, allows you to:
- Check the motorcycle EFI system operation (Electronic diagnosis)
- Check some engine functions (Mechanical diagnosis)
- Check the data entered in the control unit
- Change the maps in the control unit
- Display the engine operating hours
- Upload new maps provided by TM Racing
- Acquire data in real time in 2D and numerical format.
The device is subject to continuous software and firmware updates al-
lowed by the specific hardware configuration without additional costs. It
is available for all TM Racing Clients.
WARNING
The maps assigned to the various motorcycle models and indicated in
this manual are those valid as of 10/01/2014.
In order to improve its products continuously, TM Racing reserves the
right to vary the above-mentioned data.
Thanks to the use of the diagnostic PDA, you can correct the basic maps,
in terms of early ignition and injection times, within a specific value range
in motorcycles intended for off-road or competition use.
This device also allows you to change the map to an already mapped
control unit and adapt it to another type of motorcycle.
It is strictly prohibited, for the safety of people and in order to retain the
warranty, to use maps created by TM Racing for a specific model on
another motorcycle of different displacement and/or type.
5.3 PDA (PALMTOP COMPUTER) (ALL 250Fi - ALL 450Fi)
