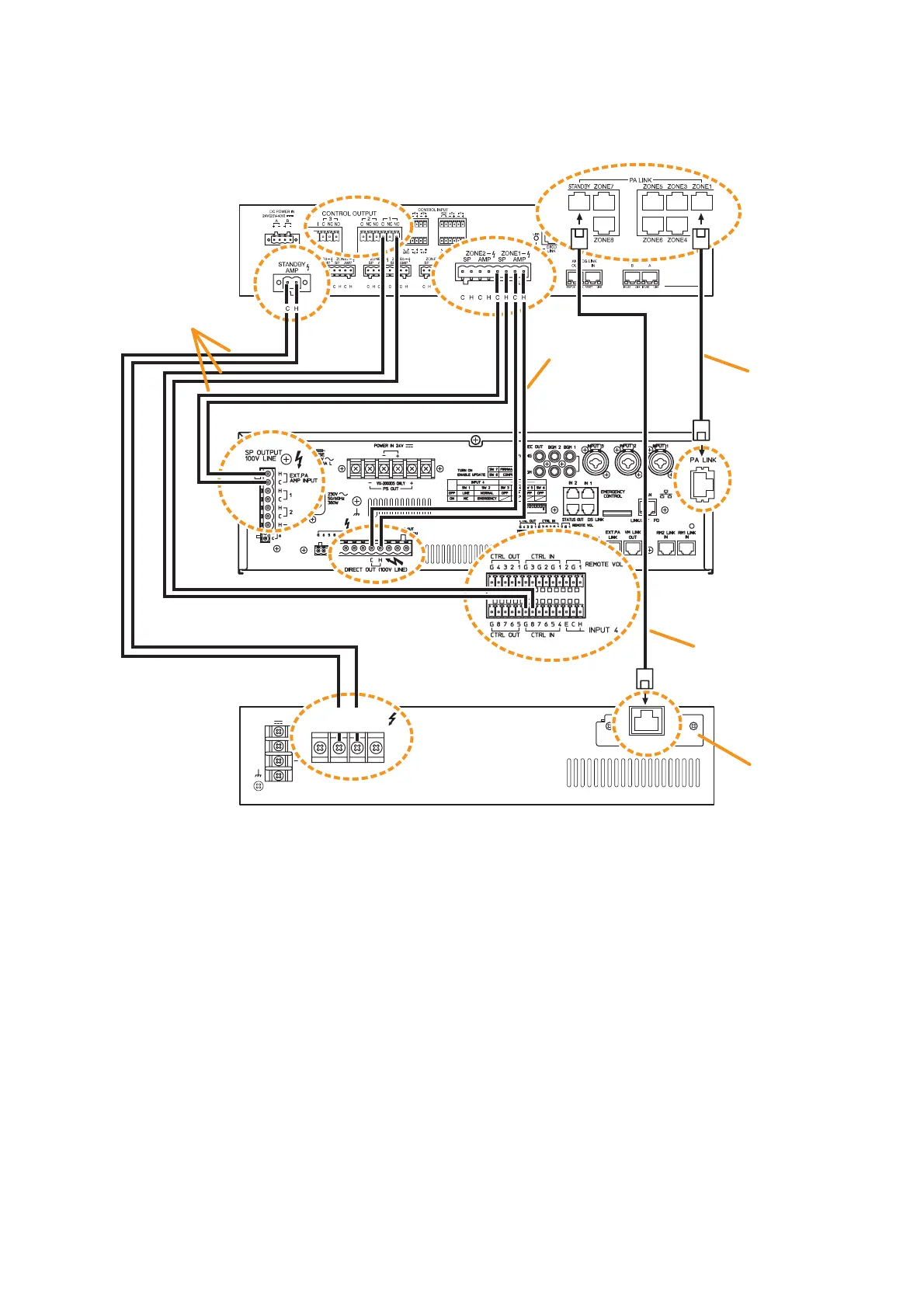

6.3. Example of Connections between the SX-2100AO, VM-3240VA/3360VA,
and VP-2241/2421
VM-3240VA/3360VA
PA LINK VP-200VX
28 V 4.8 A
DC POWER IN
PA OUT (SP LINE)
CH
VP-2241/2421
VP-200VX
SX-2100AO
PA OUT (SP LINE)
CH
PA LINK
AWG 20 – 16
AWG 20 – 16
Cat. 5 STP
Cat. 5 STP
