3. VP-200VX INSTALLATION IN THE VP-2241/2421 AND
GROUND LIFT SETTING
3.1. Installing the VP-200VX in the VP-2241/2421
VP-2241/2421

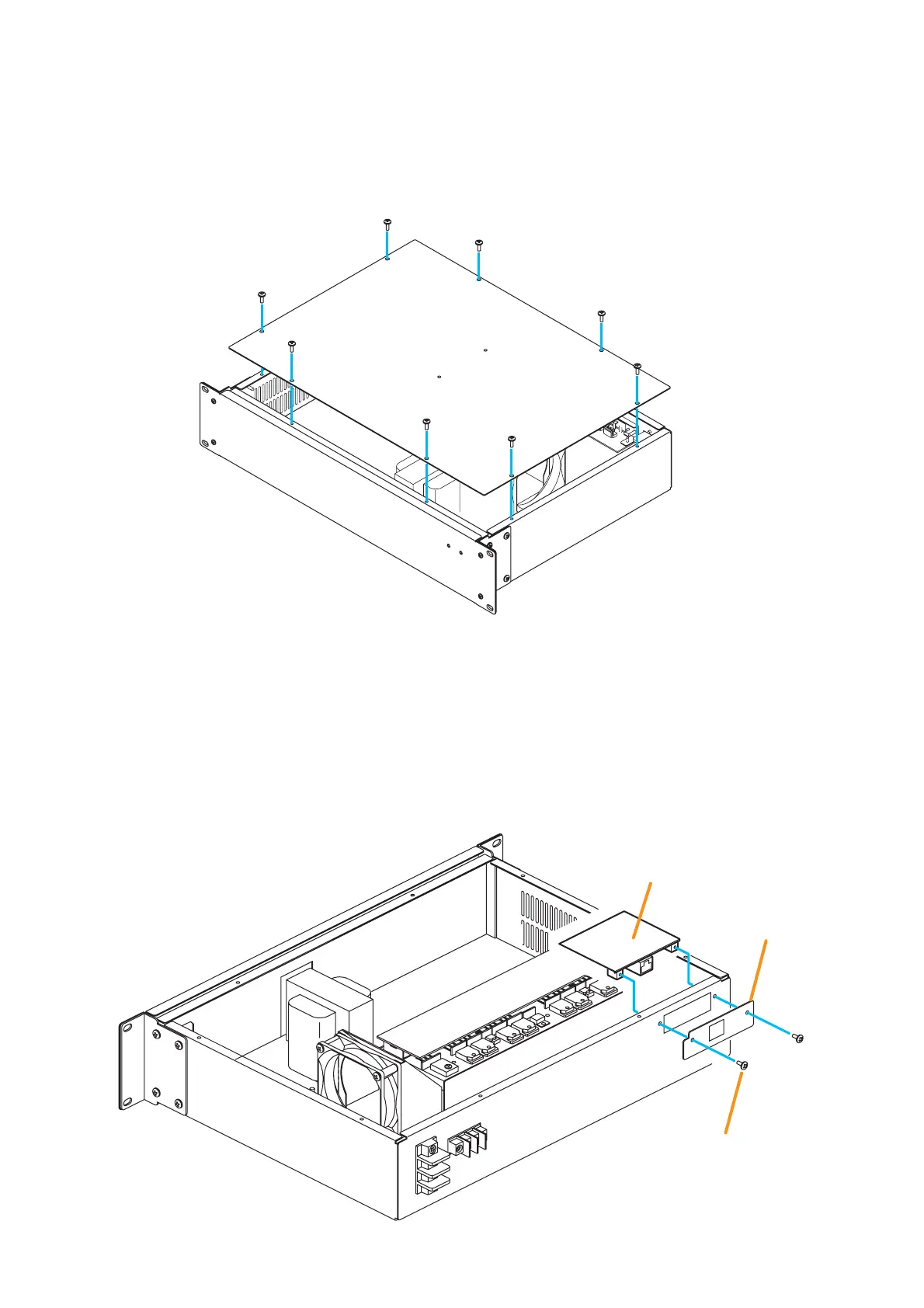

Step 1. Remove the VP-2241/2421 power amplifier's top panel.
Step 2. Unscrew the VP-200VX's panel to detach it.
Step 3. Mount the VP-200VX module.
Attach the VP-200VX's panel to the mounting location and the VP-200VX unit to the back of the
mounting location, then secure them to the amplifier using the screws removed in step 2.
Note: Mount the VP-200VX with its circuit board components faced down.
VP-200VX
VP-200VX 's panel
Mounting screw
(Use the screw removed
from the VP-200VX)
