TOHATSU F40 - Dimensions for Full Tilt Up and Steering; Steering and Tilt Angle Specifications

3
Installation Maual 2016

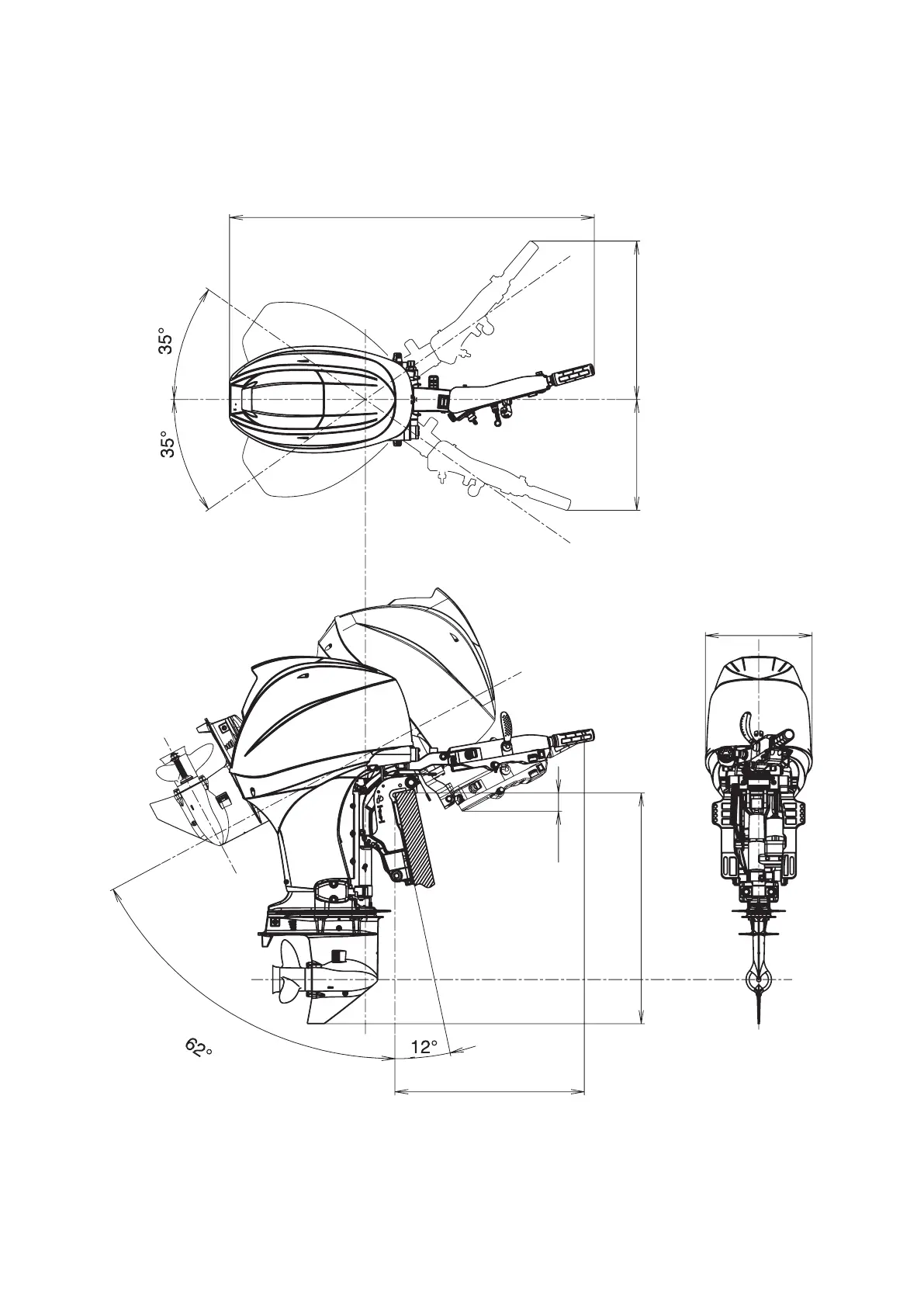

Dimensions for full tilt up and steering
Be sure to confirm that NO parts will interfere with the boat or transom when the motor is at full tilt.
Do NOT install if any parts that could interfere with the boat or transom.
1382
STEERING ANGLE
Max. T
ilt angle
600
419
404
717
69
S:740 L:873 UL:987
