2016 Installation Manual

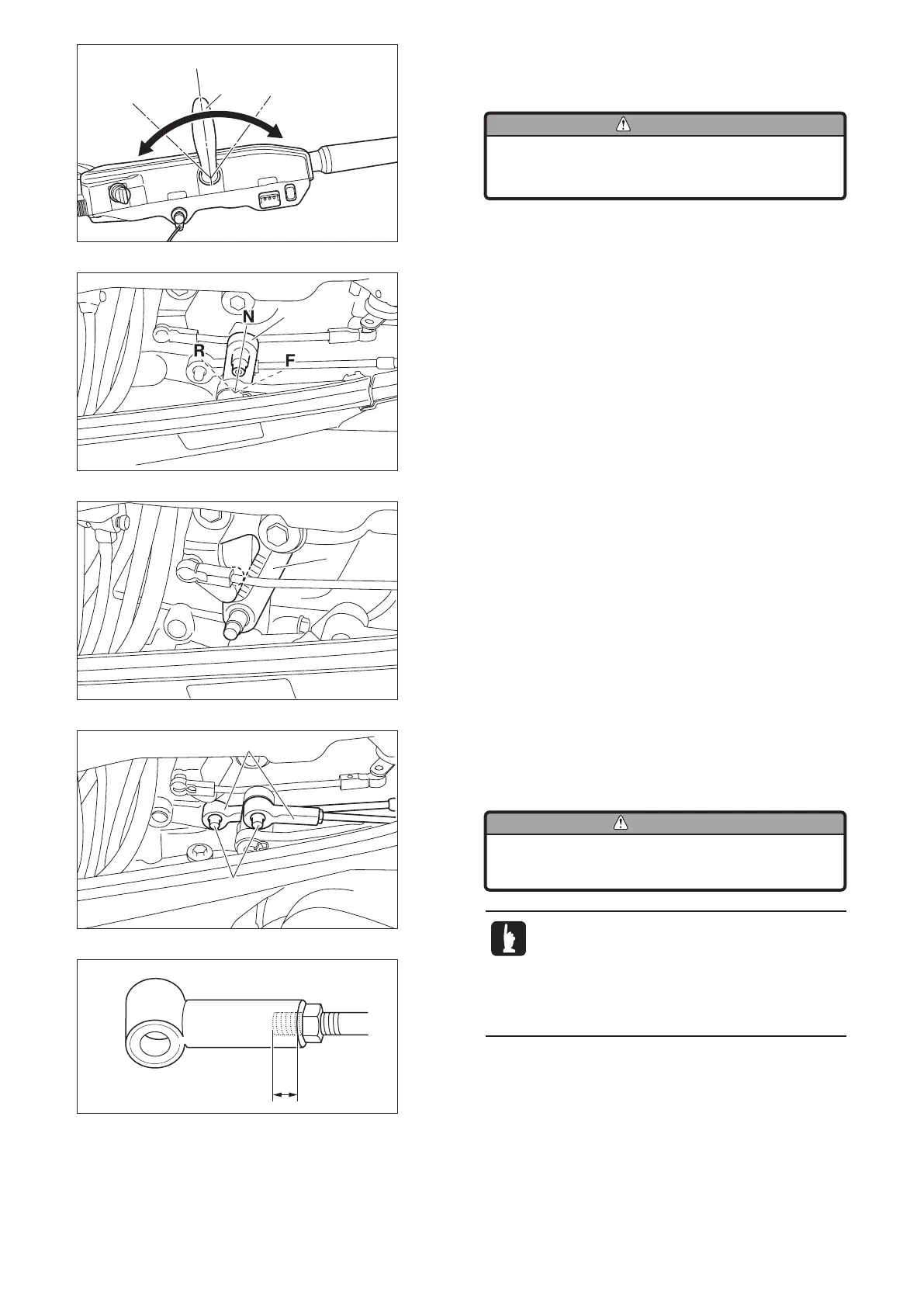

Shift/Throttle cable adjustment
1. Place shift lever 1 at neutral position.
• Cable joints are in the outboard
box.
• After adjusting remote control
cable joint, fix it with remote
control cable fully pushed in.
CAUTION
Shift lever cannot work unless
throttle is fully closed. Do not force
the shift.
WARNING
Screw-in remote control cable joint
at least 12 mm b.
R
N
F
1
2
4
5
b
3
2. Set shift arm 2 to forward (F), neutral (N),
reverse (R) and then to neutral (N) positions.
3. Set throttle cam
3 to full close position.
4. Adjust screw-in length of cable joint
4 so that
hole of cable joint is brought to throttle arm pin
and shift arm pin
5.
