TOHATSU F40 - Multi-Function Tiller Handle Installation Details; Electrical Connections and Cable Routing; Final Cover and Silencer Installation

5
Installation Maual 2016
8
7
9
0
6
5
4
q
w
r
e
t

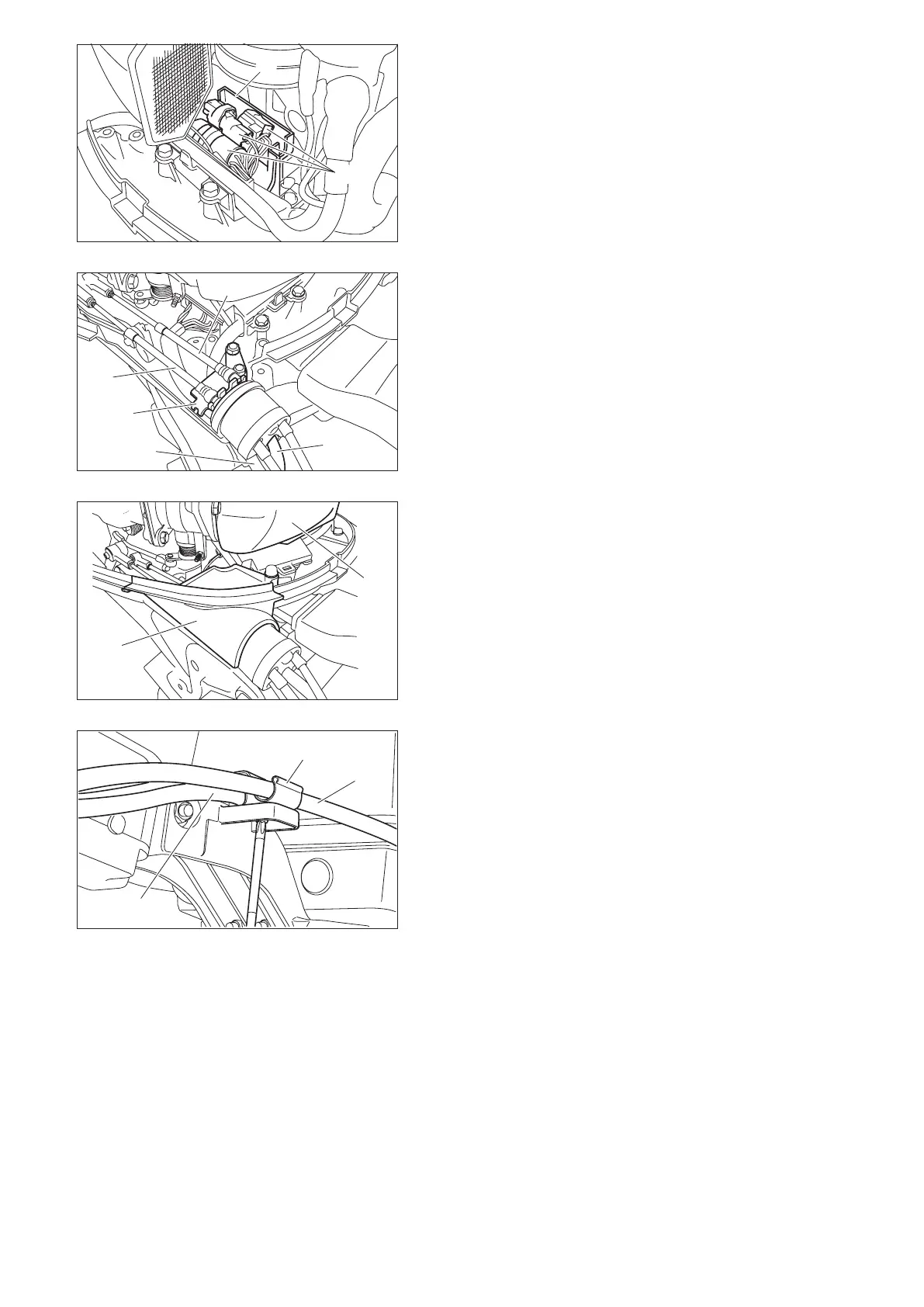

4. Open cable terminal holder cover 7, connect
three connectors
8, and then close cover.
5. Install cable clip
9 to mount battery cable 0 and
main harness
4.
Install grommet, and insert shift cable
5, throttle
cable
6 to cable clip.
6. Install remote cont. cable stay cover q, and then
install air silencer
w.
7. Install code holder
e to multi function tiller
handle, put in battery cord
r and fuel hose t.
Tillerhandle_F4050E_160316.indd 5 16.3.16 5:57:59 PM
