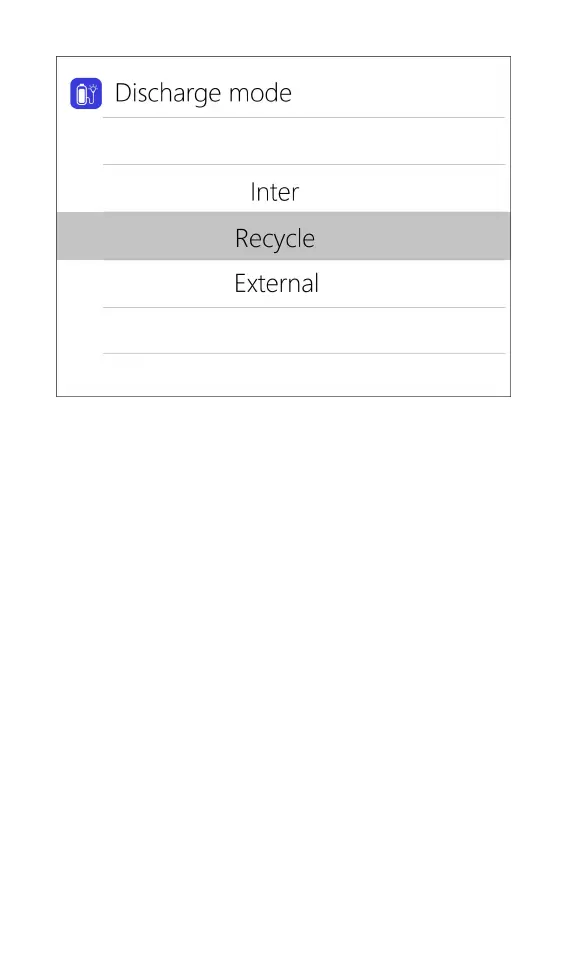

The charger supports three discharge modes.
1. Normal mode: discharge using internal heat
dissipation, maximum 3.0A@15W discharge.
2. Recycle mode: when a battery is used as the
input, the power is recovered to the input battery
through this function, max 15.0A@300W discharge.
3.
External mode: when the input port is connected
to a discharge load and the output port is connected to
the battery, it can be discharged through this function.
Max 15.0A@300W discharge.
5. Max input voltage
When the discharge mode is selected to recycle, the
Max input voltage option will appear. Move the cursor to
[Max Input Vol.] and press [OK] to adjust. If the input
voltage reaches this voltage value during discharge, the
