be tested. Choose PWM.
Scroll the [Scroll Wheel], move the cursor to
[Manual], press [OK] to set the output mode, which can
be set to manual, auto 1, auto 2, and auto 3.
In manual mode, you can change pulse width and
cycle values by using the cursor.
When set to auto 1, 2, 3, the pulse width value of
output PWM will automatically change at 3 different
speeds.

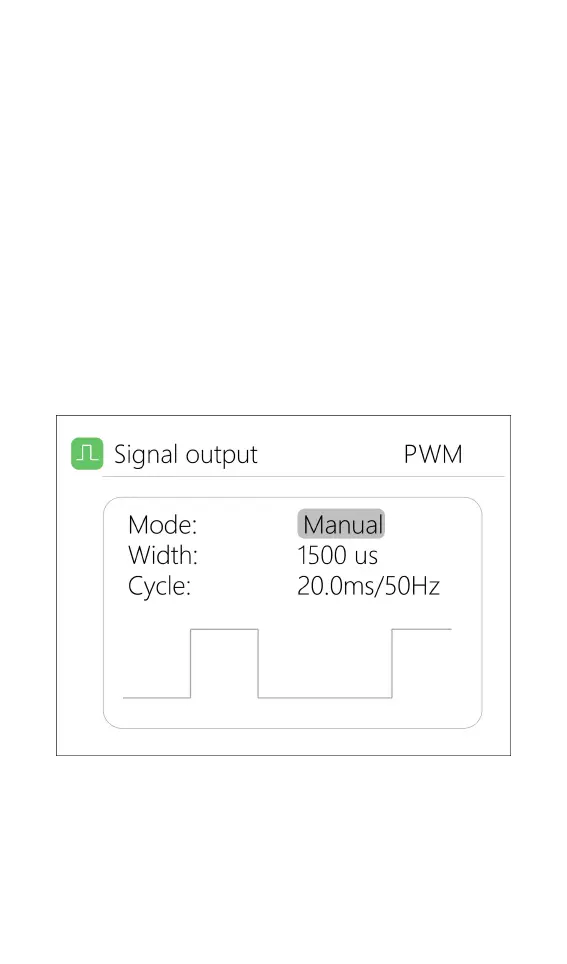

The width can be set from 800 to 2200us.
The cycle can be set between: 2.5ms (400hz) to
50.0ms (20hz). As shown below:
Select PPM, scroll [Scroll wheel] to move the cursor
to the value of the channel to be modified. Press [OK] to
modify the output pulse width value of this channel. As
shown below:
