18 FC-5000 Ruggedized Field Computer Owner’s Manual
4. An image on the battery compartment label shows the
correct location and orientation for the SD card (slot on
the right). Pull the exible card holder back out of the
way. Push the card into the slot to insert it.
5. Push the exible card holder back into place, covering
the card slots.
6. Replace the battery pack, and attach the battery door.
To remove the SD card, pull it out. Use tape or an eraser if
you have trouble.

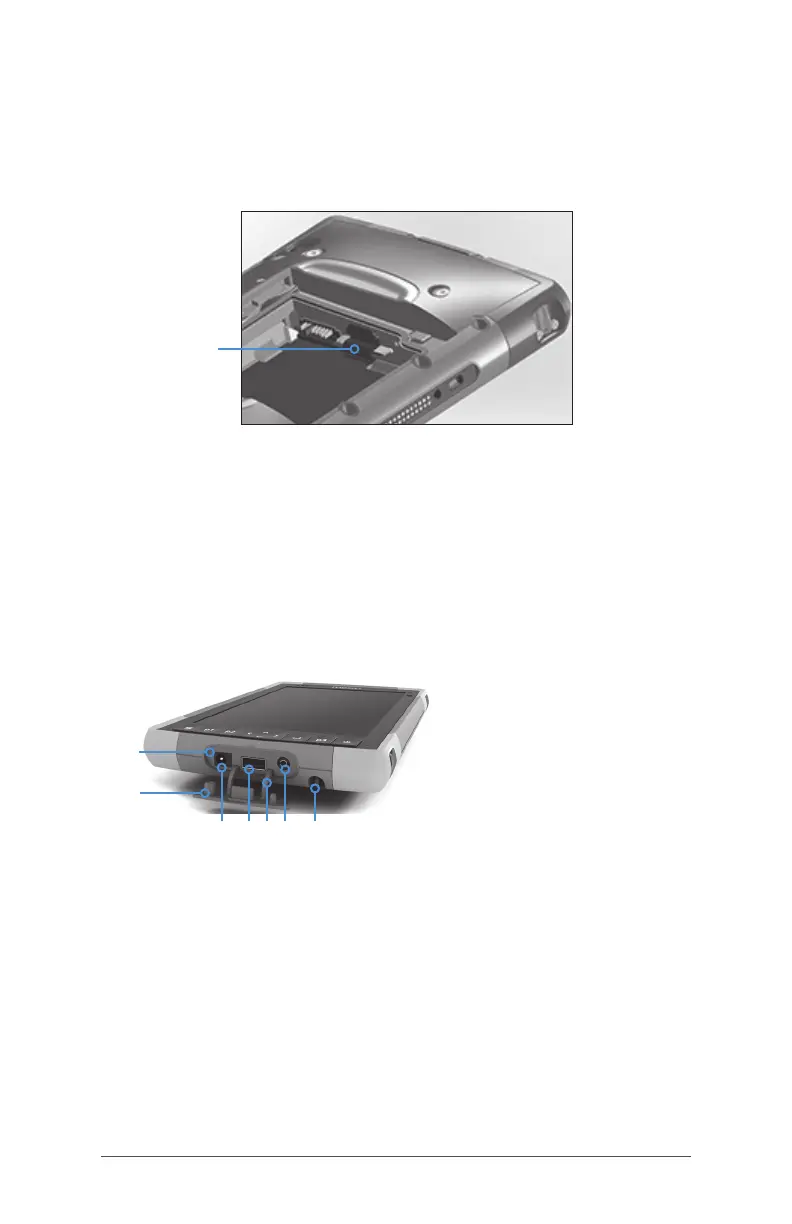

Connector Ports
The FC-5000 has the following jacks and connectors:
The connector protector is removable and replaceable. See
your sales representative if you need a new one. To remove
it, pull it out of the ports, then gently pull the curved rubber
retainers out of the holes they are in. Replace it by inserting
the curved rubber retainers back into the holes.
Note: The connectors are sealed. A connector protector
is not required to prevent water ingress. It protects the
connectors from exposure to excessive dust and dirt.
1 Connector Ports
2 Connector Protector
3 12 VDC Power Input Jack
4 USB Host, Full Size
5 Connector Protector Retainer
6 Microphone/Speaker Jack
7 Storage Slot for Fine Tip
Stylus
1
3 4 6
2
7
5
