12
2-2 Adjustment
* Before carrying out adjustment, if the screw lock has been applied to a screw, dissolve it using Isoamyl acetate.

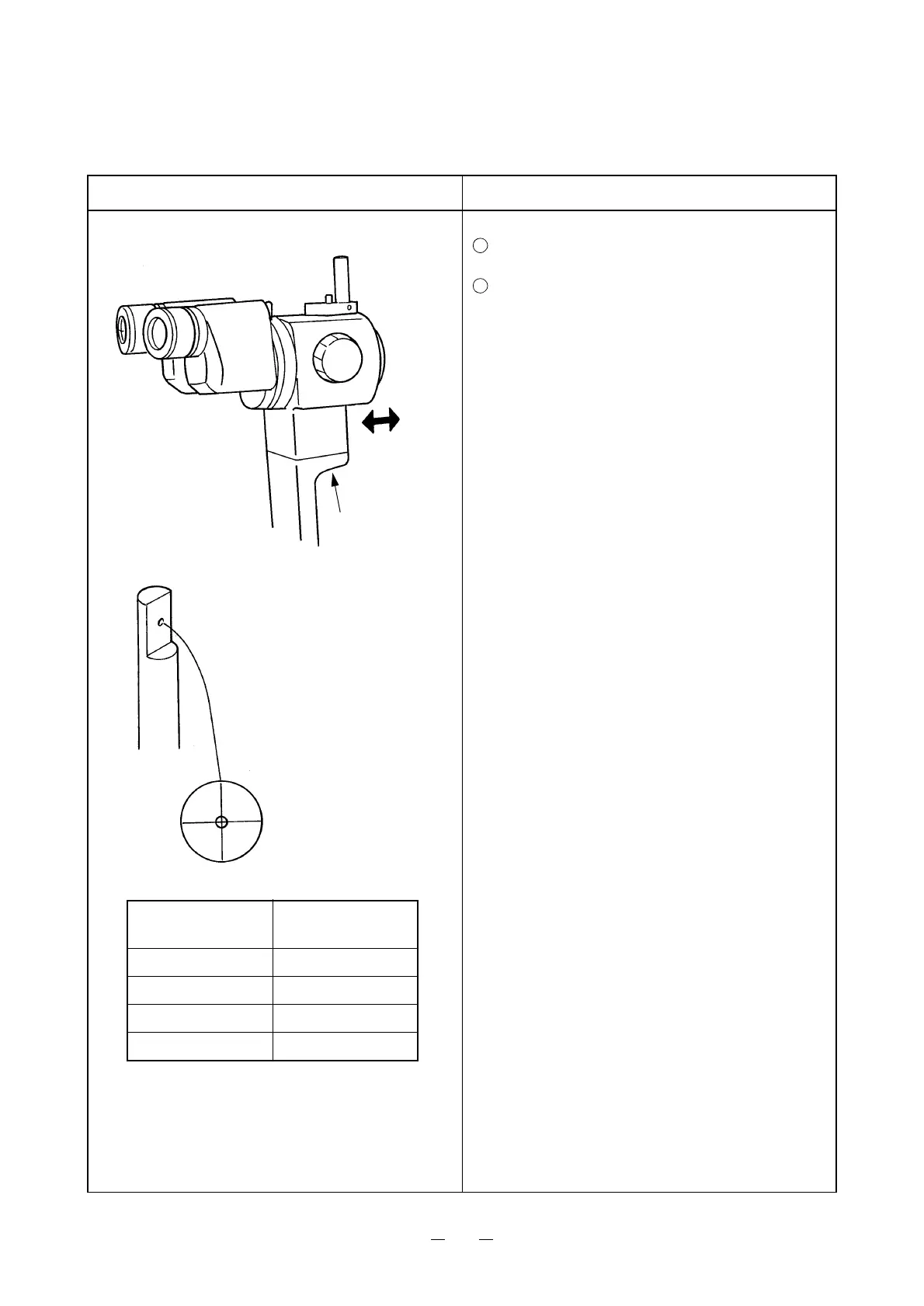

Illustration Procedure
1. Focus setting of microscope
Loosen the screws 6S4×12S SUS (3 pcs.) fixing
the microscope on the arm.
Change magnification as looking into the
diopter telescope. Move the microscope back
and forth, tighten the screws 6S4×12S SUS
where it is in focus and apply the screw lock.
Displayed
magnification ×
Diopter
difference (dpt)
25 0.5
16 0.6
10 0.15
(Minimum) 0.35
6S4×12S SUS
(3 pcs.)
Project the image on the focusing rod
and decrease the maximum magnifi-
cation to the minimum.
1
2
To Next Page
