Topcon SL-D7 Repair Manual

24
2-3-2 Disassembly and assembly of power supply unit

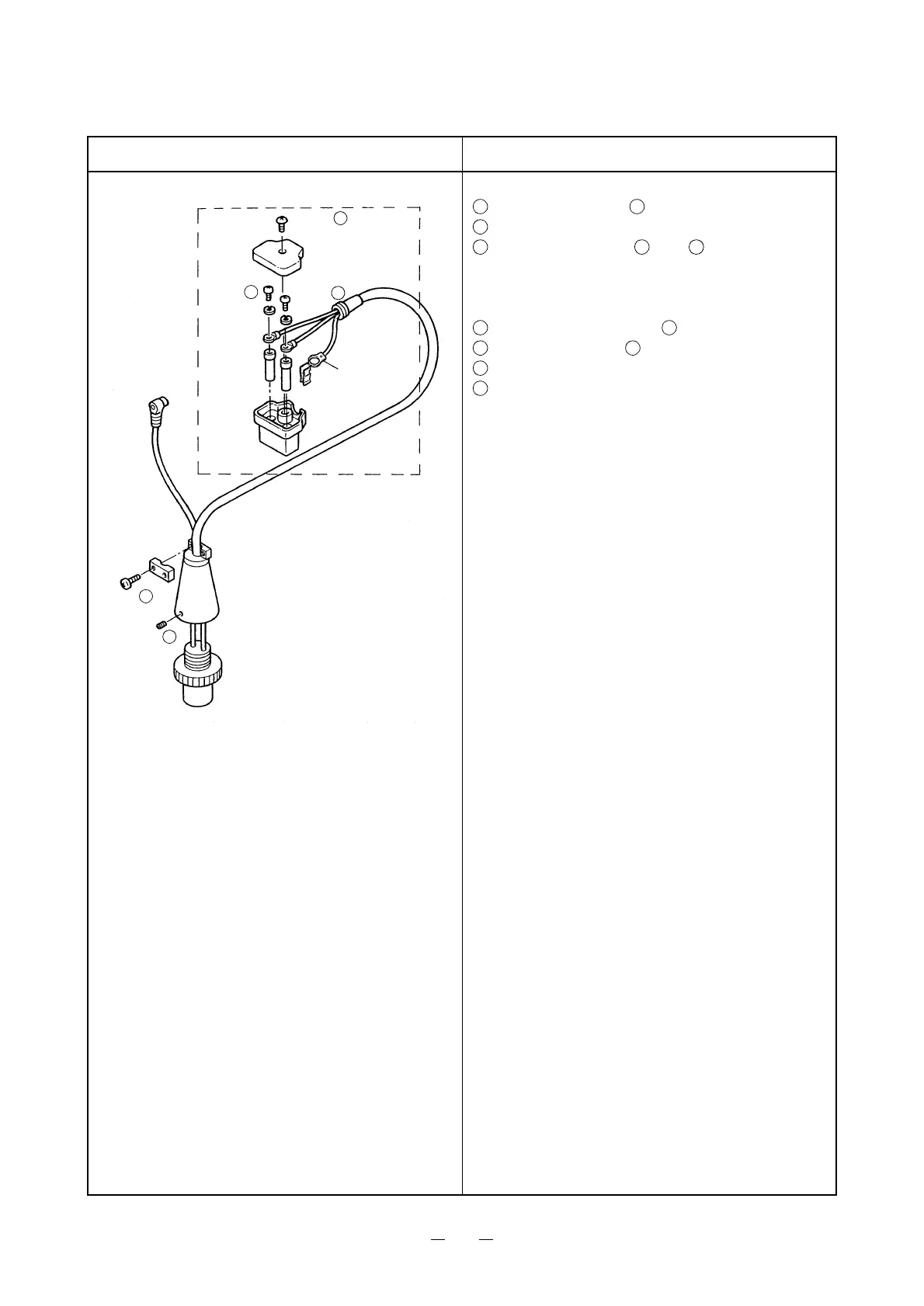

Illustration Procedure
1. Removing the plug P7
Remove the screw .
Remove the upper and lower covers.
Remove the screws and and then remove
the socket.
2. Removing the plug P1
Remove the two screws .
Remove the screw .
Remove the clamp from the plug by turning.
Remove the cords.
* For TE, the earth terminal is prepared.
Screw
Upper cover
Cord bushing
Screw
Plug P7
Socket
Earth terminal
Lower cover
Plug P9
Cord retainer
Screw
Clamp
Plug P1
Screw
Screw
A
C
B
D
E
1 A
2
3 B C
1 D
2 E
3
4
R-SLD7-0-0308-11
