Topcon X35 Console User Manual

1
Chapter 1 – Introduction
The camera monitor allows users to display and monitor cameras on
the console operation screen.
X35 and X25 consoles
Up to six cameras may be connected. Four via the USB adapter and
two via the analog ports. Four cameras may be displayed live at one
time.
X30 console
Up to four cameras may be connected via the USB adapter. Two
cameras may be displayed live at one time. The two live cameras
must be connected to separate USB devices.

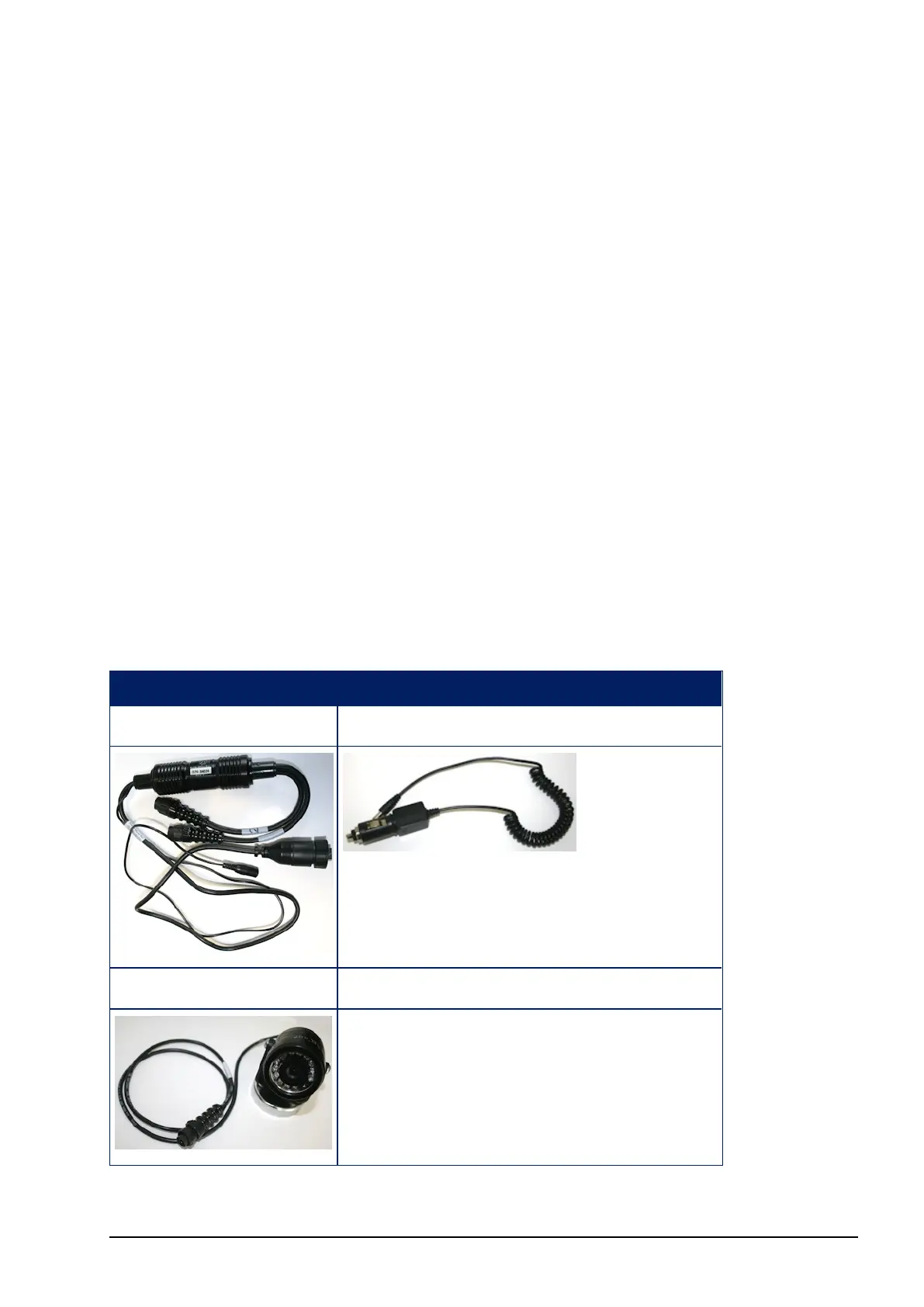

1.1. Parts list
X35, X25 and X30 consoles
1004682-01 KIT, AgCam 2 cameras with adapter and 20ft cable
Part Number Description
1004680-01 ADAPTER, AgCam USB X30 x 1
1004681-01 CAMERA, AgCam PAL 92 degree x 2

Topcon X35 Console Specifications

General

Brand	Topcon
Model	X35 Console
Category	Controller
Language	English
