TOPSHINE TRACKING TECHNOLOGY USER MANUAL OF MT100

- 8 -

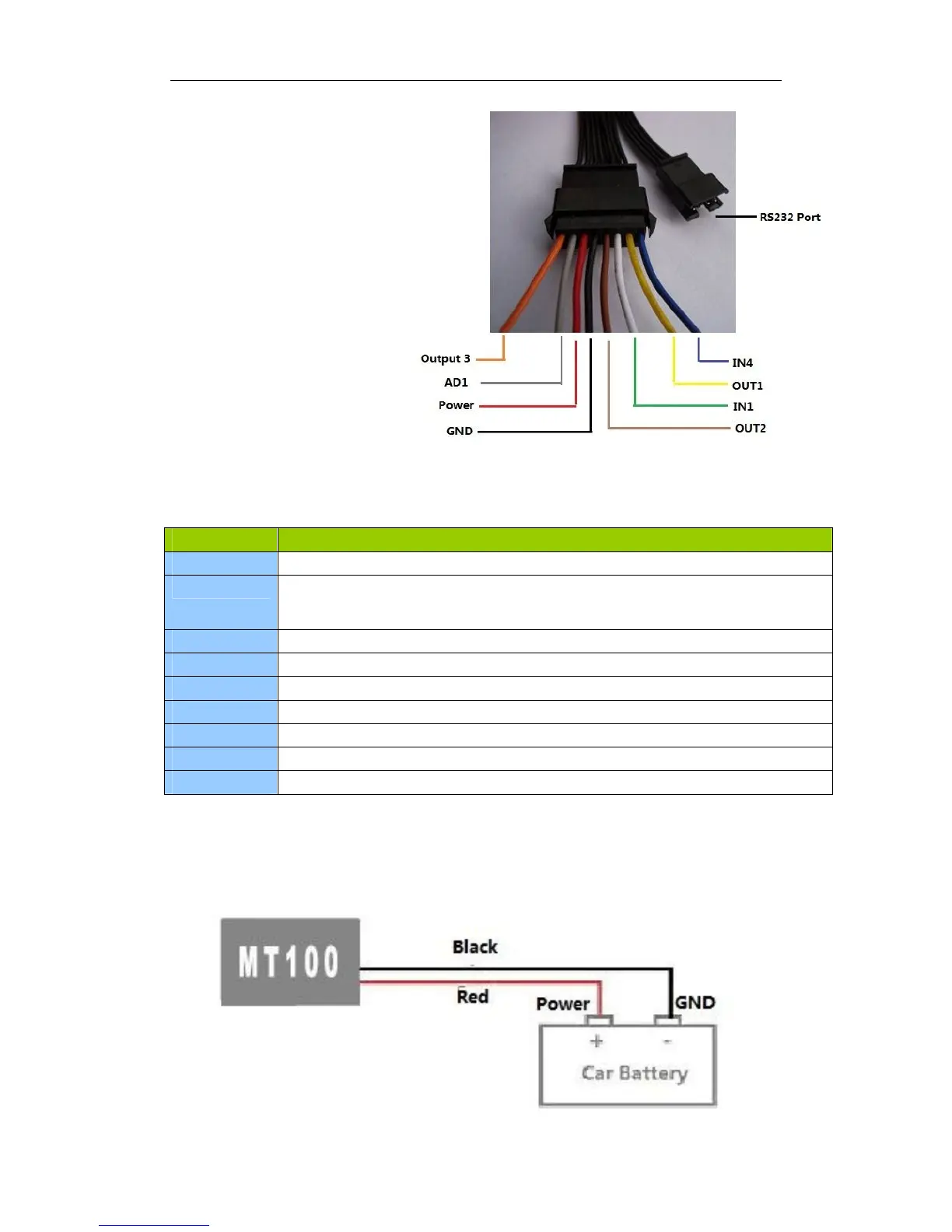

5.4 Install I/O cable

The I/O cable includes power,

Negative/positive Input and

Output

PIN Number Description

Output 3 E.g. connected with siren

AD 1

10 Bits Resolution Analog Inputs. 0~6V DC Detection. It can be used to connect with fuel

sensor etc.

Power DC In (power source). Input voltage: 9V~36V. 12V suggested.

GND Ground.

Output2 NC

Input1 Digital Input 1 (negative triggering), e.g. It can be connected with SOS panic button.

Output1 Output1. It can be used to connect with relay for engine immobilization.

Input4 Digital Input 4 (positive triggering), e.g. detecting the ACC.

RS232 Port It can be used to connect with RFID and Temperature Sensor etc.

5.5 Power/GND

Connect GND (-Black) and Power (+Red) wires to the battery of vehicle.
