Topshine MT100 - Digital Inputs and Output Configuration

TOPSHINE TRACKING TECHNOLOGY USER MANUAL OF MT100
- 9 -

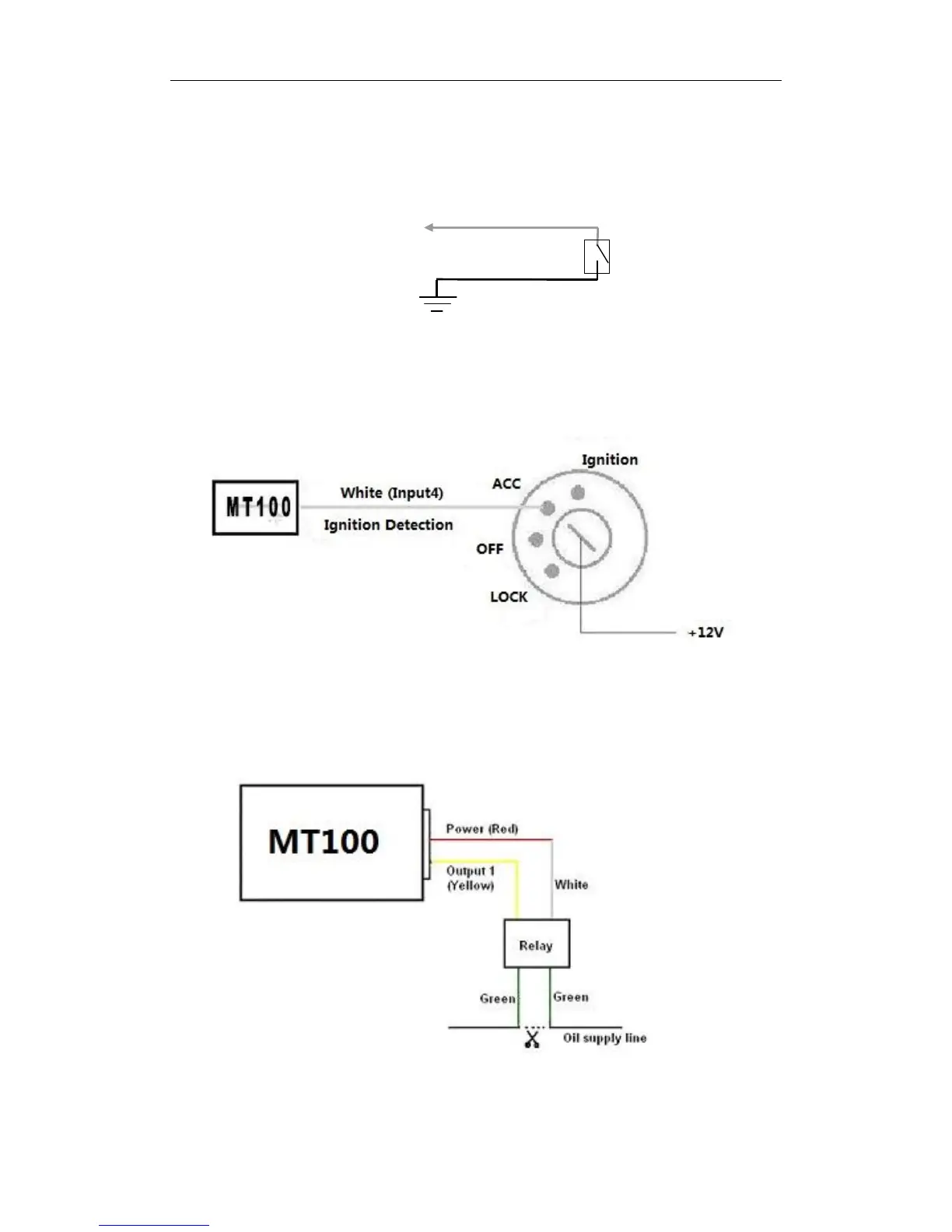

5.6 Digital Input (Negative Triggering)
E.g. Detecting SOS button
5.7 Digital Input (Positive triggering)
E.g. detecting engine on/off status
5.8 Output
PIN IN and OUT 1 application example:
Input 1 or Input 2 or Input 3
White
SOS Button
