Torishima Pump CAL - Outline of Construction Parts

CAL Optional Design
- 14-
Note: For order of additional spare parts, designate the type of the mechanical seal as a set,
in order to ensure preferable seal effect.
Parts table of a mechanical seal set
Parts No. Parts Name
4100 Packing
4101 Cushion ring
4720 Sealing washer
4740.1,2 Follower ring
4750 Seat
4770 Spring
4850 Stopper
Mechanical seal type: CA φd SS
Unit: mm
Shaft size
25-360
35-470
45-470
45-470A
55-530
65-530
55
ｄ
24
32
45

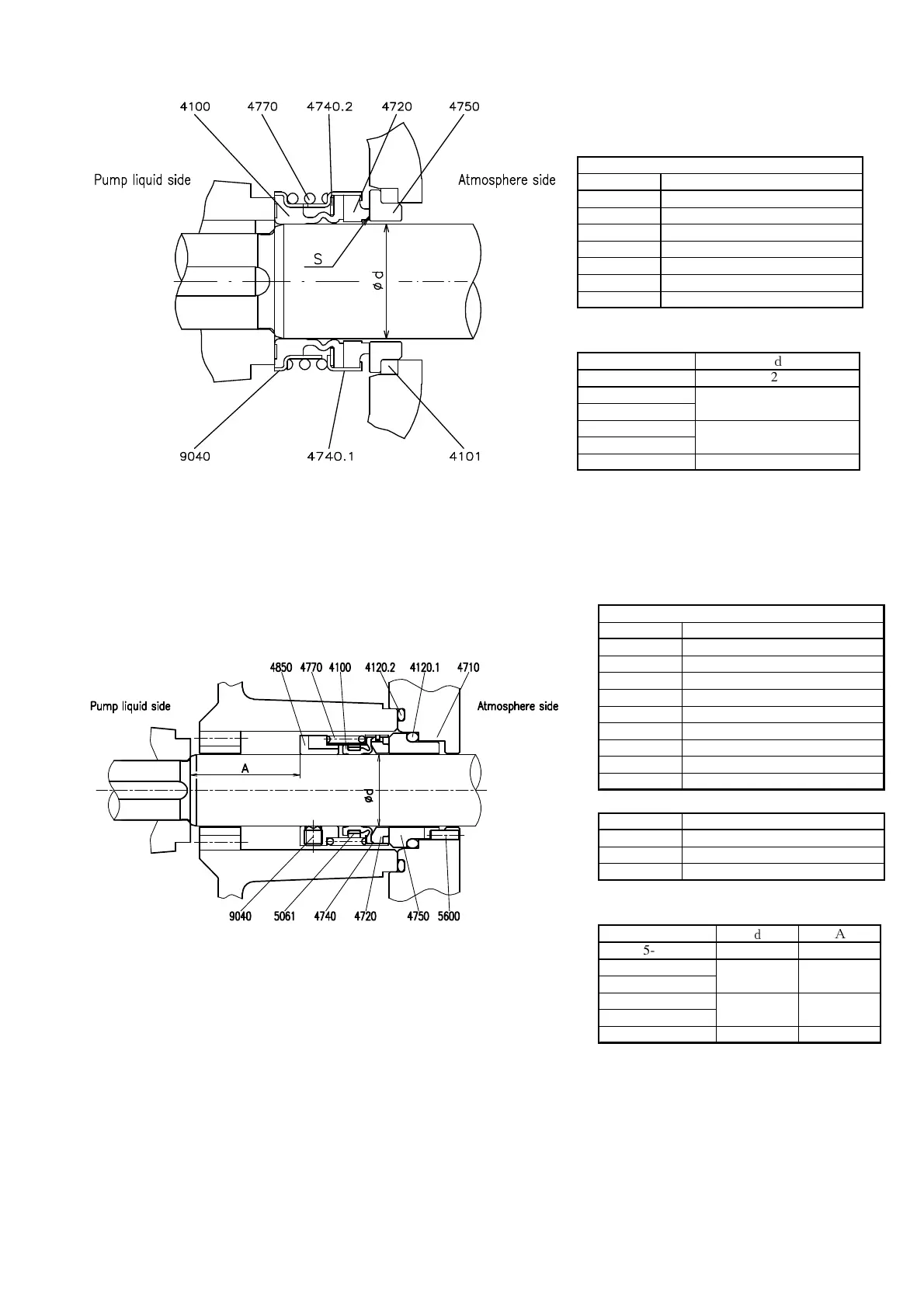

Fig 5.2-1 Construction of mechanical seal “CA”
Note: For order of additional spare parts, designate the type of the mechanical seal as a set, in
order to ensure preferable seal effect.
Parts table of a mechanical seal set
Parts No. Parts Name
4100 Packing
4120.1 O-ring
4720 Sealing washer
4740 Follower ring
4750 Seat
4770 Spring
4850 Stopper
5061 Spline ring
9040 Set screw
Mechanical seal type: LCA φd F/E
Parts table of a pump
Parts No. Parts Name
5600 Pin
4120 O-ring
4710 Seal cover
Unit: mm
Shaft size
ｄ Ａ
25-360 24 37
35-470
45-470
45-470A
55-530
65-530 55 35
32
45
32
36.5
Fig 5.2-2 Construction of mechanical seal “LCA”
