Installation

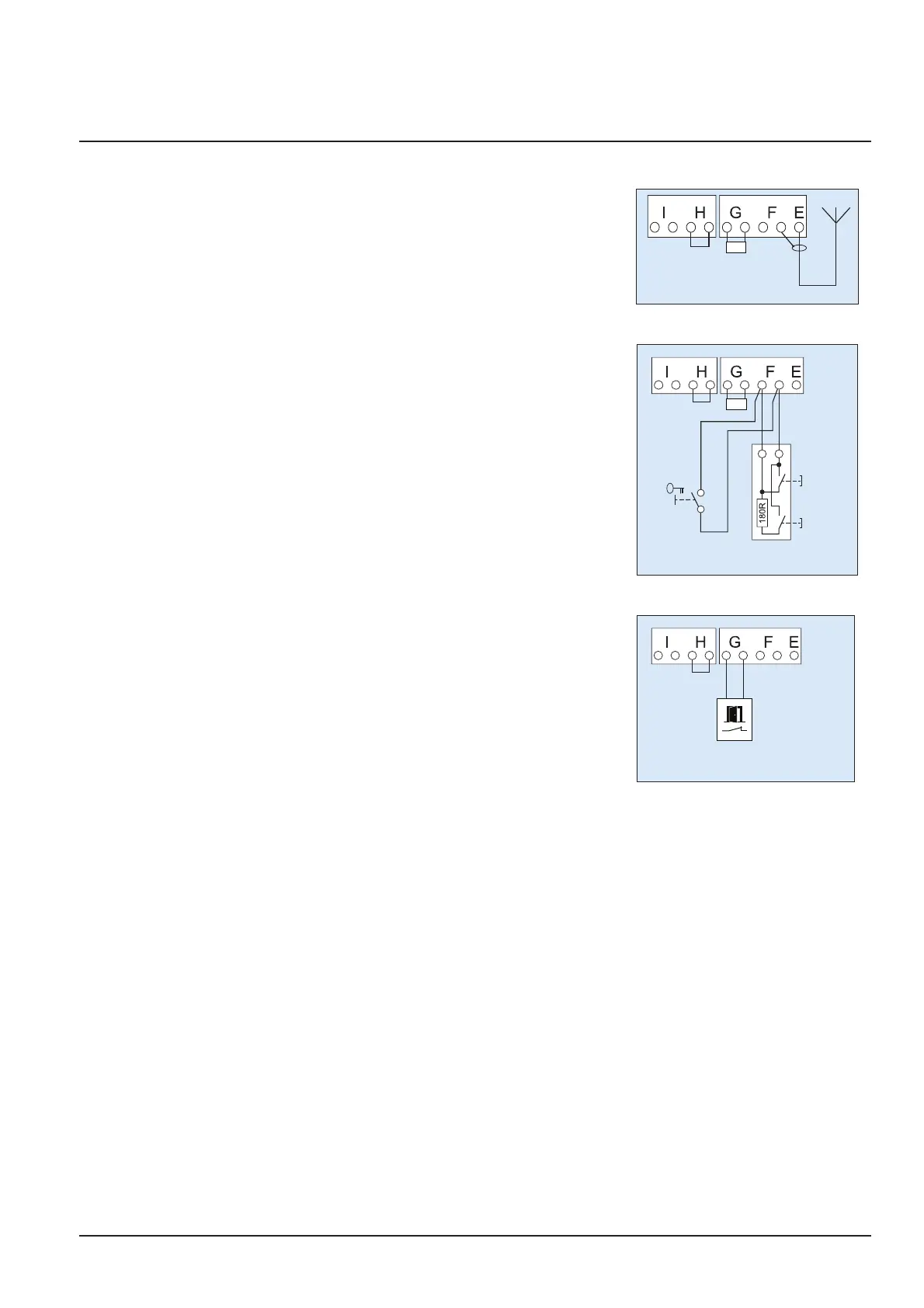

1. External antenna
Lead the antenna upward through the housing recess.
When using an external antenna, the shield must be placed on the right
adjacent terminal (F).
E - Connector for antenna
8k2
2. External pulse generator
F - Connector for external impulse generator (accessories, e.g.
keyswitch or code keypad)
8k2
3. Input STOP-A
The drive is stopped or the start-up is suppressed via this input.
G - Connection for slip contact (accessory) or emergency stop.
Please also observe “Menu H:
STOP-A settings” on page 48.
