Instructions for use T-1321 e 13
5 Operation
The automatic sliding door may only be operated by a specialist, the operator or a person instructed
by the operator.
5.1 Commissioning
Before switching on the mains power supply:
• Unlock the optional mechanical door lock e.g. floor lock.
• Check that the movement area of the door leaves is free from objects e.g. umbrella stands or vehicles.
• Check that the floor guide (particularly if it is continuous) is clean and not blocked by anything (e.g.
gravel or snow).
• Switch on the mains power supply and select operating mode AUTOMATIC 1, for example.
The first movement after switching the power on for the first time is slow and H61/ H62 is dis-
played. The control system is checking the door leaf’s travel distance and defining the end position.
The door is now ready for operation.

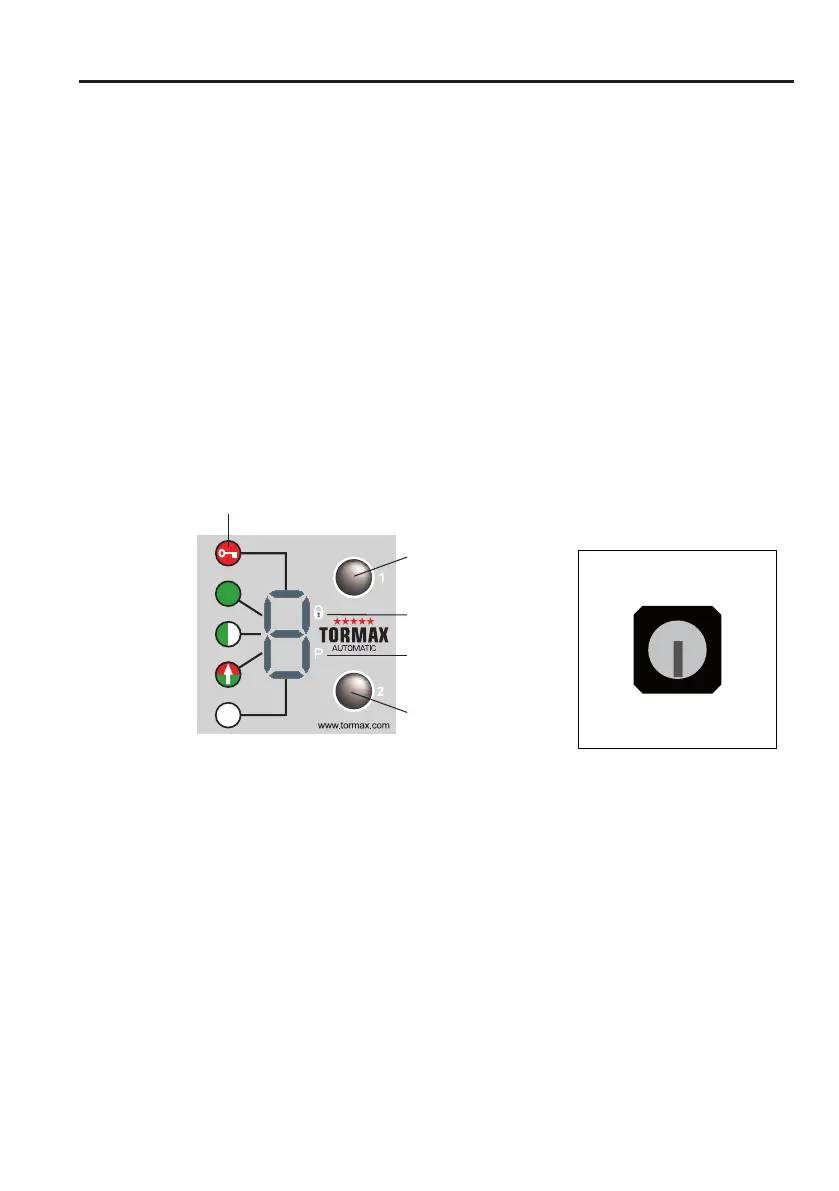

5.2 Operation with the TORMAX User Interface u
TORMAX User Interface Lock u for User Interface
Unlocking of operating unit
The operating unit can be protected against unauthorised access by way of the lock u or the code lock.
• Unlock lock = position 0
or
• Enter code … / … / … using operating unit. Standard code = 3 / 3 / 3. The code can be determined
by the engineer.
Example with code 3 / 3 / 3. Press upper selection button 3 times, then press the lower selection but-
ton 3 times and the upper selection button within 15 s . In case of entering wrong code: Wait at least
5 s . After successfully entering the code, the operating unit will be released within 60 s. The type of
operation can be adjusted. Access will be automatically blocked again for 60 s after the button has
been pressed for the last time.
Selection of Operating Modes
• Press selector keys 1 or 2 briefly. The corresponding operating mode symbol is illuminated.
www.tormax.com
1
1
0
T1321_1e
OFF
AUTOMATIC 1
AUTOMATIC 2
OPEN
EXIT
Operating modes
Manual operation
Door electrically
locked
Selector key 2
Selector key 1
