Fault Display
E.g. H31 or E11 See chapter 8 for the meaning of the display.
• Reset by pressing the selector key 2 briefly.
Resetting the System
• Press the selector key 2 for at least 5 seconds.
The software is restarted. The control system then conducts a calibration run, checks the travel distance
and looks for the end position again. Displayed as H61 and H62.
5.3 Operation with an Operating Mode Switch
Selection of Operating Modes
The operating mode can be set directly.
(Reset the system after disconnecting the power supply for at least 5 seconds.)
OFF
AUTOMATIC 1
OPEN
T1321_10
5.4 Operation on Power Failure

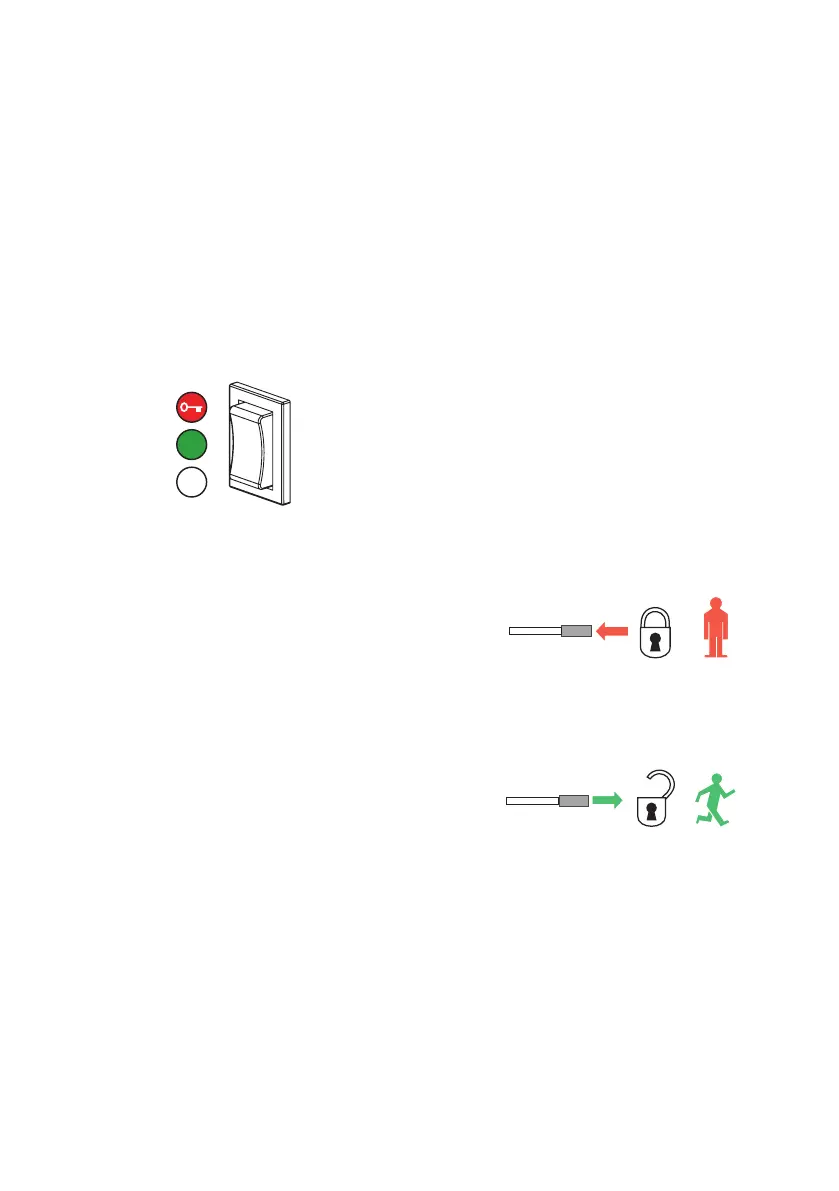

Manual Locking u
• Press the manual operation lever inwards.
• Push the door closed by hand until the latch engages.
• Switch the operating mode switch to operating mode OFF. If a TORMAX user interface is used,
operating mode OFF is automatically set when power is reconnected as the lock is engaged.
Manual Unlocking u
• Pull the manual operation lever outwards.
• Push the door open by hand.
• Set the operating mode switch to the operating mode you want when power is restored.
Opening a Door with a Battery Unit u Using a Key Switch u
• Turn the key switch to the “on” position and hold in place for at least 3 seconds, then turn the key
to the original position.
The battery is activated using the “wake up” function.
• Turn the key briefly to the “on” position once more. If required, the operating mode can be changed
on the user interface during the wake-up.
The key switch must not remain permanently in the “on” opposition.
The door is unlocked and opened.
The battery switches off again.
