Reelmaster 7000−DPage 1 − 4Safety
Jacking Instructions
CAUTION
When changing attachments, tires or perform-
ing other service, use correct jacks and sup-
ports. Make sure machine is parked on a solid,
level surface such as a concrete floor . Prior to
raising machine, remove any attachments that
may interfere with the safe and proper raising of
the machine. Always chock or block wheels. Use
jack stands to support the raised machine. If the
machine is not properly supported by jack
stands, the machine may move or fall, which
may result in personal injury.

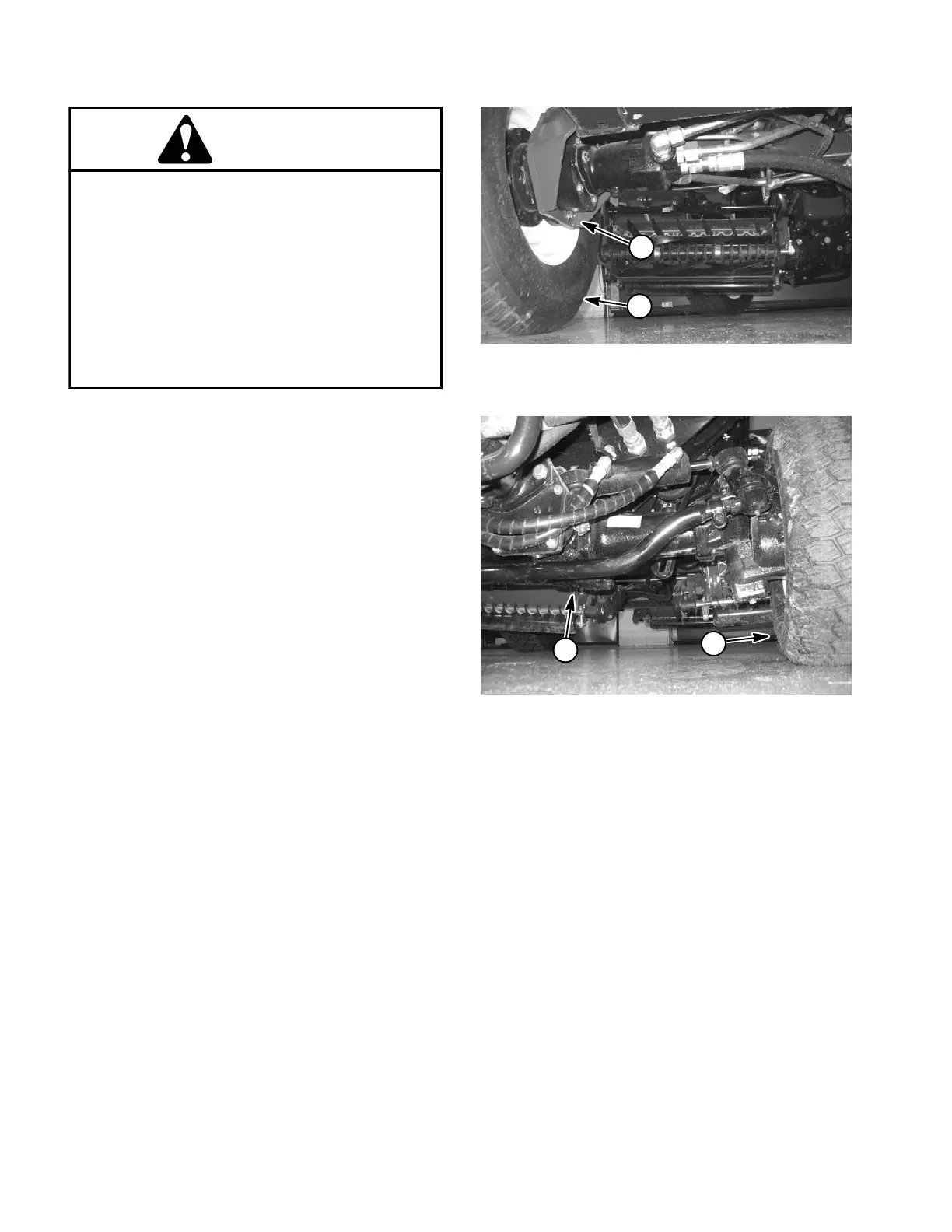

Jacking the Front End (Fig. 1)
1. Apply parking brake and chock both rear tires to pre-
vent the machine from moving.
IMPORTANT: Do not place jack, jack stands or
blocks under the wheel motors. Wheel motors can
be damaged if used for jacking or support points.
2. Position jack securely under the frame, just to the in-
side of the front tire.
3. Jack front of machine off the ground.
4. Position appropriate jack stands under the frame as
close to the wheels as possible to support the machine.
Jacking the Rear End (Fig. 2)
1. Apply parking brake and chock both front tires to pre-
vent the machine from moving.
2. Place jack securely under the center of rear axle.
3. Jack rear of machine off the ground.
4. Position appropriate jack stands under the rear axle
to support the machine.
1. Frame 2. Front tire (RH shown)
Figure 1
2
1
1. Rear axle 2. Rear tire (RH shown)
Figure 2
1
2
