Reelmaster 7000- DHydraulic System Page 5 - 134
Engine Cooling Fan Motor Service

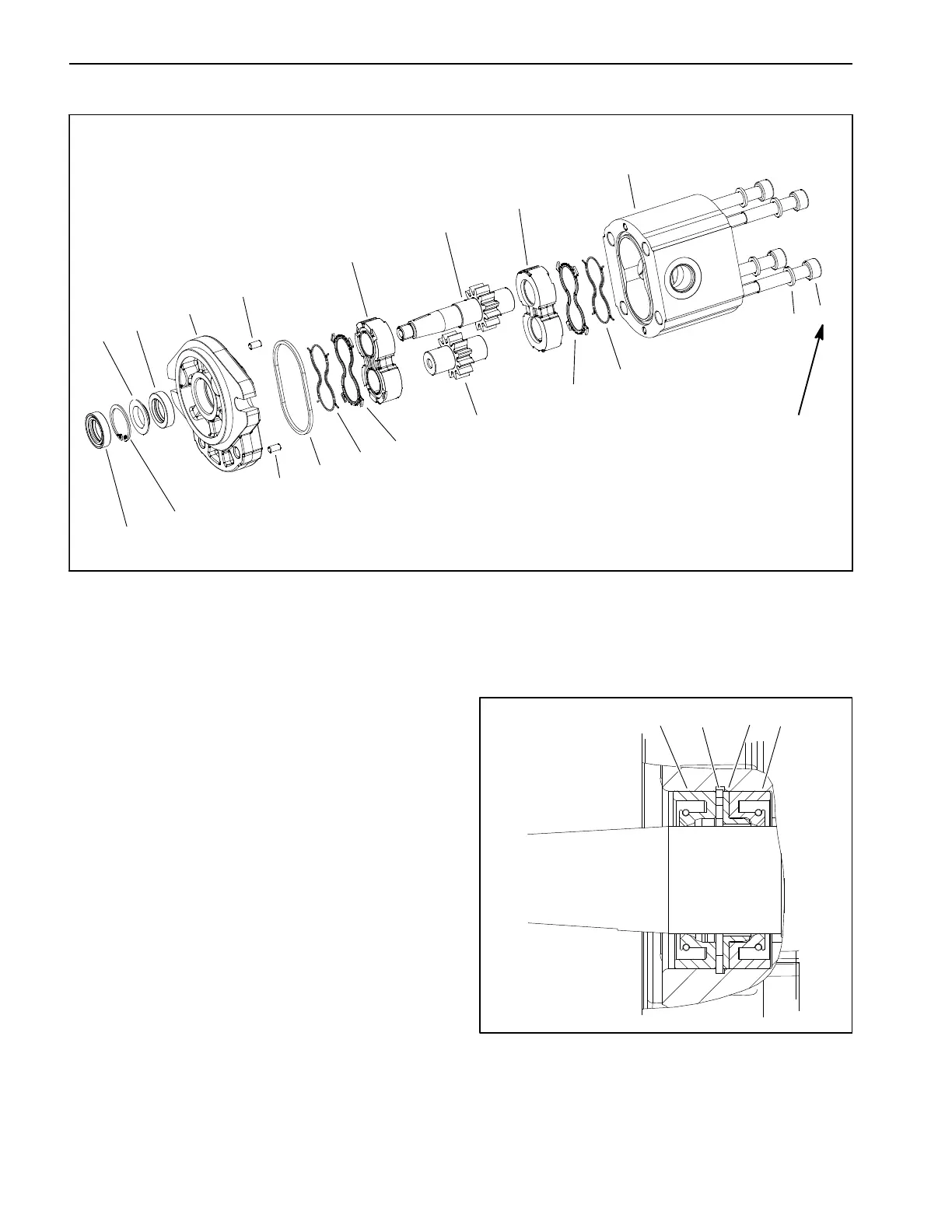

1. Flange washer
2. O- ring
3. Front flange
4. Dust seal
5. Retaining ring
6. Front wear plate
7. Shaft seal
8. Backup gasket
9. Pressure seal
10. Rear wear plate
11. Body
12. Idler gear
13. Cap screw (4)
14. Dowel (2)
15. Drive gear
16. Washer (4)
Figure 87
8
7
4
3
2
5
6
9
10
11
9
12
13
8
14
16
15
14
1
(45 N- m)
33 ft- lb
The engine cooling fan motor is similar to the cutting unit
motors. For disassembly, inspection and assembly pro-
cedures of the cooling fan motor, refer to Cutting Unit
Motor Service in this chapter.
Figure 88
1. Dust seal
2. Retaining ring
3. Flange washer
4. Shaft seal
1 234
