Reelmaster 7000−DBelt Driven Groomer (Optional) Page 10 − 14

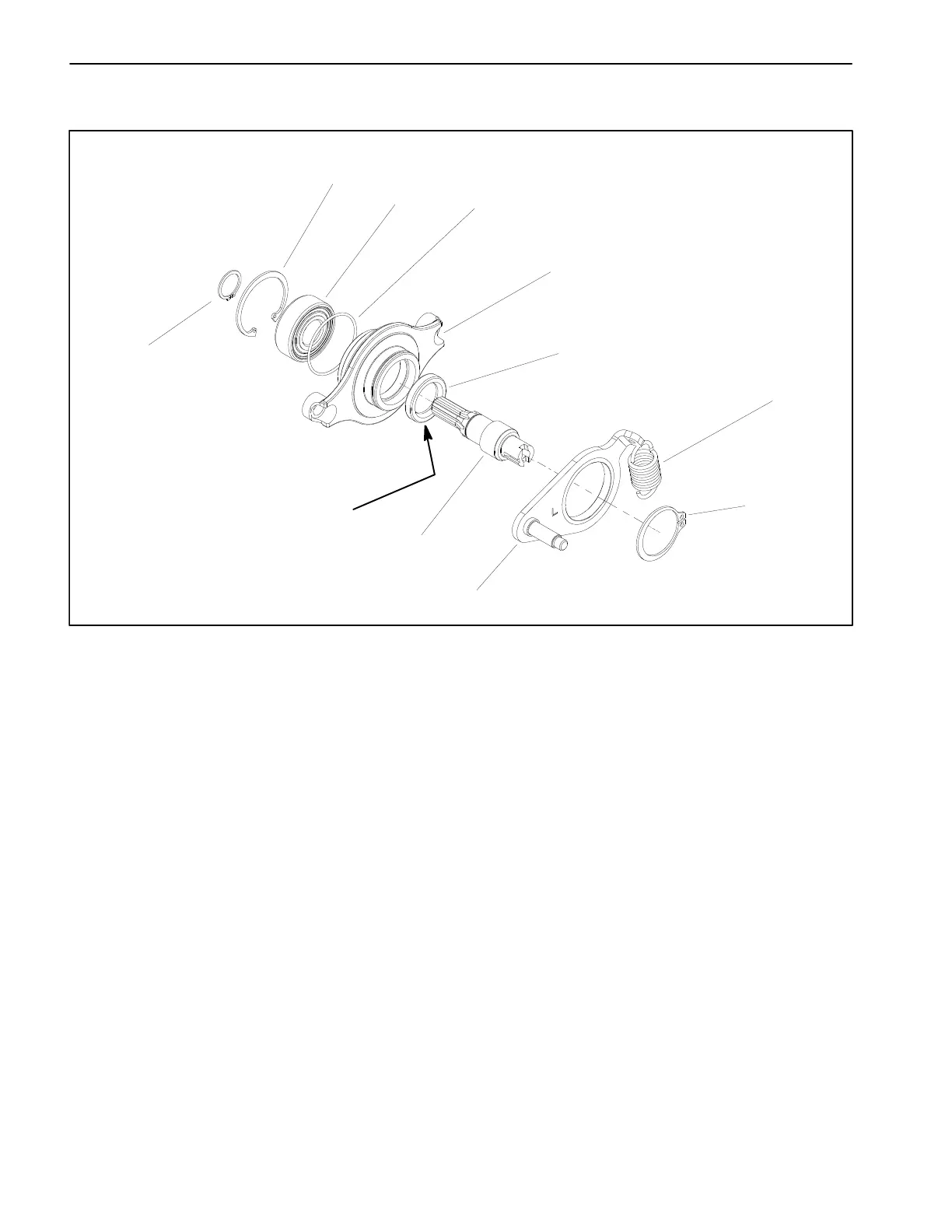

Groomer Pivot Hub
Figure 15
1. Groomer drive shaft
2. Ball bearing
3. Grease seal
4. Retaining ring
5. Pivot hub
6. Retaining ring
7. Extension spring
8. Retaining ring
9. Idler plate
10. O−ring (7” cutting unit only)
4
3
1
2
9
10
8
5
6
7
Apply Grease
to Seal Lip
NOTE: The groomer reel drive is located on the oppo-
site side of the cutting unit from the cutting reel hydraulic
motor. Figure 15 shows components used when the
groomer reel drive is on the left side of the cutting unit.
