Reelmaster 7000−D Belt Driven Groomer (Optional)Page 10 − 13
5. If groomer reel is equipped with broomer kit (Fig. 14),
position broomer brushes to reel blades and secure with
straps. Straps should be positioned between blades
1−2, 14−15, 28−29 and 41−42. Pull straps tight and cut
off strap extension approximately 1/4” (6 mm) beyond
retainer.
6. Place excluder seals on groomer shaft.
7. Install O−ring on non−drive end of groomer shaft.
8. Install groomer reel back on cutting unit (see Groom-
er Reel Installation in this section).

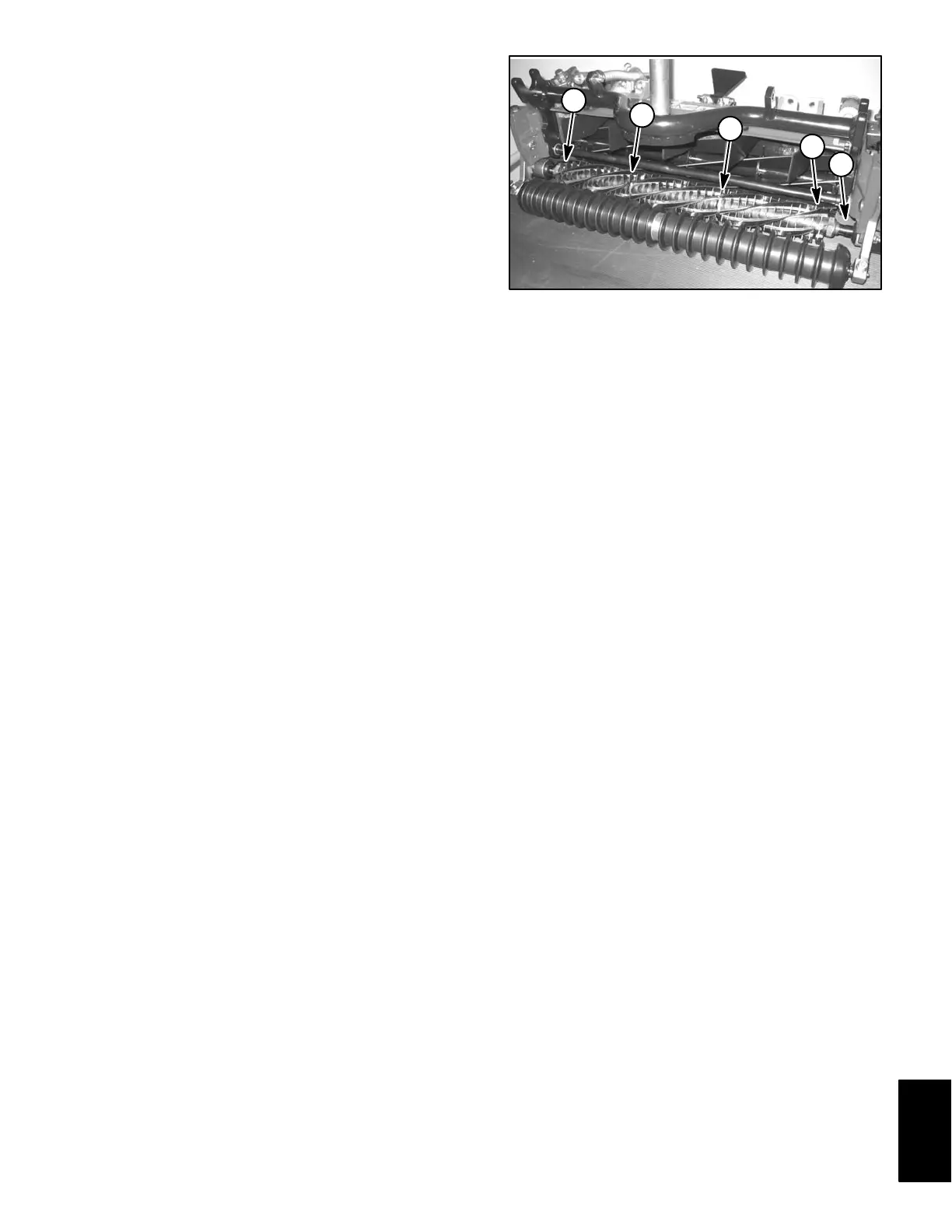

1. Groomer shaft 2. Broomer strap
Figure 14
1
2
2
2
2
Belt Driven
Groomer
To Next Page
