Reelmaster 7000−DHydraulic System Page 5 − 86
Adjustments
Control Manifold Relief Valve Adjustment
Several of the hydraulic control manifolds on your Reel-
master include adjustable relief valves. The following
procedure can be used to adjust these relief valves. Re-
fer to the Testing section of this chapter for information
on testing relief pressure.
NOTE: Do not remove relief valve from the hydraulic
manifold for adjustment.
1. Locate relief valve on control manifold.
2. Remove cap on relief valve with an allen wrench.
3. To increase pressure setting, turn the adjustment
socket on the valve in a clockwise direction. A 1/8 turn
on the socket will make a measurable change in relief
pressure.
4. To decrease pressure setting, turn the adjustment
socket on the valve in a counterclockwise direction. A
1/8 turn on the socket will make a measurable change
in relief pressure.
5. Install and tighten cap on relief valve.
6. Recheck relief pressure and readjust as needed.

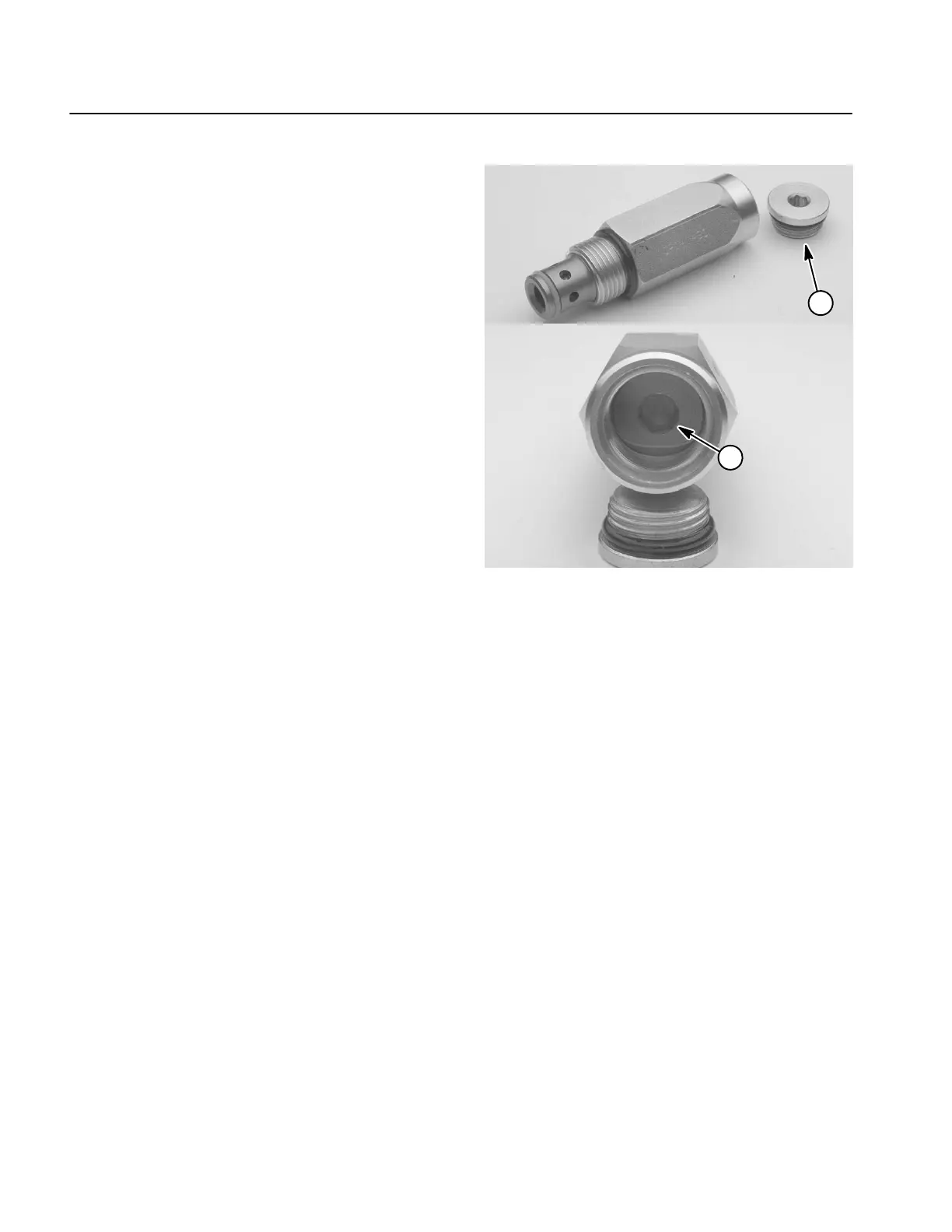

Figure 47
1. Relief valve cap 2. Adjustment socket
1
2
