Reelmaster 7000- DHydraulic System Page 5 - 106

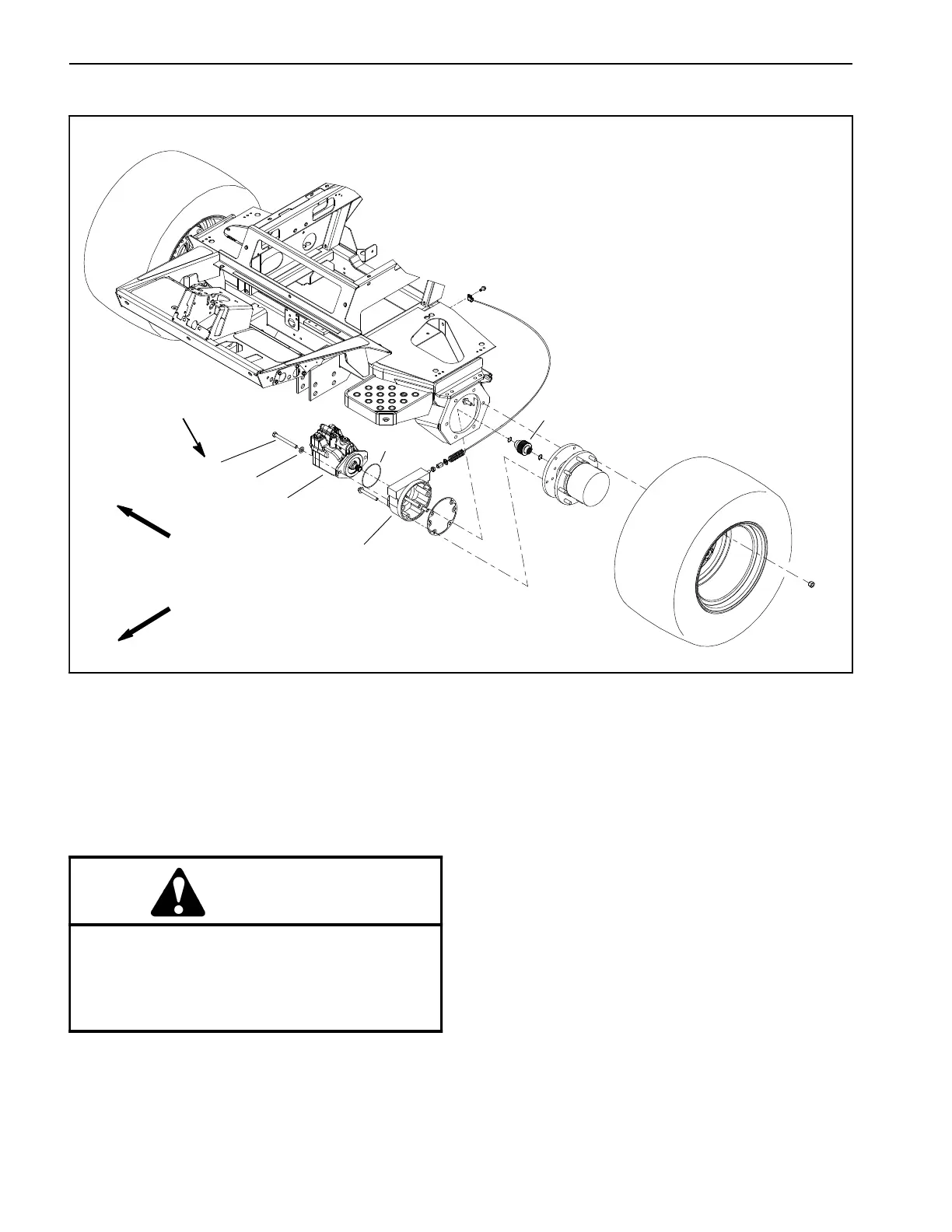

Front Wheel Motors
1. Wheel motor (2)
2. Cap screw (2 per motor)
3. Flat washer (2 per motor)
4. O- ring
5. Brake assembly (LH shown)
6. Splined brake shaft
Figure 63
5
6
3
4
2
1
FRONT
RIGHT
75 to 85 ft- lbs
(101 to 115 N- m)
Removal (Fig. 63)
1. Park machine on a level surface, lower cutting units,
stop engine, engage parking brake and remove key
from the ignition switch.
CAUTION
When changing attachments, tires or perform -
ing other service, use correct blocks, hoists and
jacks to raise and support machine. See Jacking
Instructions in Chapter 1 - Safety in this manual
for additional information and precautions.
2. Raise front of machine and support with jack stands.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the begin-
ning of this chapter.
4. To prevent contamination of hydraulic system during
wheel motor removal, thoroughly clean exterior of mo-
tor.
5. Disconnect hydraulic lines from wheel motor. Put
caps or plugs on lines and fittings to prevent contamina-
tion. Label the hydraulic lines to show their correct posi-
tion on the wheel motor for assembly purposes.
IMPORTANT: Support wheel motor to prevent mo-
tor from falling during removal.
6. Remove wheel motor.
7. Remove and discard O- ring (item 16) from flange of
wheel motor.
8. If hydraulic fittings are to be removed from wheel mo-
tor, mark fitting orientation to allow correct assembly
(Figs. 64 and 65). Remove fittings from motor and dis-
card O- rings.
