Reelmaster 7000- DHydraulic System Page 5 - 124
Steering Control Valve Service
1. Relief valve assembly
2. Dust seal ring
3. Steering valve housing
4. Shaft seal
5. Thrust washer
6. Bearing race
7. Ring
8. Spring set
9. Cross pin
10. Sleeve
11. Spool
12. Cardan shaft
13. O- ring
14. Distributor plate
15. Outer gearwheel
16. Inner gearwheel
17. End cover
18. Tube (2)
19. Washer (5)
20. Pin bolt
21. Cap screw (4)
22. Ball

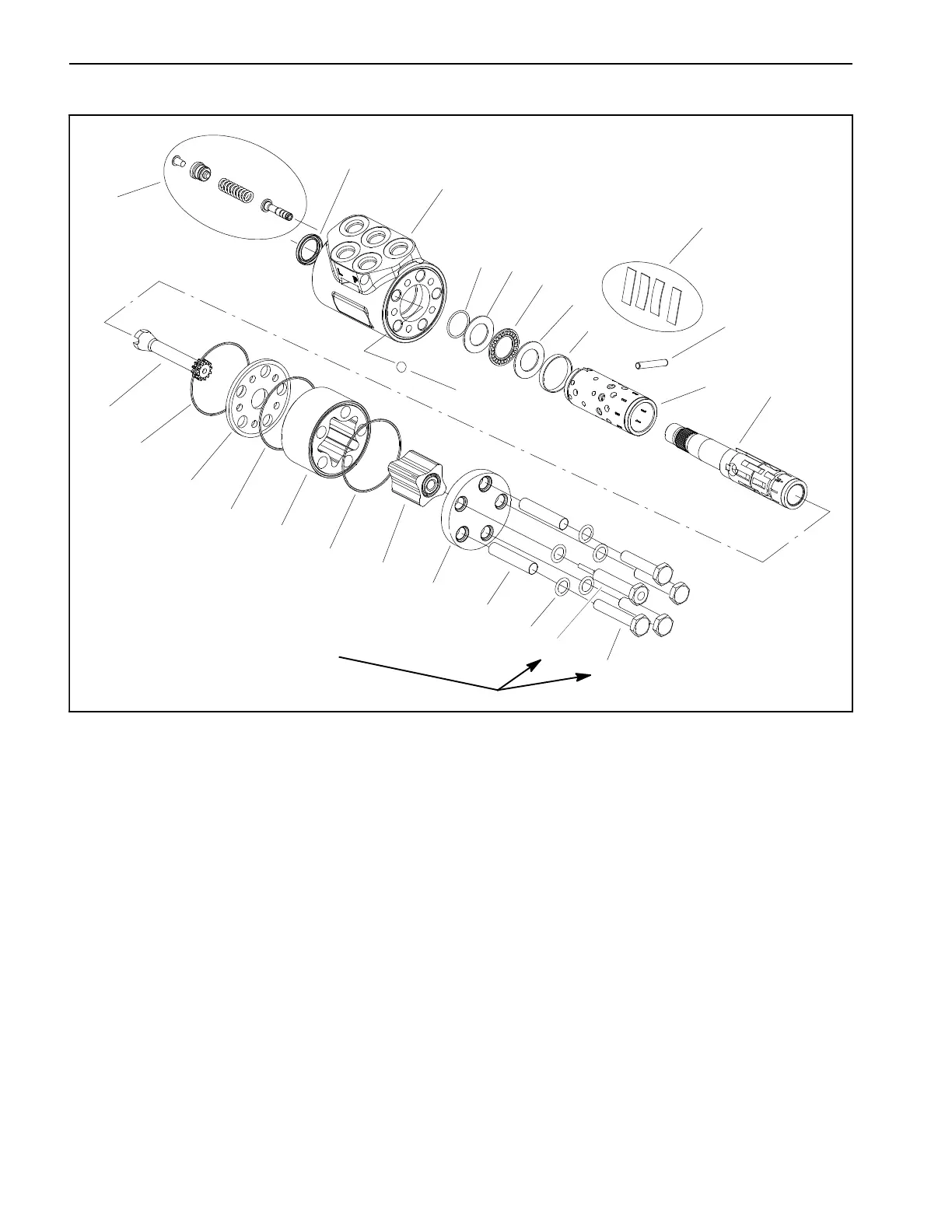

Figure 82
3
5
6
9
10
16
11
12
13
14
15
4
7
1
2
17
18
19
20
21
8
5
13
13
22
20 to 24 ft- lb
(27 to 33 N- m)
NOTE: For repair of the steering control valve, see the
Sauer- Danfoss Steering Unit Type OSPM Service
Manual at the end of this chapter.
