Reelmaster 7000- DHydraulic System Page 5 - 150

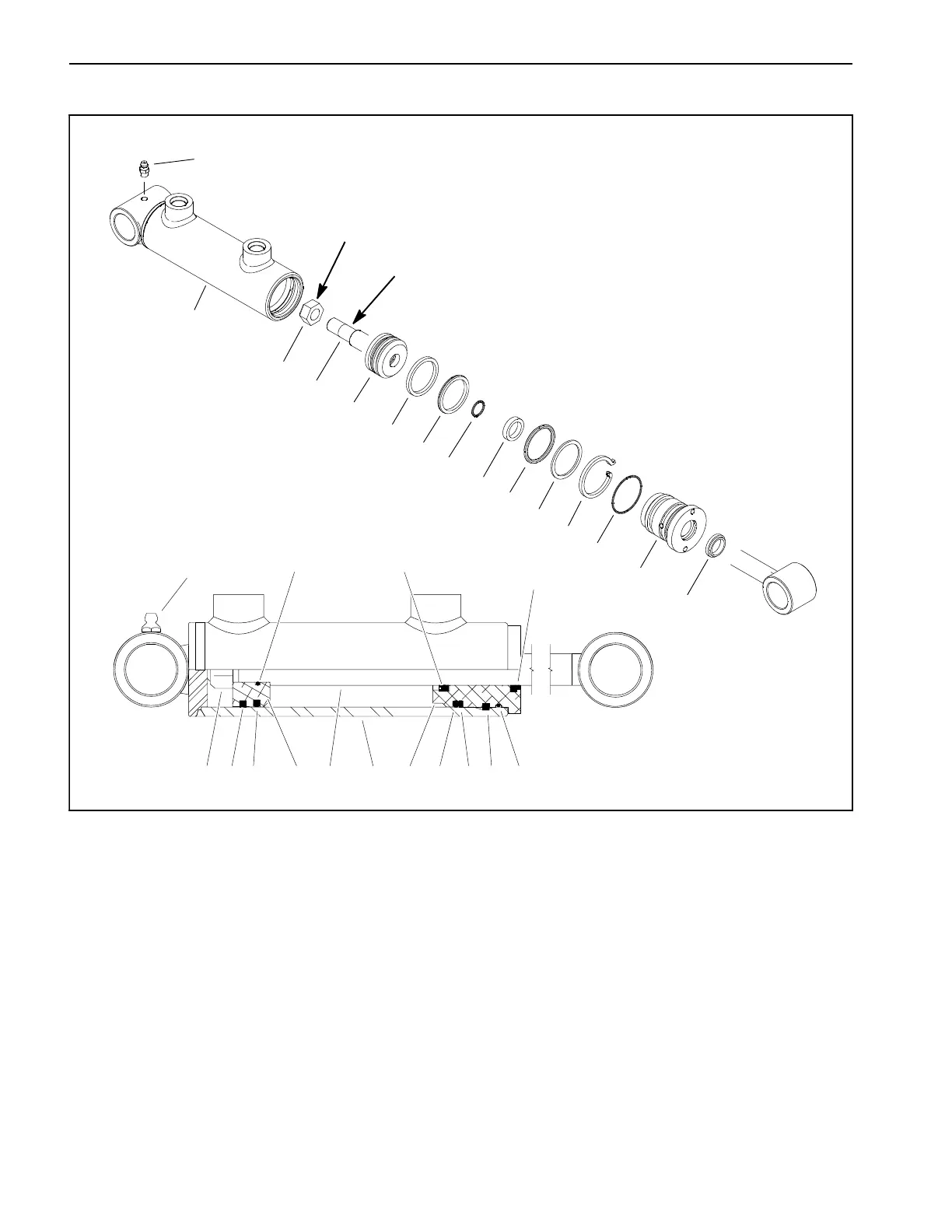

Lift Cylinder Service
1. Barrel
2. Lock nut
3. Wear ring
4. Piston seal
5. O- ring
6. Piston
7. Rod
8. Head seal
9. Head
10. O- ring
11. Back - up
12. Retaining ring
13. O- Ring
14. Dust seal
15. Grease fitting
Figure 100
35 to 45 ft- lb
(48 to 61 N- m)
Loctite #271
1
23
4
5
67
8
9
10
11
12
13
14
15
1
3
4
5
6
7
2
8
9101112
14
13
15
NOTE: The lift cylinders used on the Reelmaster
7000- D are all very similar regardless of the location on
the machine. The disassembly and assembly procedure
is the same for all lift cylinders.
