Reelmaster 7000- DHydraulic System Page 5 - 110
Front Wheel Motor and Rear Axle Motor Service
Figure 67
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
21
25

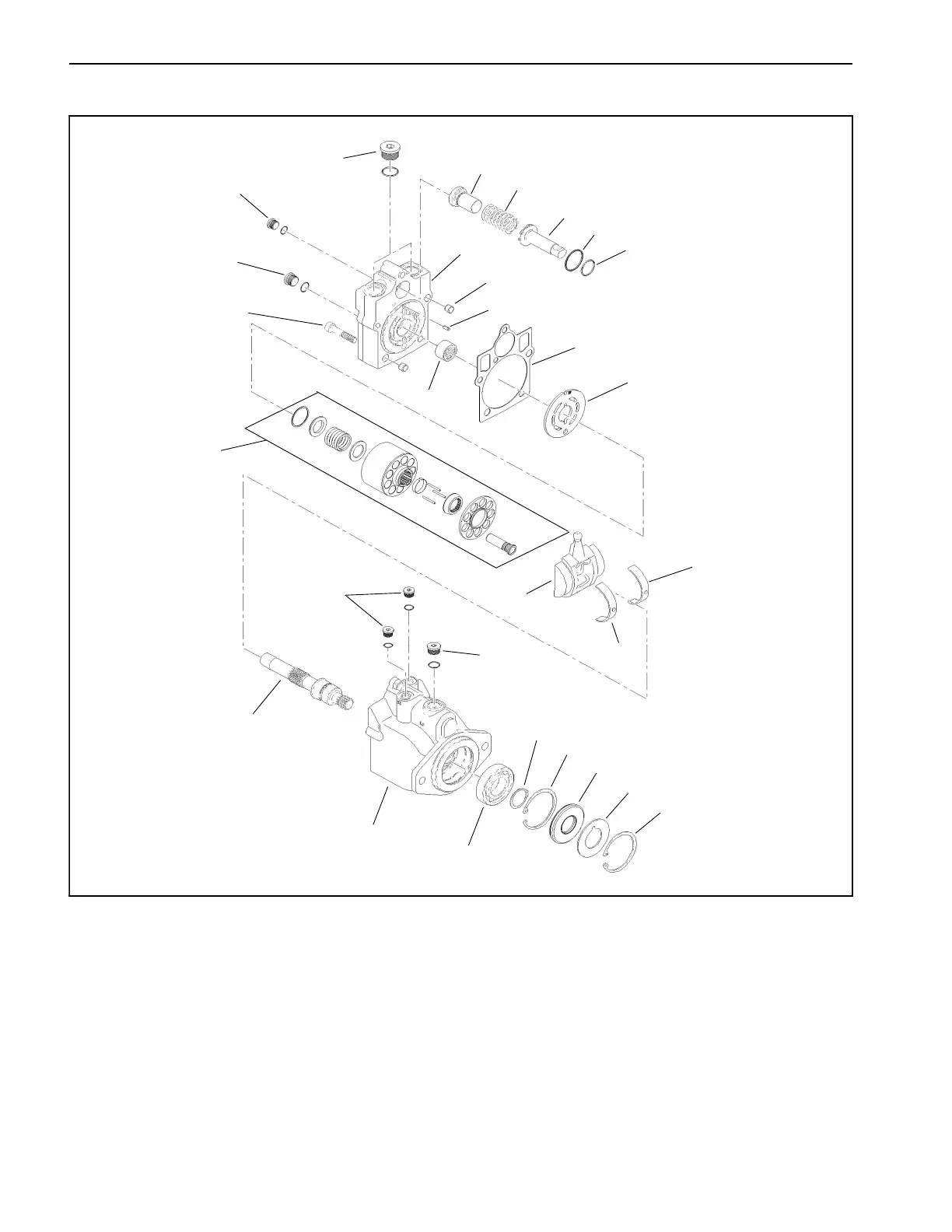

1. Plug with O- ring
2. Minimum angle stop
3. Bias spring
4. Servo piston
5. O- ring
6. O- ring
7. Socket head screw (5)
8. End cap
9. Dowel
10. Dowel pin
11. Bearing
12. Gasket
13. Valve plate
14. Cylinder block kit
15. Swashplate
16. Swashplate bearing assembly
17. Output shaft
18. Housing
19. Bearing
20. Retaining ring
21. Retaining ring (2)
22. Seal
23. Support washer
24. Plug with O- ring (3)
25. Plug with O- ring (2)
24
16
24
25
