Reelmaster 7000- DHydraulic System Page 5 - 118

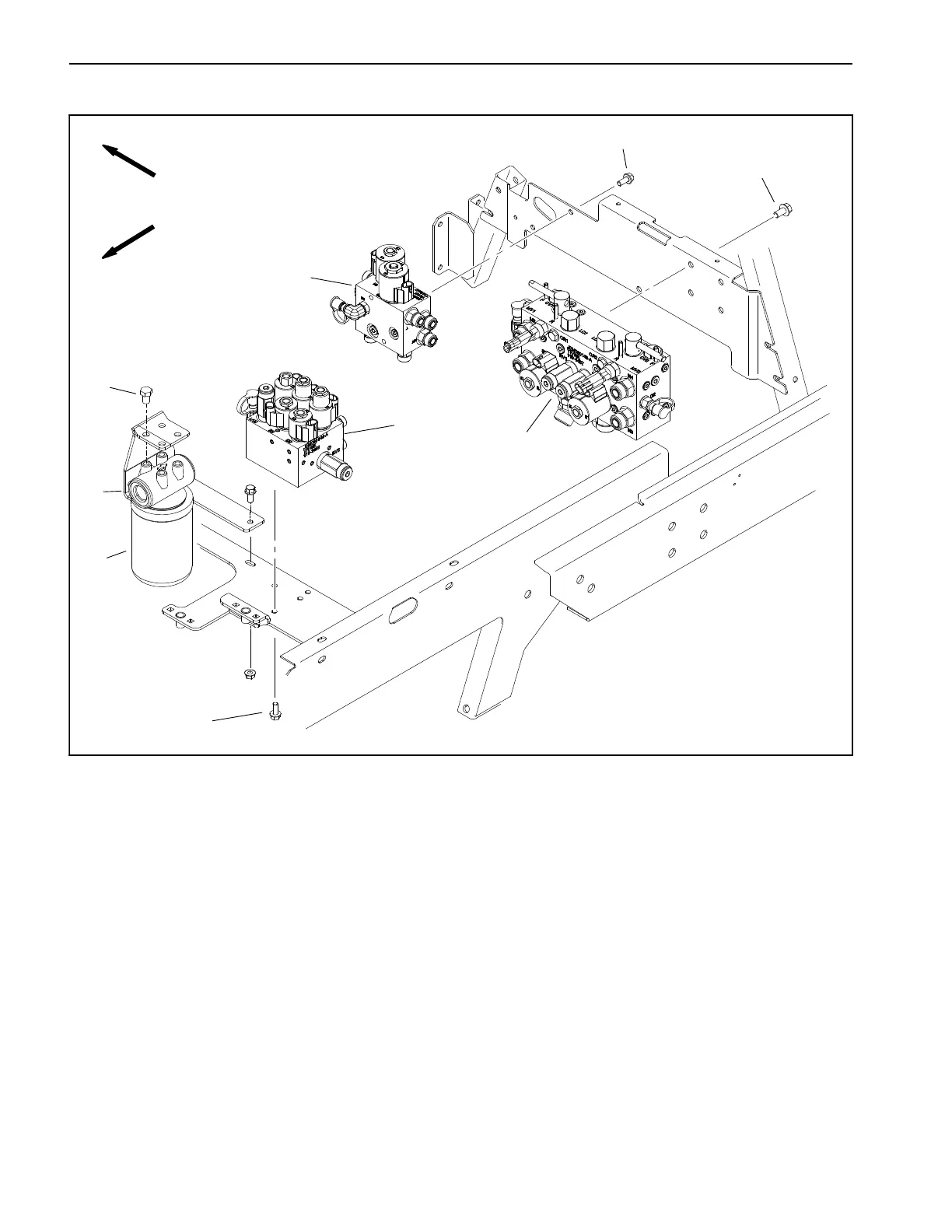

Mow Control Manifold
FRONT
RIGHT
1. Mow control manifold
2. Flange head screw (4)
3. Fan control manifold
4. Flange head screw (2)
5. Lift manifold
6. Flange head screw (2)
7. Charge filter head
8. Charge filter element
9. Cap screw (4)
Figure 75
7
8
1
3
2
5
4
6
9
NOTE: The ports on the manifold are marked for easy
identification of components. Example: P1 is the supply
connection for the front cutting units (see Hydraulic
Schematic in Chapter 10 - Foldout Drawings to identify
the function of the hydraulic lines and cartridge valves
at each port).
