Reelmaster 7000- D Hydraulic SystemPage 5 - 155
NOTE: The hydraulic oil cooler on your Reelmaster
7000- D is combined with the radiator. See Radiator and
Oil Cooler Assembly in Chapter 3 - Yanmar Diesel En-
gine (Model 03780) or Chapter 4 - Kubota Diesel En-
gine (Model 03781) in this manual for information on
removal and installation of the radiator/oil cooler as-
sembly.

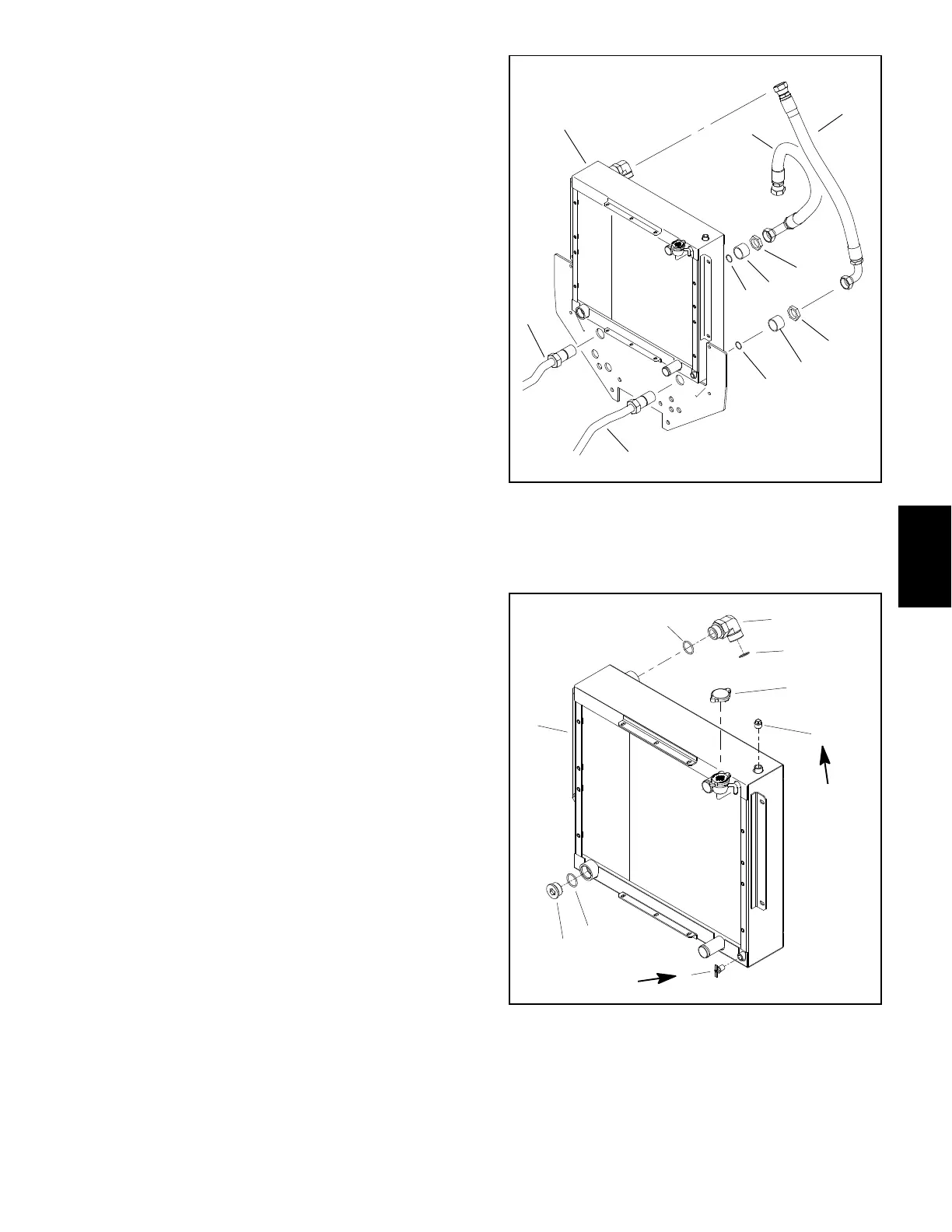

1. Radiator/oil cooler
2. Hydraulic tube
3. Hydraulic tube
4. Hydraulic hose
5. Bulkhead nut
6. Spacer
7. O- ring
Figure 103
1
4
2
3
4
5
6
7
7
6
5
1. Radiator/oil cooler
2. O- ring
3. 90_ Hydraulic fitting (2)
4. O- ring
5. Radiator cap
6. Coolant plug
7. Draincock
8. Hydraulic plug
Figure 104
1
3
2
4
5
6
7
8
2
Thread sealant
Thread
sealant
Hydraulic
System
