9. Disconnect voltage and test leads from the relay ter-
minals.
10.If testing determines that the relay is not functioning
correctly, replace the relay.
11.If the relay tests correctly and a circuit problem still
exists:
A. Check wire harness (see Electrical Schematic
and Wire Harness Drawings in Chapter 10 − Foldout
Drawings in this manual).
B. Use the InfoCenter Display to check specific TEC
output operation (see InfoCenter Display in this
chapter).
12.Secure relay to mounting bracket and connect wire
harness connector to relay.
13.Secure all removed components to machine.
14.Connect positive (+) cable to battery and then con-
nect negative (−) cable to battery (see Battery Service
in this chapter).

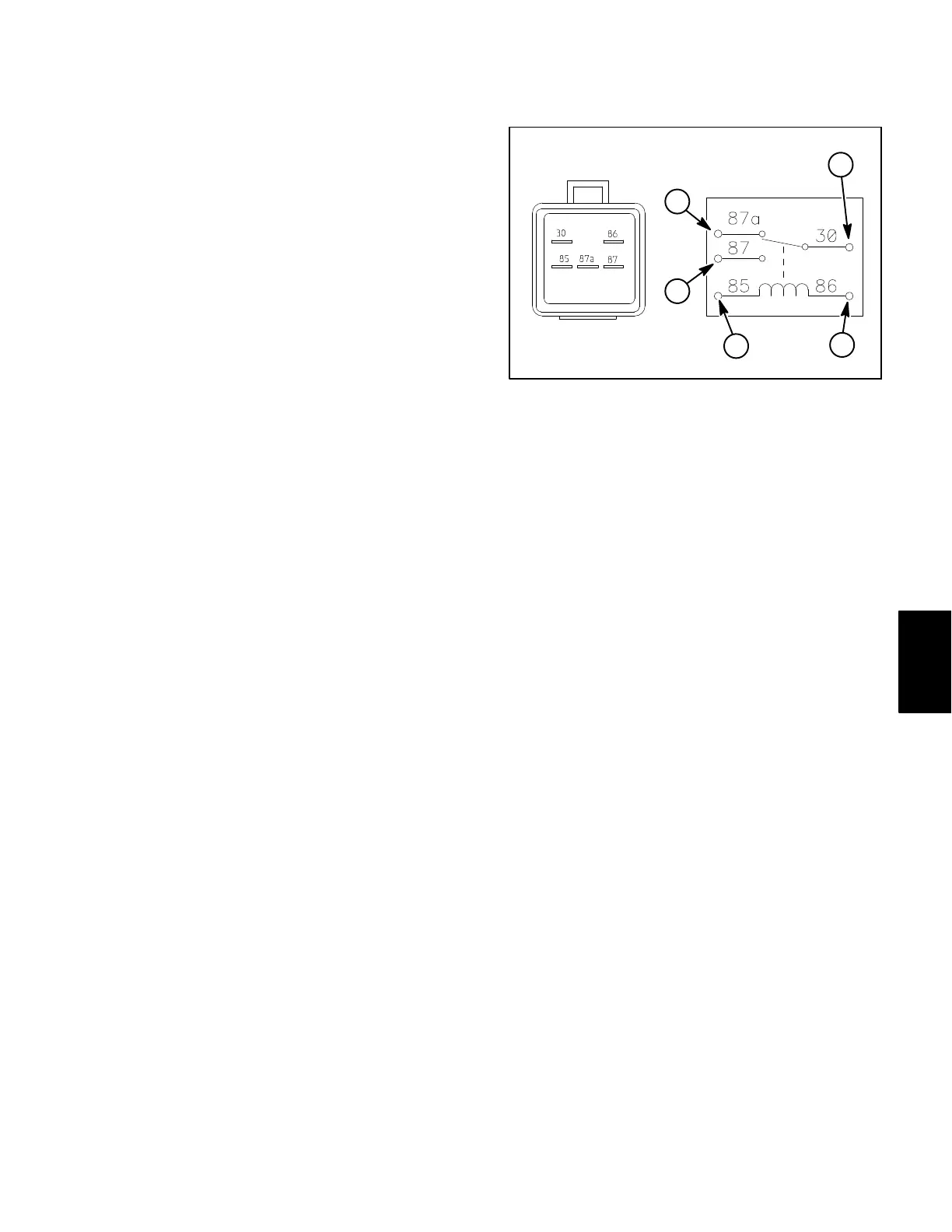

Figure 60
1
3
3
1. Coil terminal
2. Common terminal
3. Normally closed term.
4. Normally open term.
1
4
Electrical
System
