Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 31
1. Frame
2. LH side plate
3. RH side plate
4. Shoulder bolt (6)
5. Carrier frame
6. Flange head screw (2)
7. Flange bushing (2)
8. Rear grass shield
9. Spacer (2)
10. Shim (0.060” -- as required)
11. Flange nut (6)
12. Special screw
13. Flat washer
14. Cap screw
15. Washer (2)
16. Support rod

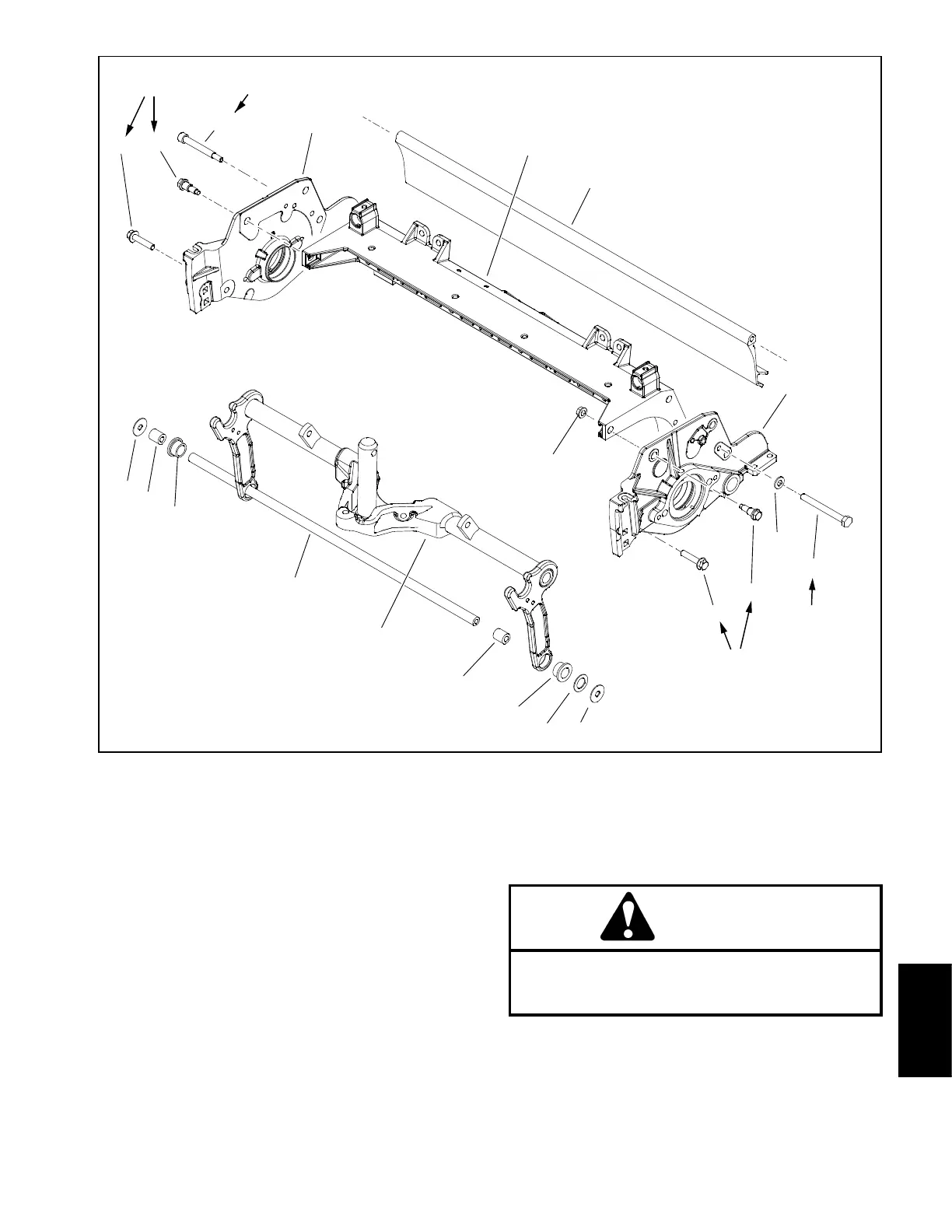

Figure 40
11
12
13
14
15
15
16
27 to 33 ft--lb
(37 to 44 N--m)
27 to 33 ft--lb
(37to44N--m)
15 to 19 ft--lb
(20to25N--m)
15 to 19 ft--lb
(20 to 25 N--m)
1
2
3
4
4
5
6
6
7
7
8
9
9
10
Reel Assembly Removal
1. Position machine on a clean and level surface, lower
cutting units, stop engine, engage parking b rake and r e-
move key from the ignition switch.
2. Remove the cutting unit from the machine and place
on a flat work area.
3. If cutting unit is equipped with a counterweight or ac-
cessory on LH side plate, remove the counter weight or
accessory. Remove and discard O--ring from counter
weight. See Chapter 10 -- Belt Driven Groomer or Chap-
ter 10 -- Universal Groomer for more information. See
Rear Roller Brush in this chapter for more information.
CAUTION
Contact with the reel, bedknife or other cutting
unit parts can result in personal injury. Use
heavy gloves when removing the cutting reel.
IMPORTANT: If the reel bearings or seals are being
replaced, the reel spline inserts must be removed.
Use the following procedure to restrain the reel and
loosen the spline insert before removing the rollers.
DPA Cutting
Units
To Next Page
