Reelmaster 7000--D Universal Groomer (Optional)Page 11 -- 9

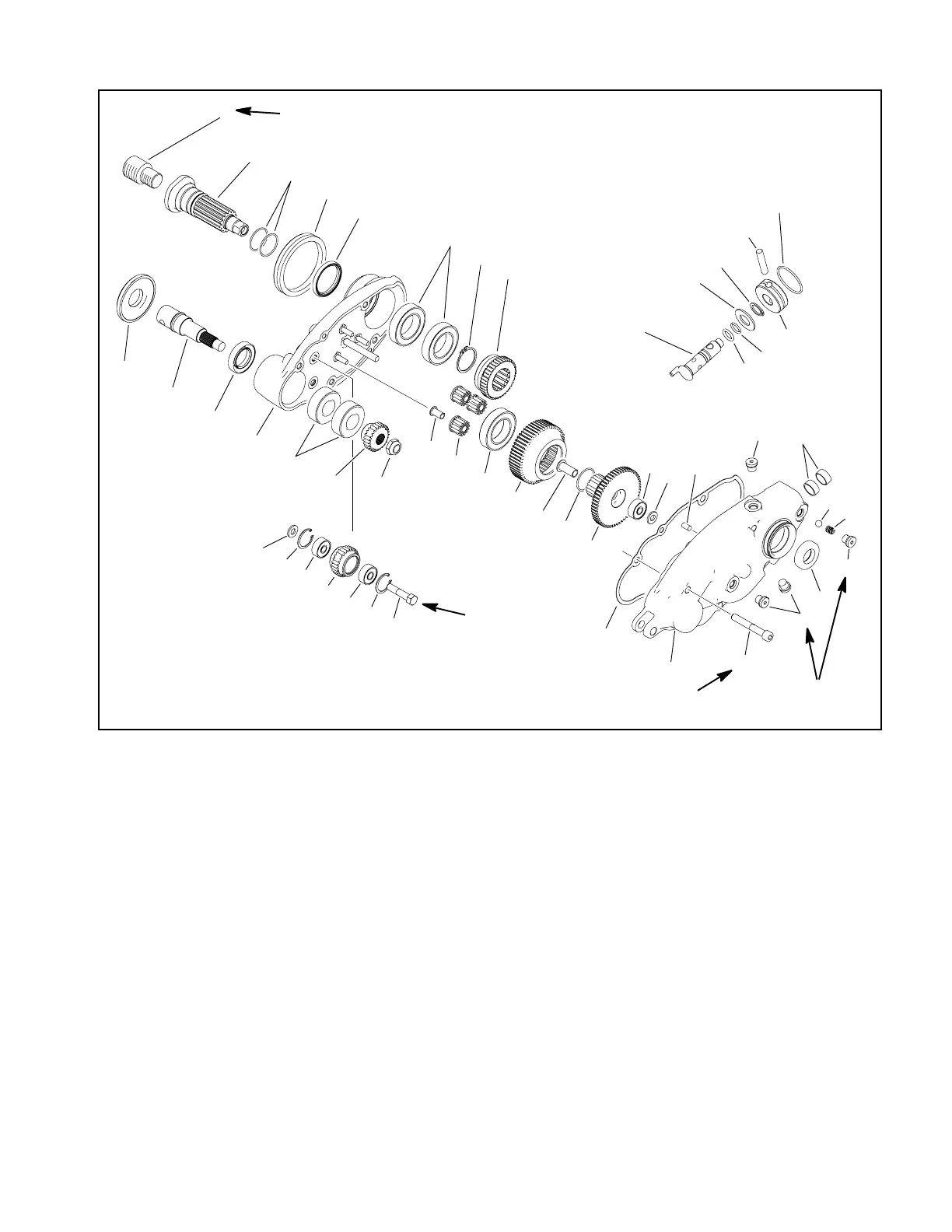

Disassembly (Fig. 6)
Figure 6
1. Threaded adapter
2. Input shaft
3. O--Ring (2)
4. V--Ring
5. Seal
6. Bearing (2)
7. Retaining ring
8. Slider gear
9. Shifter shaft
10. Thrust washer
11. Retaining ring
12. Dowel pin
13. O--ring
14. Knob
15. O--ring
16. O--ring
17. Bushing (2)
18. Drain/fill plug (4)
19. Ball
20. Detent spring
21. Seal
22. Socket head screw (4)
23. Cover
24. Gasket
25. Thrust washer
26. Bearing
27. Sun gear
28. O--ring
29. Bushing
30. Ring gear
31. Bearing
32. Planet gear (3)
33. Bushing (3)
34. Lock nut
35. Output gear
36. Bearing (2)
37. Housing
38. Seal
39. Output shaft
40. Shield
41. Dowel pin (2)
42. Thrust washer (2)
43. Retaining ring (2)
44. Bearing (4)
45. Idler gear (2)
46. Cap screw (2)
11
12
13
14
15
16
17
18
18
18
19
20
1
2
3
4
5
6
7
8
9
10
21
22
23
24
25
26
27
28
41
29
30
31
32
33
34
35
36
37
38
39
40
42
43
44
45
44
43
46
85 to 95 in--lb
(9 to 11 N--m)
Tighten to Specified Torque
(see text)
32 to 42 in--lb
(4 to 5 N--m)
115 to 125 ft -- lb
(156 to 169 N--m)
