RemovingtheBelt-DriveAssembly

Walk-BehindUnitsOnly

Note:Retainallpartsinthissection,exceptwhere

noted.

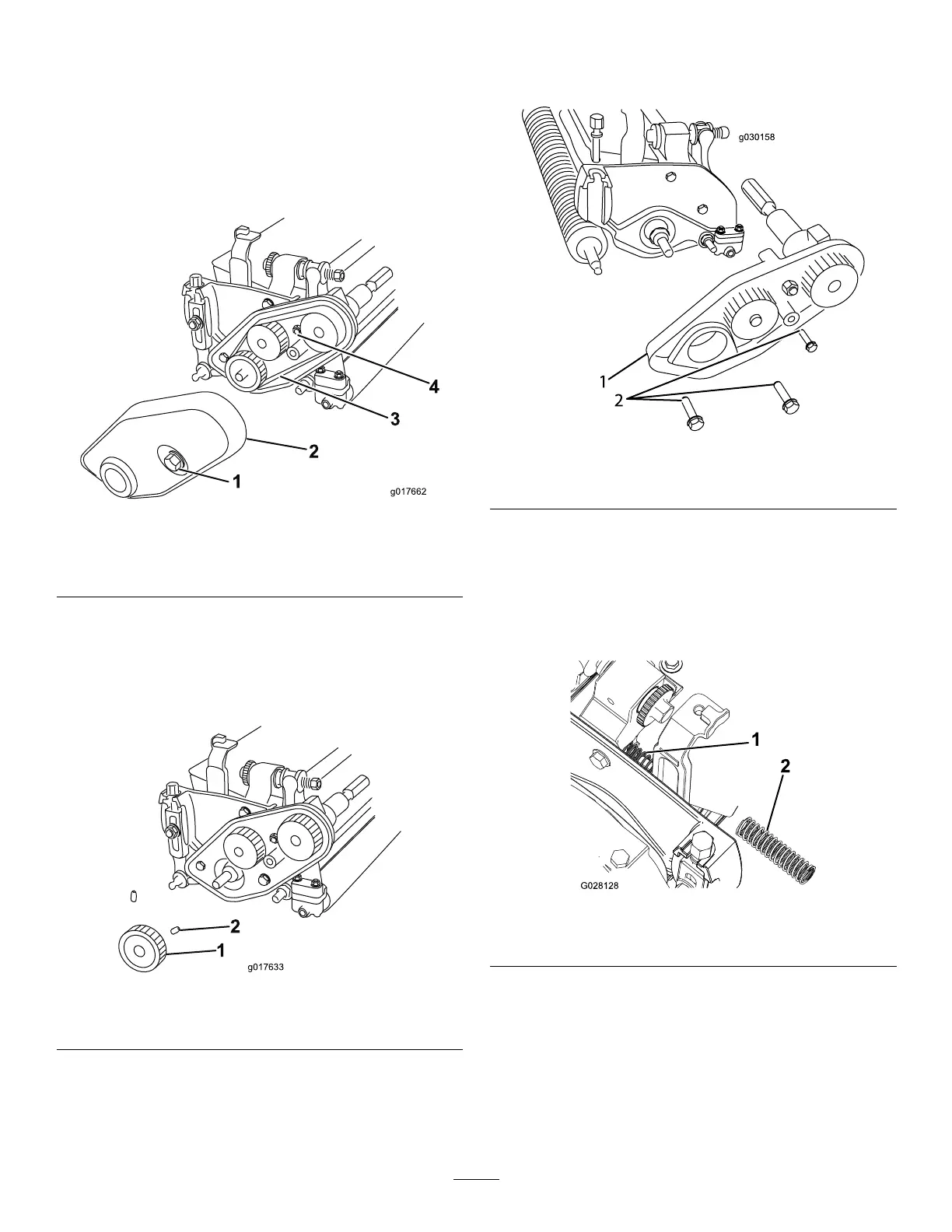

1.Loosenthecaptiveboltsecuringthebeltcover

totheleftendofthecuttingunituntilyoucan

removethecover(Figure4).

g017662

Figure4

1.Belt-coverbolt(captive)

3.Belt

2.Beltcover4.Belt-tensioningnut

2.Loosenthebelttensioningnutandremovethe

belt(Figure4).

3.Loosenthe2setscrewssecuringthelower

pulleyandremovethepulleyfromthereelshaft

(Figure5).

g017633

g017663

Figure5

1.Lowerpulley

2.Setscrew

4.Removethe3boltssecuringthebelt-drive

assemblytothecuttingunit,ifequipped,and

removethewholeassembly(Figure6).

g030158

Figure6

1.Driveassembly2.Bolt

5.Usealong-noseplierstoremovetheexisting

compressionspringsonbothsidesofthecutting

unitandreplacethemwiththenewinnerand

outercompressionsprings(Figure7).

Note:Discardtheexistingcompression

springs.

g028128

Figure7

1.Innercompressionspring

2.Outercompressionspring
