Toro 04260 User Manual

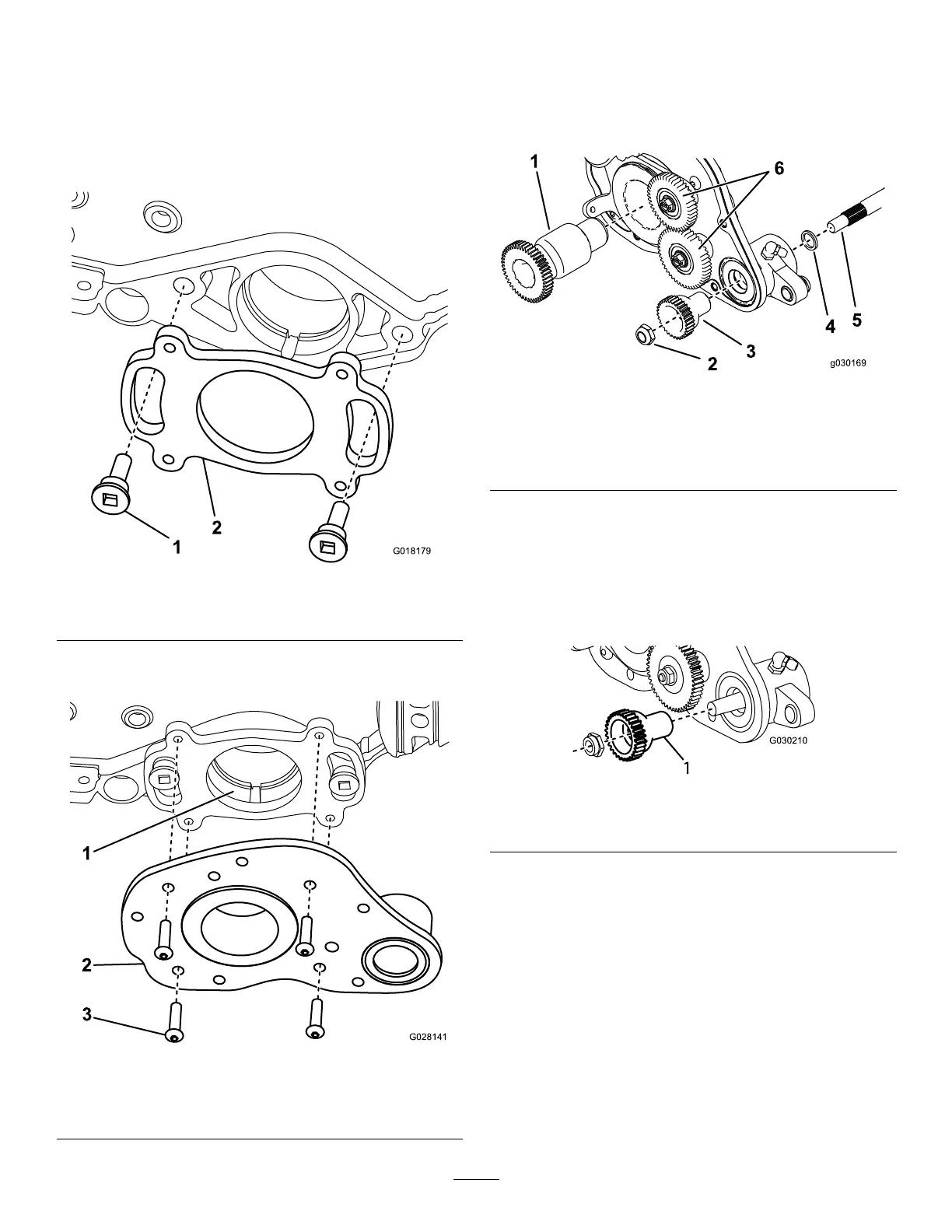

InstallingtheGearsandGroomer
Shaft
1.Securetherearmountingplateusing2shoulder
boltsasshowninFigure8.
Note:Makesurethatthesideplaterotates
freely.
1
2
G018179
g018179
Figure8
1.Shoulderbolt
2.Rearmountingplate
2.PutalightcoatingofgreaseontheO-ringand
thepilotbore(Figure9).
3
G028141
g028141
Figure9
1.Pilotbore
3.Screw
2.Driveassembly
3.Securethedriveassemblytotherearmounting
platewith4screws(Figure9).
4.Applygreasetothesealinthedriveassembly
bearingsupportandtothesplinedendofthe
groomershaft(Figure10).
g030169
Figure10
1.Drivegear
4.Spacer
2.Drivengearlocknut
5.Groomershaft
3.Drivengear6.Idlergears
5.Installthespacerontothesplinedendofthe
groomershaft.
6.Slidethesplinedendofthegroomershaftinto
thedrive-assembly-bearingsupport(Figure10).
7.Applygreasetothesealsurfaceofthedriven
gear,asshowninFigure11.
g030210
Figure11
1.Applygreasehere.
8.Securethegeartothegroomershaftwiththe
drivengearlocknut(Figure10).
9.Torquethelocknutto23to28N·m(17to21
ft-lb).
10.Applygreasetothesealintheleftsupport-plate
bearingsupportandtotheendofthegroomer
shaft.
11.Inserttheotherendofthegroomershaftintothe
leftsupportplate(Figure6).
12.IfyouareinstallingthekitonaTriFlex3300,
3320,3400,or3420machine,proceedtostep
13.Ifyouareinstallingthekitonawalk-behind
unit,performthefollowingsteps:
5
