Toro 20199 - Handle and Starting; Adjusting the Handle Height; Starting the Engine

1
2
3
4
5
6
7

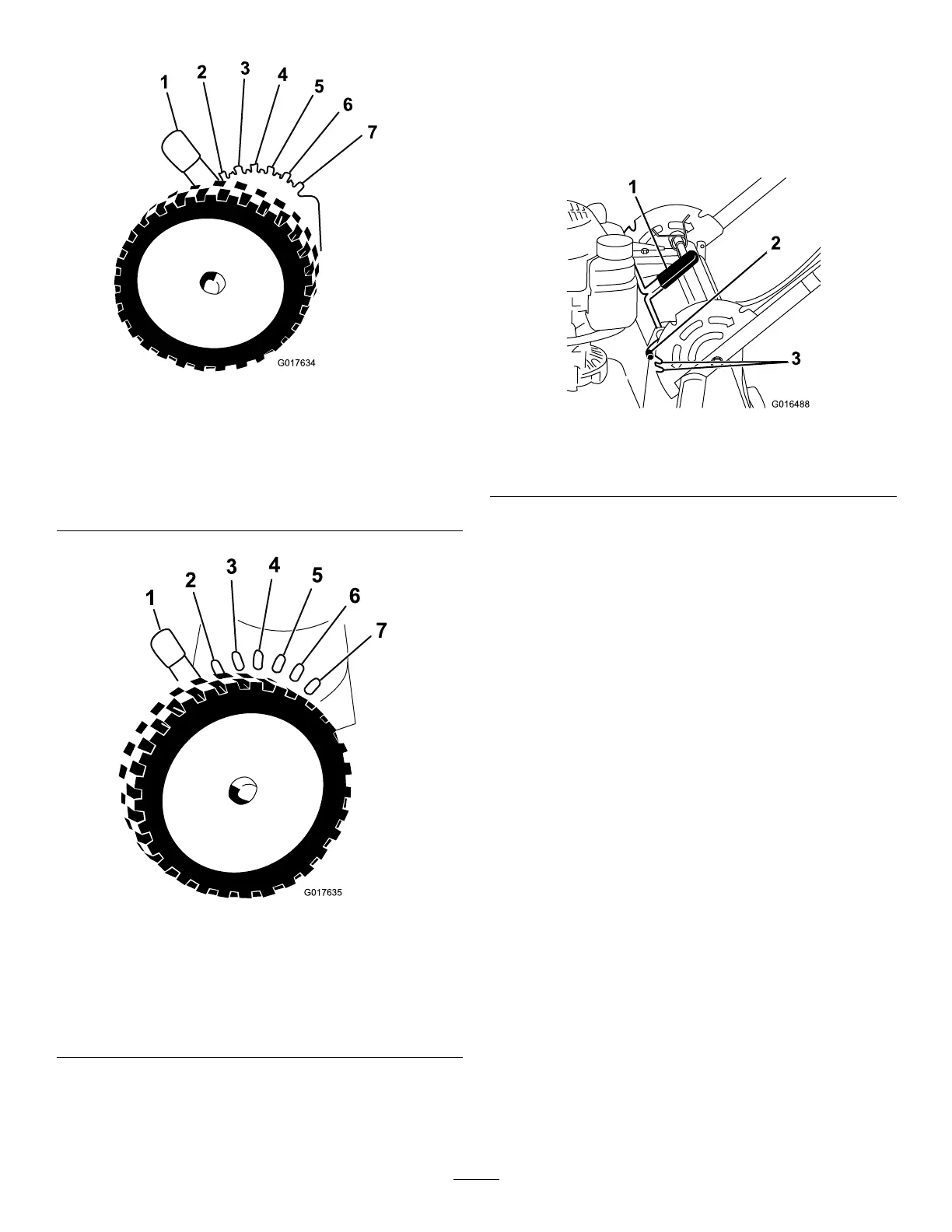

G017634
Figure14
Frontcutting-heightlever
1.A:10.8cm(4-1/4inches)5.E:5.7cm(2-1/4inches)
2.B:9.5cm(3-3/4inches)6.F:4.4cm(1-3/4inches)
3.C:8.3cm(3-1/4inches)7.G:3.2cm(1-1/4inches)
4.D:7.0cm(2-3/4inches)
1
2
3
4
5
6
7
G017635
Figure15
Rearcutting-heightlever
1.A:10.8cm(4-1/4inches)5.E:5.7cm(2-1/4inches)
2.B:9.5cm(3-3/4inches)6.F:4.4cm(1-3/4inches)
3.C:8.3cm(3-1/4inches)7.G:3.2cm(1-1/4inches)
4.D:7.0cm(2-3/4inches)
AdjustingtheHandleHeight
Youcanraiseorlowerthehandletoapositionmore
comfortableforyou.
1.Liftthehandleslightlyandpullthehandle-locklever
rearwardtodisengagethehandle-lockpins(Figure16).
2
G016488
3
1
Figure16
1.Handle-locklever3.Notches
2.Handle-lockpin(2)
2.Rotatethehandleandalignthedesirednotchinthe
handlebrackettothehandle-lockpins;refertoFigure
16.
3.Releasethehandle-locklevertosecurethehandlein
place.
StartingtheEngine
StandardModel
Pulltherecoilhandleslowlyuntilyoufeelresistance,thenpull
itsharply.Allowtheropetoreturntotheengineslowly.
Note:Ifthemachinedoesnotstartafterseveralattempts,
contactanAuthorizedServiceDealer.
Electric-startModel
Youcanstarttheengineonanelectric-startmodelbyusing
eithertheignitionkeyortherecoil-starthandle.
•IgnitionKey:
TurnandholdtheignitionkeytotheStartposition
(Figure17);whentheenginestarts,releasethekey.
Important:Donotattempttostarttheenginewith
theblade-controlbarengaged;otherwise,youmay
blowthefuse.
Note:DonotholdtheignitionkeyintheStartposition
forlongerthan5secondstopreventburningoutthe
startermotor.
