Toro 20199 User Manual

g016484
1
2

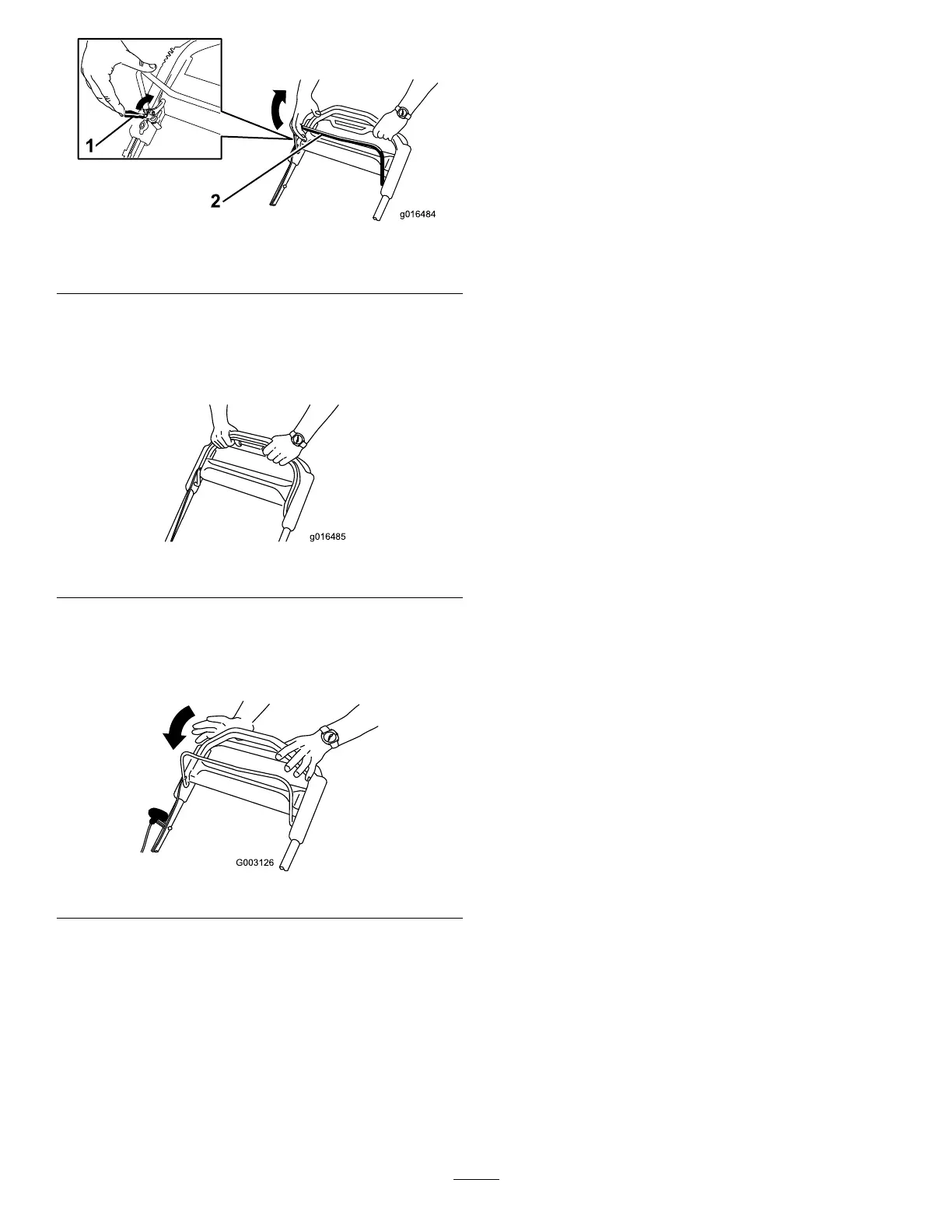

Figure21
1.Blade-controlbarlock2.Blade-controlbar
2.Slowlypulltheblade-controlbarbacktothehandle
(Figure21).
3.Holdtheblade-controlbaragainstthehandle(Figure
22).
g016485
Figure22
DisengagingtheBlade
Releasetheblade-controlbar(Figure23).
Figure23
Important:Whenyoureleasetheblade-controlbar,
thebladeshouldstopwithin3seconds.Ifitdoesnot
stopproperly,stopusingyourmachineimmediatelyand
contactanAuthorizedServiceDealer.
CheckingtheBlade-stop
SystemOperation
ServiceInterval:Beforeeachuseordaily
Checkthatthebladesstopwithin3secondsofreleasingthe
blade-controlbar.
UsingtheGrassBag
Youcanusethegrassbagtochecktheblade-stopsystem.
1.Removetherear-dischargeplug.
2.Installtheemptygrassbagonthemachine.
3.Starttheengine.
4.Engagetheblade.
Note:Thebagshouldbegintoinate,indicatingthat
thebladesarerotating.
5.Whilewatchingthebag,releasetheblade-controlbar.
Note:Ifthebagdoesnotdeatewithin3secondsof
releasingtheblade-controlbar,theblade-stopsystem
maybedeterioratingand,ifignored,couldresultin
anunsafeoperatingcondition.Havethemachine
inspectedandservicedbyanAuthorizedService
Dealer.
6.Stoptheengineandwaitforallmovingpartstostop.
NotUsingtheGrassBag
1.Movethemachineontoapavedsurfaceinanon-windy
area.
2.Setall4wheelstothe89mm(3-1/2inch)cutting
heightsetting.
3.Takeahalfsheetofnewspaperandcrumpleitintoa
ballsmallenoughtogounderthemachinehousing
(about3inchesor76mmindiameter).
4.Placethenewspaperballabout13cm(5inches)in
frontofthemachine.
5.Starttheengine.
6.Engagetheblade.
7.Releasetheblade-controlbarandbegincountingout3
seconds.
8.Onthecountof3,pushthemachinequicklyforward
overthenewspaper.
9.Stoptheengineandwaitforallmovingpartstostop.
10.Gotothefrontofthemachineandcheckthe
newspaperball.
Note:Ifthenewspaperballdidnotgounderthe
machine,repeatsteps4through10.
11.Ifthenewspaperisunravelledorshredded,theblades
didnotstopproperly,whichcouldresultinanunsafe
operatingcondition.ContactanAuthorizedService
Dealer.
12

Toro 20199 Specifications

General

Model Number	20199
Product Type	Lawn Mower
Power Source	Gasoline
Deck Material	Steel
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Start Type	Recoil
Cutting Width	22 inches
Fuel Capacity	1.0 quarts
Drive System	Rear-wheel drive
