AWDRearTransmissionRemoval(continued)

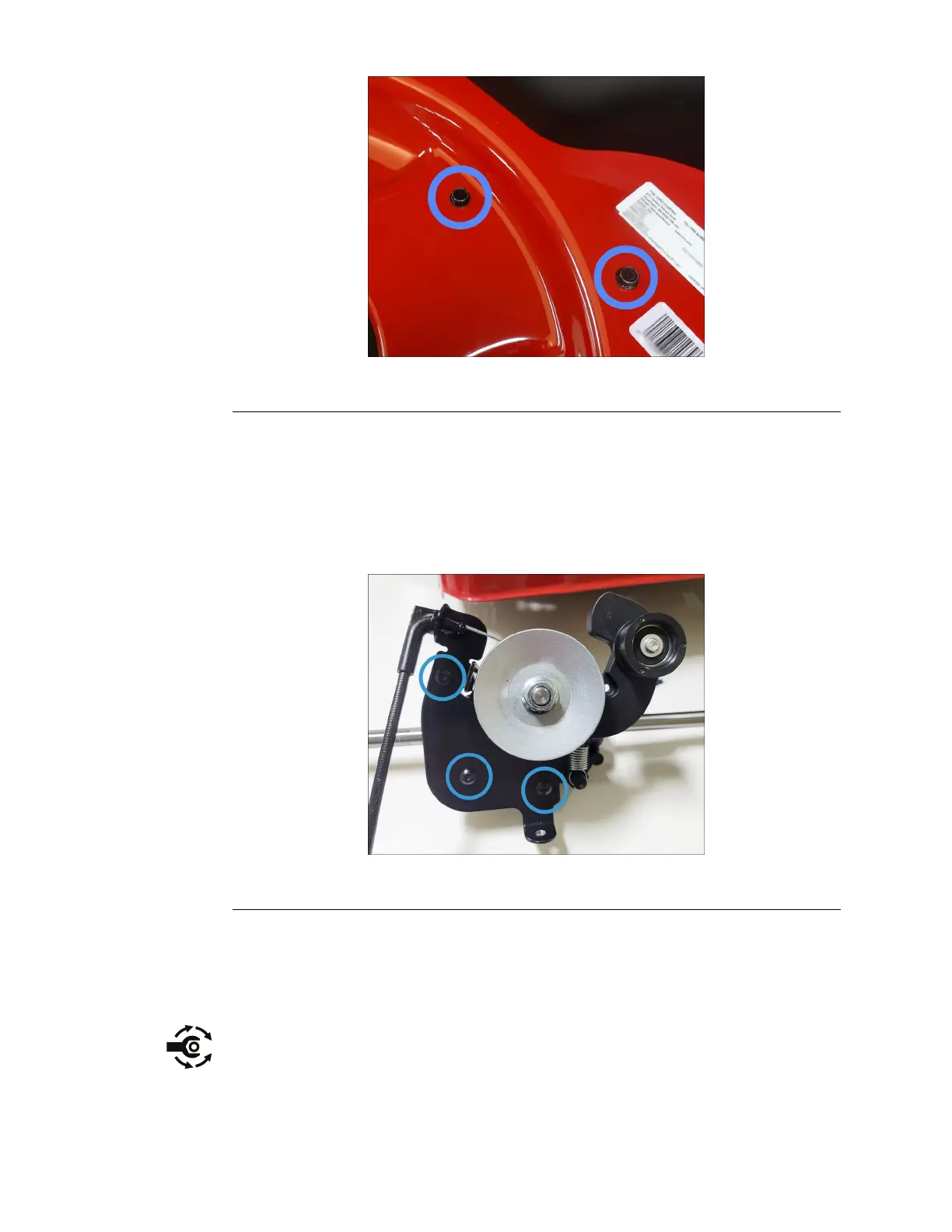

g352577
Figure140
12.Removethebeltguideguardfromthedeck.
13.Removetherearheight-of-cutplates.RearHeight-of-CutRemoval(page
6–12)
14.Removethetransmissionfromthechassiswiththebeltandcableattached.
15.UsingaR2squarebit,removethe3(#10–14)screwssecuringthebeltguide
tothetransmission.
g359966
Figure141
16.Removethetractioncableandspringfromthebeltguide.
AWDRearTransmissionInstallation
1.Installthetractioncableandspringtothebeltguide.
2.Installthebeltguidetothetransmission,securewith3(#10–14)screws.
Torquethescrewsto2.82±0.56N•m(25±5in-lbs).
