Toro 21464 - Chute Assembly Replacement

ChuteAssemblyReplacement
ChuteAssemblyRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Modelsequippedwiththe60vpowerhead,removetheharnessfrom
powerhead.
3.Modelsequippedwithelectricstartonly,removethe2(M4.2x2.0)
screwssecuringthebatterycover.Removethebatterycoverandfoampad.
Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
4.Removethegrassbaggerassemblyifattached.
5.Removetherearheight-of-cutplates.RearHeight-of-CutRemoval(page
6–12)
6.Removetherearbackdoorfromtheunit.

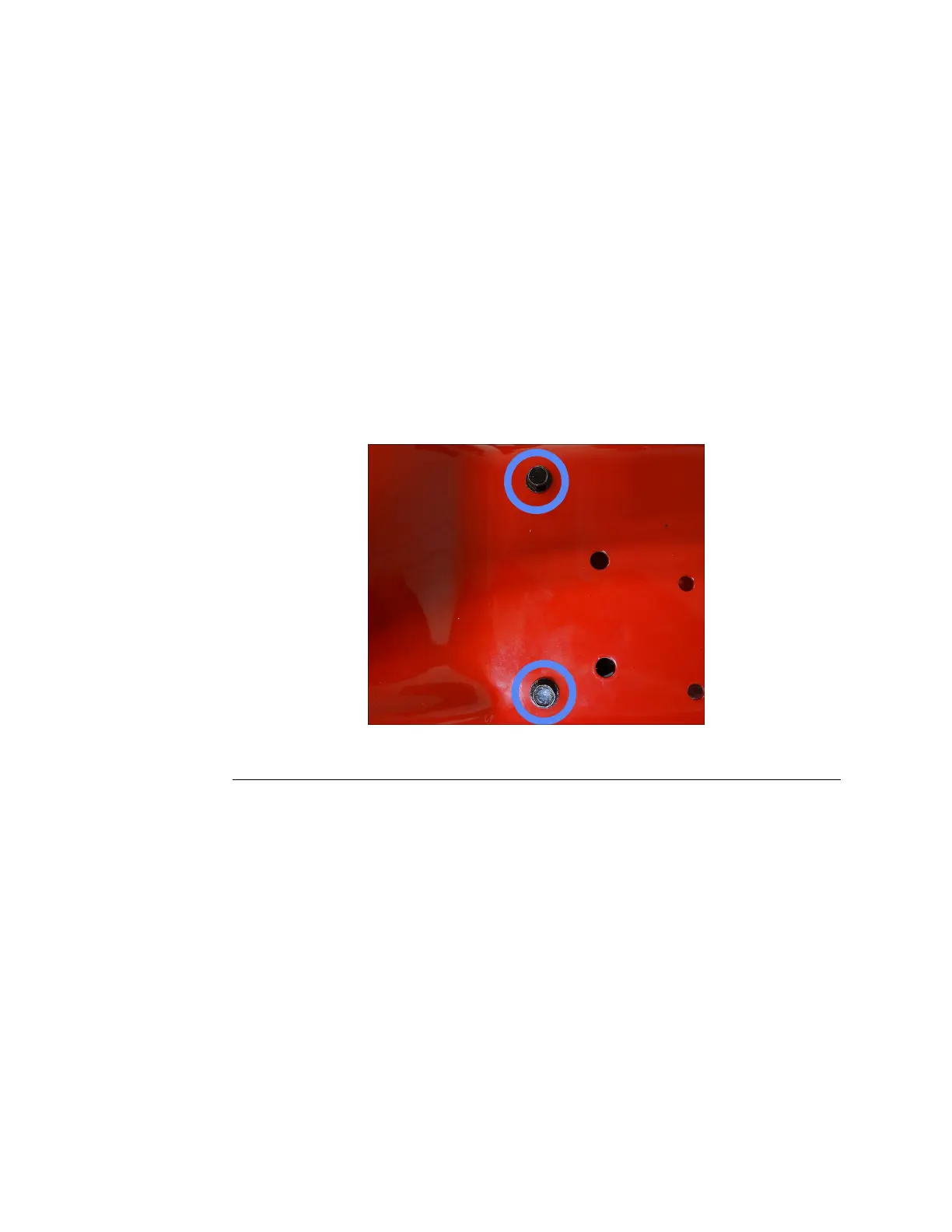

7.Removethe2(1/4–10inch)LHscrewssecuringtherearbafetothedeck.
RepeatontheRHsideoftheunit.
g352575
Figure116
8.Removethe(1/4–10inch)rearscrewsecuringthebafetothedeck.
