AWDPERSONALPACE®AssemblyReplacement
AWDPERSONALPACE®HandleAssemblyRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethegrassbaggerassemblyifattached.
3.Removetherecoilropefromtheropeguide.
4.Removethebrakecablefromthecableanchor.
5.Ata90ºangle,removethebrakecablefromthePERSONALPACE®handle.

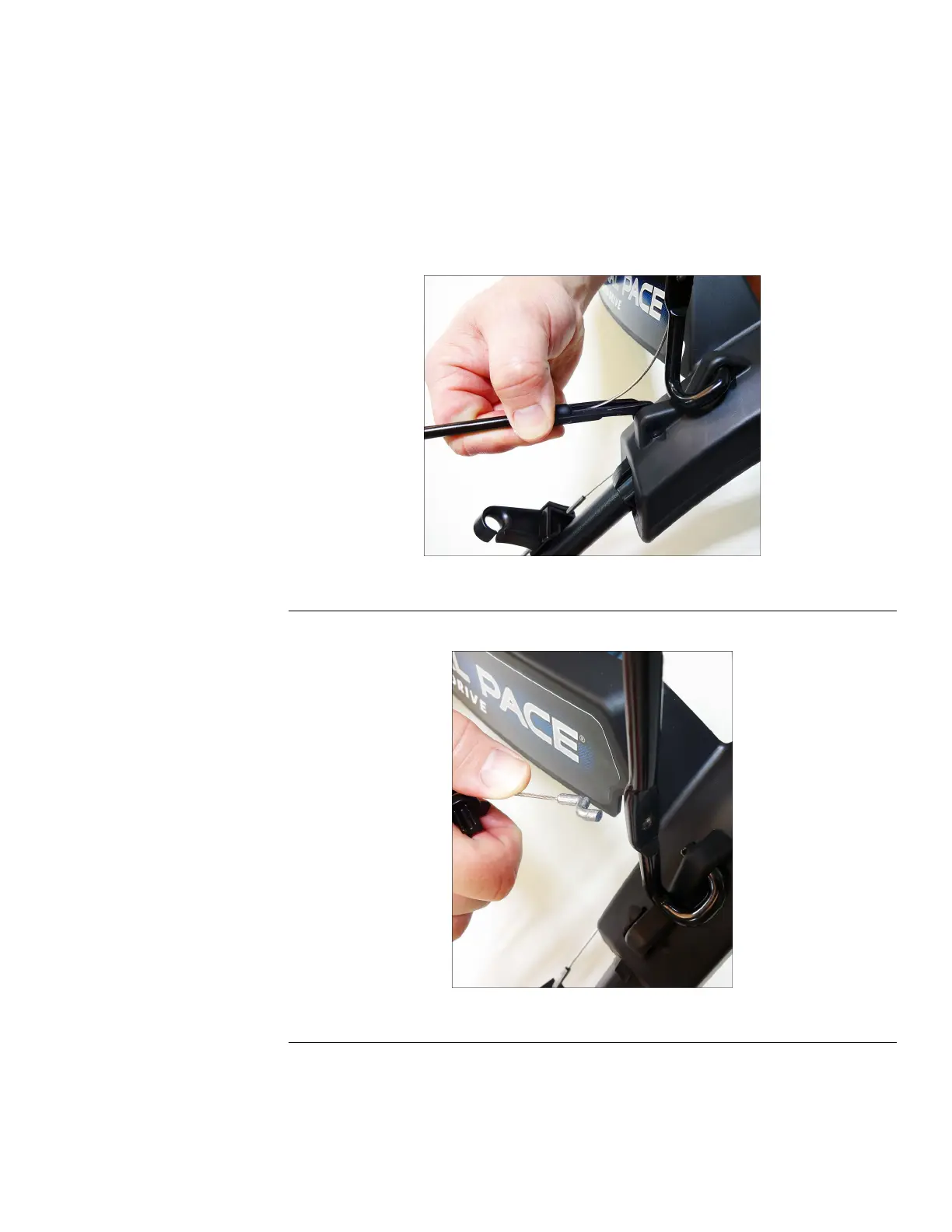

g352638
Figure64
6.Removethezbendofthebrakecablefromthebail.
g352639
Figure65
7.FromtheRHsideoftheunit,removethebailfromthePERSONALPACE®
handleassembly.
