Toro 21464 - Curved Handle Replacement (Electric Start Models Only)

CurvedHandleInstallation(Non—ElectricStartModelsOnly)(continued)

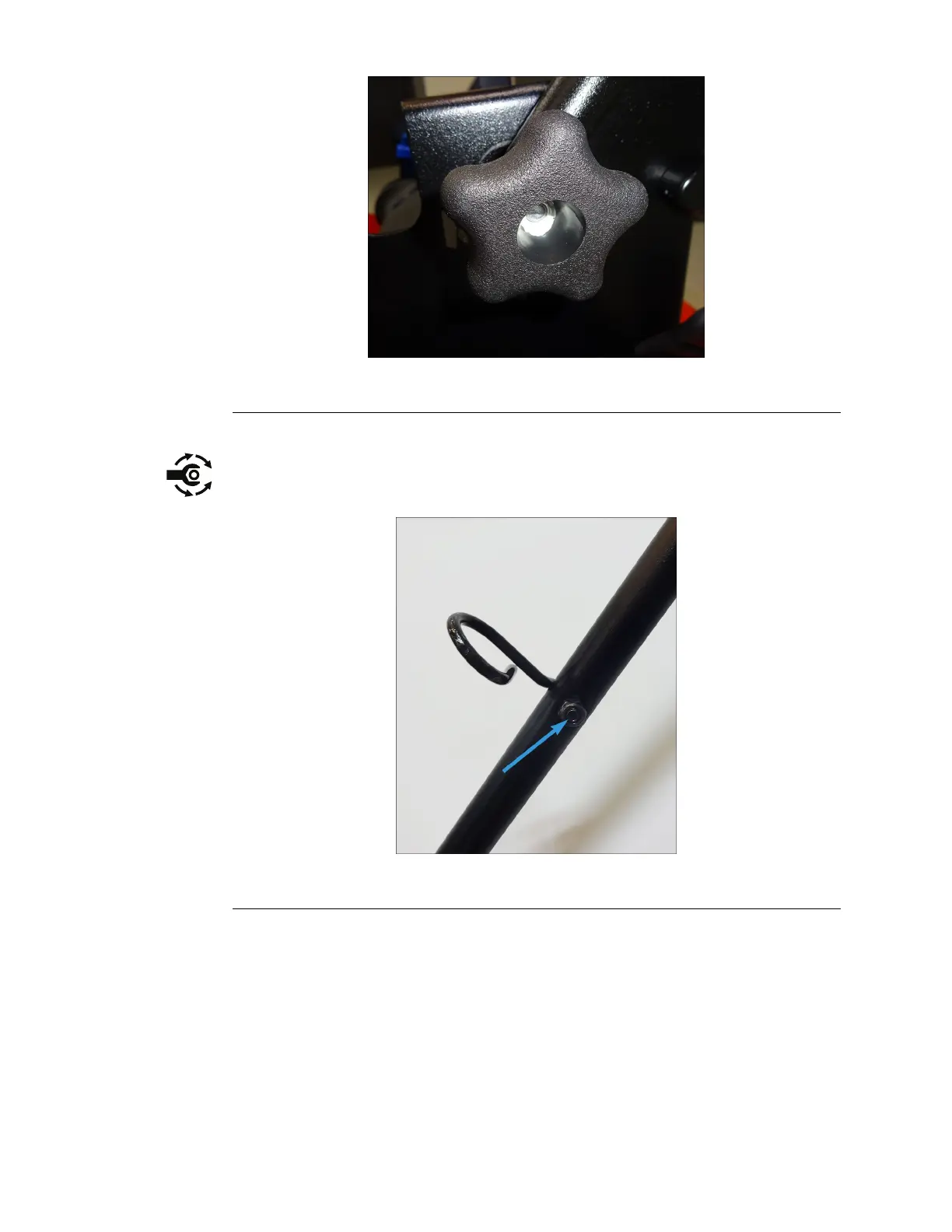

g353181
Figure81
4.Installthecableguideontothecurvedhandle.
5.Installtheropeguideontothecurvedhandle,securewithanut.Torquethe
nutto4.52±0.56N•m(40±5in-lbs).
g353180
Figure82
6.RWDmodelsonly,installtheRWDPERSONALPACE®handle.RWD
PERSONALPACE®HandleAssemblyInstallation(page5–25)
7.AWDmodelsonly,installtheAWDPERSONALPACE®handle.AWD
PERSONALPACE®HandleAssemblyInstallation(page5–34)
CurvedHandleReplacement(ElectricStartModelsOnly)
CurvedHandleRemoval(ElectricStartModelsOnly)
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
Controls:ServiceandRepairs
Page5–40
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
