AWDPERSONALPACE®HandleAssemblyRemoval(continued)
g353179

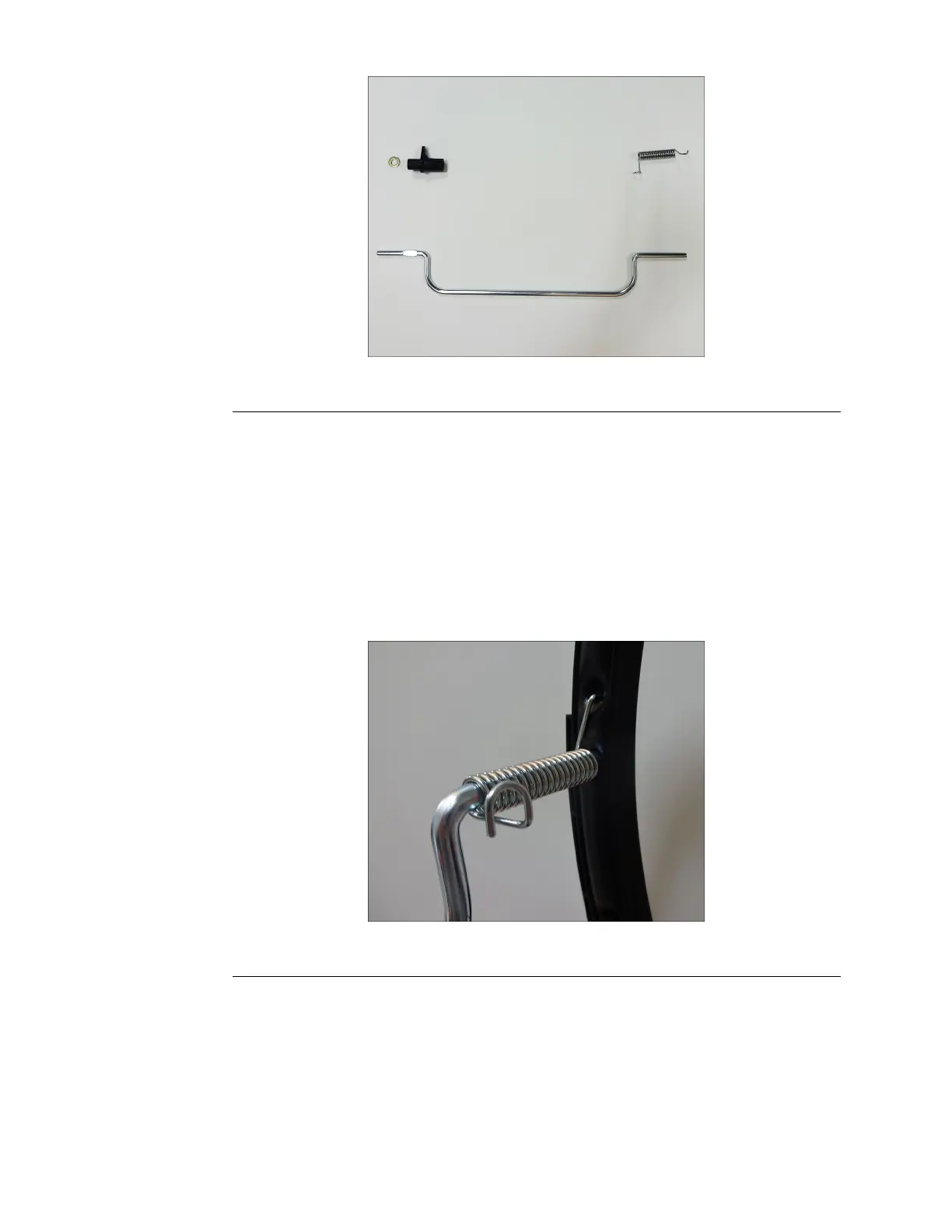

Figure70
17.RemovetheLHcurvedguidefromthecurvedhandle.
AWDPERSONALPACE®HandleAssemblyInstallation
1.InstallthetractionleverandwasherontotheLHsideofthetractionrod.
2.InstallthetorsionspringontotheRHsideofthetractionrod.
3.InstalltheLHandRHcurvedguidesontothecurvedhandle.
4.Installthetractionrodontothecurvedhandle.
5.Installthetorsionspringontothecurvedhandle.
g353082
Figure71
6.Pointthetractionleverupwardsandrotatethetractionrod3/4turnsothatthe
tractionleverispointingbackwards.InstalltheupperPERSONALPACE®
handleontothecurvedhandle.
Note:Thespringhashalfoftherotationwrapwhenfullyassembled.
7.IfthehandlepinswereremovedfromtheupperPERSONALPACE®handle,
installthehandlepins.
